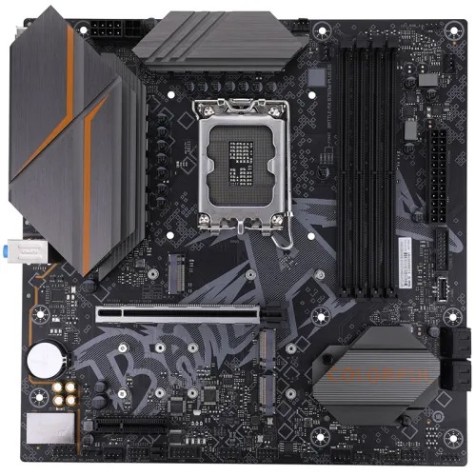

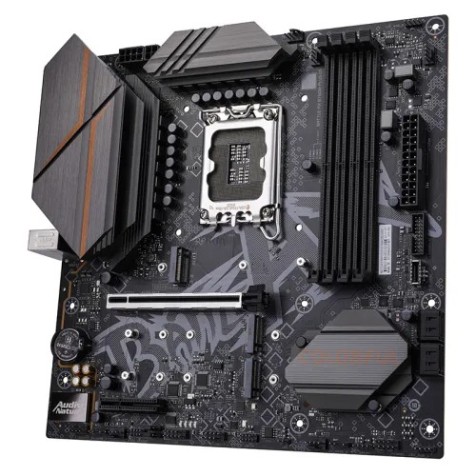

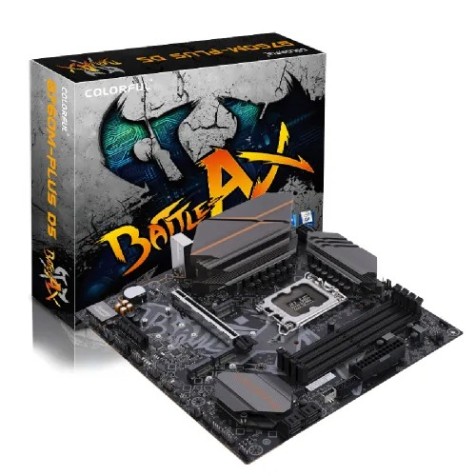

Colorful BATTLE-AX B760M-PLUS D5 V20 mATX Motherboard

Colorful BATTLE-AX B760M-PLUS D5 V20 mATX Motherboard
Colorful BATTLE-AX B760M-PLUS D5 V20 mATX Motherboard
Colorful BATTLE-AX B760M-PLUS D5 V20 mATX Motherboard
Colorful BATTLE-AX B760M-PLUS D5 V20 mATX Motherboard
-9 %
Colorful BATTLE-AX B760M-PLUS D5 V20 mATX Motherboard
Colorful BATTLE-AX B760M-PLUS D5 V20 mATX Motherboard
Colorful BATTLE-AX B760M-PLUS D5 V20 mATX Motherboard
Colorful BATTLE-AX B760M-PLUS D5 V20 mATX Motherboard
Colorful BATTLE-AX B760M-PLUS D5 V20 mATX Motherboard
  • Price: 19,210৳
  • special price: 17,500৳
  • Status: In Stock
  • Brands: Colorful
  • Model: BATTLE-AX B760M-PLUS D5 V20
Based on 0 reviews. - Write a review

Discount Price

17,500৳19,210৳
Available payment method

Monthly EMI Price

1,626৳
Ex Tax: 17,500৳
Add To Cart
Buy Now Add to Compare
Add to Wish List Compare this Product
  • CPU Support: Compatible with 12th, 13th, and 14th Gen Intel Core, Pentium, and Celeron processors (LGA1700).
  • Chipset: Intel B760 chipset for stable performance and feature-rich functionality.
  • Form Factor: Micro-ATX, 245mm x 245mm, ideal for compact and mid-size PC builds.
  • Expansion Slots: 1× PCIe 5.0 x16 slot, 1× PCIe 3.0 x4 slot for graphics and additional expansion cards.
অর্ডার করার পূর্বে কাস্টমার কেয়ার থেকে পন্যের স্টক ও ডেলিভারি সম্পর্কে জেনে নেয়ার অনুরোধ করা যাচ্ছে। প্রযুক্তি পণ্যের মূল্য অস্থিতিশীল হওয়ায় কারণে যেকোন মুহূর্তে যেকোন প্রযুক্তি পণ্যের মূল্য পরিবর্তন হতে পারে।
Basic Information
Supported CPU Support the 14th/13th and 12th generation Intel adapting to the LGA 1700 slot of the motherboard Core TM, Pentium And Cylon processor
Chipset Intel B760
Form Factor M-ATX 245mm x 245mm
Audio 5.1 Channel sound card
Expansion Slots
PCI 1xPCIe 5.0 x16 slot 1xPCIe 3.0 x4 slot
Memory
Type DDR5
Slots 4
Supported Memory - DDR5-6800 (OC)/6600 (OC)/6400 (OC)/6200 (OC)/6000 (OC)/5800 (OC)/5600 (OC)/5400 (OC)/5200 (OC)/5000 (OC)/4800MHz memory - Intel is supported Extreme Memory Profile (XMP) memory technology - supports dual channel memory technology
Maximum Memory up to 192 GB of memory (a single socket can support up to 48 GB of memory)
Graphics
Graphics Integrated Graphics Processor-Intel HD Graphics support: 1 x HDMI 2.0 interface, Up to 4K 60Hz resolution 1 x DP 1.2 interface, supporting up to 4K 60Hz resolution
Connector & Ports
HDMI 1x HDMI
Display Port (s) 1x DisplayPort
USB USB 2.0, USB 3.2 Gen 1 Type-A, and USB 3.2 Gen 2 Type-C
LAN Port RTL8125 2.5Gbit network card
Supported Storage A total of 3 M.2 slots and 4 SATA 6Gb/s hard disk interfaces are supported, - M.2_ 1 slot: support 2242/2280 M.2 SSD (PCIe 4.0 x4, CPU channel) - M.2_ 2 slots: support 2242/2260/2280 M.2 SSD (PCIe 4.0 x4, PCH channel) - M.2_ 3 slots: support 2242/2260/2280 M.2 SSD (PCIe 4.0 x4, PCH channel)
RAID Support the creation of RAID 0, RAID 1, RAID 5, and RAID 10 disk arrays using SATA hard disk devices

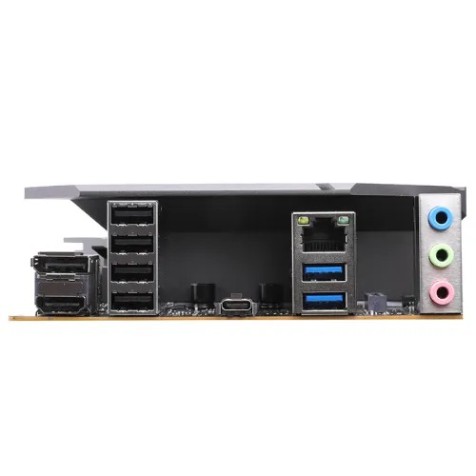

Internal I/O Ports Rear I/O interface: - 4 USB 2.0 interfaces - 2 USB 3.2 Gen 1 Type-A interfaces - 1 USB 3.2 Gen 2 Type-C interface - 1 DP 1.2 interface, supporting up to 4K 60Hz resolution - 1 HDMI 2.0 interface, Up to 4K 60Hz resolution - 1 2.5G network interface - 3 audio interfaces (audio input/audio output/microphone) Onboard device interface: - 1 CPU fan pin - 3 system fan pins - 1 water-cooled pump pin - 1 USB 2.0 pin can expand 2 USB 2.0 Type-A interfaces - 1 USB 3.2 Gen 1 pin can expand 2 USB 3.2 Gen 1 Type-A interfaces - 1 USB 3.2 Gen 1 Type-C slot can expand 1 USB 3.2 Gen 1 Type-C interface - 2 5V 3-pin ARGB pins - 2 12V 4-pin RGB pins - 1 Front audio pin - 1 Front panel pin - 1 speaker pin - 1 clear CMOS jumper - 1 serial port pin - 1 BIOS burner pin - 1 diagnostic card pin - 1 ME write protection jumper - 1 RGB lamp efficiency control jumper
TPM (Trusted Platform Module ) TPM 2.0
Others
Special Features Power Management: Support S3, S4, network S5 wake-up, regular power on and power on Hardware Monitor: CPU fan speed is controllable, system fan speed is controllable (Fan1 supports independent control, Fan2 and Fan3 share control), CPU temperature monitoring, system temperature monitoring, and each group of voltage monitoring
Warranty Information
Manufacturing Warranty 3 years

Colorful BATTLE-AX B760M-PLUS D5 V20 mATX Motherboard

The  Colorful BATTLE-AX B760M-PLUS D5 V20 mATX Motherboard is a high-performance, feature-packed motherboard designed for gamers, PC enthusiasts, and productivity users who demand speed, stability, and expandability. Supporting 12th, 13th, and 14th Gen Intel Core, Pentium, and Celeron processors with the LGA1700 socket, it leverages Intel’s latest technologies to deliver exceptional computing performance for gaming, multitasking, and professional workloads. Built on the Intel B760 chipset, this micro-ATX motherboard measures 245mm x 245mm, combining compact form factor with robust functionality. It supports DDR5 memory up to 6800 MHz (OC) across four slots, with a maximum capacity of 192GB, ensuring high-speed memory performance and compatibility with Intel XMP profiles for effortless overclocking. Dual-channel memory support further enhances system responsiveness. The Motherboard features a PCIe 5.0 x16 slot for next-generation graphics cards and a PCIe 3.0 x4 slot for additional expansion. Storage options include 3× M.2 slots and 4× SATA 6Gb/s ports, supporting RAID 0, 1, 5, and 10 configurations for versatile storage setups. Integrated Intel HD graphics are available through HDMI 2.0 and DisplayPort 1.2, both supporting up to 4K at 60Hz, making it suitable for high-resolution displays. Connectivity is comprehensive with 2.5G LAN, multiple USB 2.0 and USB 3.2 ports including Type-C, and onboard headers for ARGB, RGB, front panel audio, and USB expansion. Cooling is well supported with CPU, system, and water pump fan headers. Additional features include a diagnostic card pin, BIOS burner, and ME write protection for advanced system management. With 5.1-channel audio, efficient thermal and power design, and a 3-year manufacturing warranty, the Colorful BATTLE-AX B760M-PLUS D5 V20 mATX Motherboard delivers reliability, speed, and expandability, making it a perfect choice for building high-performance Intel-based gaming or productivity PCs.

Feaatures of Colorful BATTLE-AX B760M-PLUS D5 V20 mATX Motherboard

  • Supports 12th, 13th & 14th Gen Intel Core, Pentium, and Celeron processors (LGA1700).
  • Built on Intel B760 chipset with micro-ATX form factor (245mm x 245mm).
  • 4× DDR5 DIMM slots, up to 192GB, supporting speeds up to 6800 MHz (OC) and Intel XMP.
  • PCIe 5.0 x16 slot for graphics and PCIe 3.0 x4 for additional expansion.
  • Storage: 3× M.2 slots and 4× SATA 6Gb/s ports with RAID 0/1/5/10 support.
  • Integrated Intel HD Graphics via HDMI 2.0 and DisplayPort 1.2, up to 4K 60Hz.
  • 2.5G LAN with high-speed networking and multiple USB 2.0, USB 3.2 Gen1 Type-A & Type-C ports.
  • Onboard headers for ARGB, RGB, front panel audio, and USB expansion.
  • CPU, system, and water pump fan headers for optimal cooling.
  • 5.1-channel audio for immersive sound experience.
  • Advanced features: diagnostic card pin, BIOS burner, ME write protection jumper.
  • Backed by 3 years manufacturing warranty.
