AMD Ryzen™ 1000, 2000, 3000, 4000 G-Series, and 5000 Series processors
Graphics : HDMI and D-Sub (VGA) outputs for use with AMD Ryzen APUs with Radeon Graphics
Compact Micro-ATX Form Factor
Supported Ram: 2× DIMM slots supporting up to 64GB DDR4 RAM
অর্ডার করার পূর্বে কাস্টমার কেয়ার থেকে পন্যের স্টক ও ডেলিভারি সম্পর্কে জেনে নেয়ার অনুরোধ করা যাচ্ছে। প্রযুক্তি পণ্যের মূল্য অস্থিতিশীল হওয়ায় কারণে যেকোন মুহূর্তে যেকোন প্রযুক্তি পণ্যের মূল্য পরিবর্তন হতে পারে।
Realtek Audio CODEC
High Definition Audio
2/4/5.1/7.1-channel
Expansion Slots
PCI
CPU: 1 x PCI Express x16 slot, supporting PCIe 3.0 and running at x16
Chipset: 1 x PCI Express x1 slot, supporting PCIe 2.0 and running at x1
Memory
Type
DDR4
Slots
2 x DIMM
Supported Memory
Support for DDR4 3600(O.C.)/ 3466(O.C.)/ 2933/ 2667/ 2400/ 2133 MHz memory modules
Dual channel memory architecture
Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)
Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
Support for Extreme Memory Profile (XMP) memory modules
Maximum Memory
64 GB (32 GB single DIMM capacity)
Graphics
Graphics
Integrated Graphics Processor:
1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz
* Support for HDMI 2.0 version and HDCP 2.2.
Connector & Ports
HDMI
1 x HDMI port
Display Port (s)
N/A
USB
Chipset:
2 x USB 3.2 Gen 1 ports available through the internal USB header
6 x USB 2.0/1.1 ports (2 ports on the back panel, 4 ports available through the internal USB headers)
CPU:
4 x USB 3.2 Gen 1 ports on the back panel
LAN Port
Realtek GbE LAN chip (1 Gbps/ 100 Mbps)
Supported Storage
1 x M.2 connector (Socket 3, M key, type 22110/2280/2260/2242 SATA and PCIe 3.0 x4/x2(Note) SSD support)
* Refer to "2-7 Internal Connectors," for the installation notices for the M.2 connector.
4 x SATA 6Gb/s connectors
RAID
RAID 0, RAID 1, and RAID 10 support for NVMe SSD storage devices
RAID 0, RAID 1, and RAID 10 support for SATA storage devices
Internal I/O Ports
1 x 24-pin ATX main power connector
1 x 8-pin ATX 12V power connector
1 x CPU fan header
1 x system fan header
1 x M.2 Socket 3 connector
4 x SATA 6Gb/s connectors
1 x front panel header
1 x front panel audio header
1 x USB 3.2 Gen 1 header
2 x USB 2.0/1.1 headers
1 x speaker header
1 x Clear CMOS jumper
1 x chassis intrusion header
TPM (Trusted Platform Module )
1 x Trusted Platform Module (TPM) header (2x6 pin, for the GC-TPM2.0_S module only)
Others
Special Features
Support for APP Center
* Available applications in APP Center may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications.
@BIOS
EasyTune
Smart Backup
System Information Viewer
Support for Q-Flash
Support for Xpress Install
Warranty Information
Manufacturing Warranty
3 years

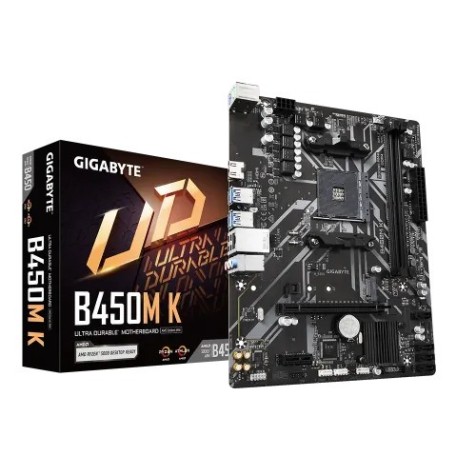

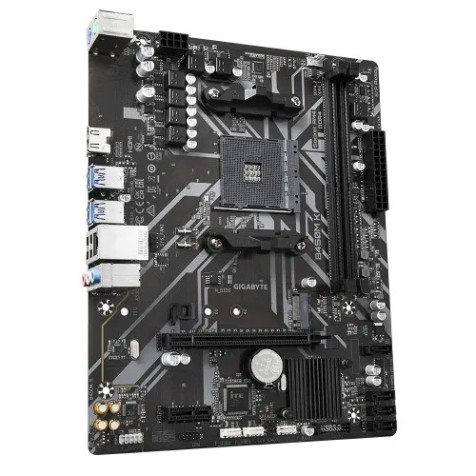

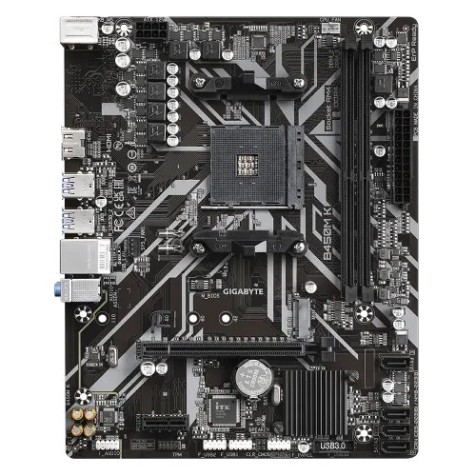

GIGABYTE B450M K AMD AM4 Micro ATX Motherboard
The GIGABYTE B450M Kis a compact and efficient Micro ATX motherboard designed for AMD Ryzen processors, built on the reliable AMD B450 chipset. It supports AMD Ryzen 1st, 2nd, 3rd, and Ryzen 5000 series processors with the AM4 socket, making it an excellent choice for budget to mid-range gaming and productivity builds. This board supports up to 64GB of DDR4 memory through two DIMM slots, with memory speeds up to 3200 MHz (OC). It features one PCIe x16 slot for a graphics card and one PCIe x1 slot for expansion, offering flexibility for GPU and add-on cards. In terms of storage, the B450M K includes a high-speed M.2 slot (PCIe Gen3 x4/SATA) for NVMe SSDs and four SATA III ports for traditional drives. For display output, it offers both HDMI and D-Sub (VGA) ports, supporting integrated graphics from compatible Ryzen APUs. Connectivity is solid with USB 3.2 Gen 1 and USB 2.0 ports, Realtek Gigabit LAN, and high-definition audio powered by the Realtek ALC887 codec. GIGABYTE’s Ultra Durable components and solid capacitors ensure long-term stability and reliability, while protection features like anti-surge and humidity protection add extra safety. With support for Smart Fan 5, the motherboard also provides advanced fan controls for efficient and quiet cooling. Its Micro ATX form factor makes it ideal for compact PC cases without compromising on essential features. Whether you're building a budget gaming rig, a home office setup, or a multimedia PC, the GIGABYTE B450M K offers excellent value, stable performance, and trusted build quality from a leading motherboard manufacturer.
