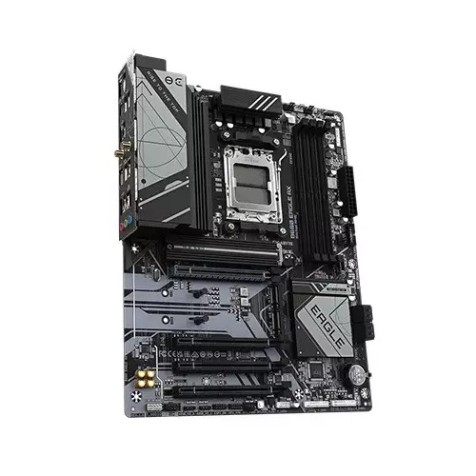

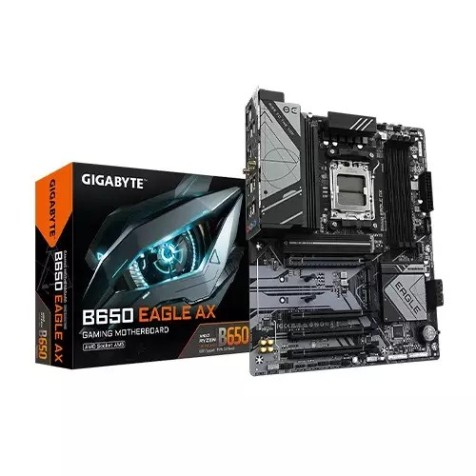

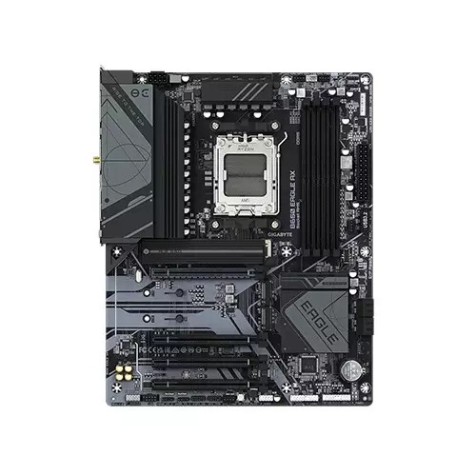

GIGABYTE B650 EAGLE AX DDR5 Motherboard

GIGABYTE B650 EAGLE AX DDR5 Motherboard
GIGABYTE B650 EAGLE AX DDR5 Motherboard
GIGABYTE B650 EAGLE AX DDR5 Motherboard
GIGABYTE B650 EAGLE AX DDR5 Motherboard
-21 %
GIGABYTE B650 EAGLE AX DDR5 Motherboard
GIGABYTE B650 EAGLE AX DDR5 Motherboard
GIGABYTE B650 EAGLE AX DDR5 Motherboard
GIGABYTE B650 EAGLE AX DDR5 Motherboard
GIGABYTE B650 EAGLE AX DDR5 Motherboard
  • Price: 33,000৳
  • special price: 26,000৳
  • Status: In Stock
  • Brands: Gigabyte
  • Model: B650 EAGLE AX
Based on 0 reviews. - Write a review

Discount Price

26,000৳33,000৳
Available payment method

Monthly EMI Price

2,416৳
Ex Tax: 26,000৳
Add To Cart
Buy Now Add to Compare
Add to Wish List Compare this Product
  • AMD Ryzen™ 7000, 8000, and 9000 Series processors
  • DDR5 memory, allowing for a total of 192GB of RAM
  • PCIe 5.0 x4 M.2 connector
  • Bluetooth 5.3, Realtek 2.5GbE LAN
অর্ডার করার পূর্বে কাস্টমার কেয়ার থেকে পন্যের স্টক ও ডেলিভারি সম্পর্কে জেনে নেয়ার অনুরোধ করা যাচ্ছে। প্রযুক্তি পণ্যের মূল্য অস্থিতিশীল হওয়ায় কারণে যেকোন মুহূর্তে যেকোন প্রযুক্তি পণ্যের মূল্য পরিবর্তন হতে পারে।
Basic Information
Supported CPU AMD Socket AM5, support for: AMD Ryzen 8000/ 7000 Series Processors
Chipset AMD B650
Form Factor ATX Form Factor; 30.5cm x 24.4cm
Audio Realtek Audio CODEC High Definition Audio 2/4/5.1/7.1-channel * You can change the functionality of an audio jack using the audio software. To configure 7.1-channel audio, access the audio software for audio settings.
Expansion Slots
PCI 1 x PCI Express x16 slot (PCIEX16), integrated in the CPU: - AMD Ryzen 7000 Series Processors support PCIe 4.0 x16 mode - AMD Ryzen 8000 Series-Phoenix 1 Processors support PCIe 4.0 x8 mode - AMD Ryzen 8000 Series-Phoenix 2 Processors support PCIe 4.0 x4 mode * The PCIEX16 slot can only support a graphics card or an NVMe SSD. If only one graphics card is to be installed, be sure to install it in the PCIEX16 slot. 2 x PCI Express x16 slots (PCIEX1_1/PCIEX1_2), integrated in the CPU, supporting PCIe 3.0 and running at x1 * The PCIEX1_1 and PCIEX1_2 slots become unavailable when an AMD Ryzen™ 8000 Series-Phoenix 2 processor is used. 1 x PCI Express x16 slot (PCIEX1_3), integrated in the Chipset, supporting PCIe 3.0 and running at x1
Memory
Type DDR5
Slots 4 DIMMs
Supported Memory 7600(OC)/ 7200(OC)/ 7000(OC)/ 6800(OC)/ 6600(OC)/ 6400(OC)/ 6200(OC)/ 6000(OC)/ 5600(OC)/ 5200/ 4800/ 4400 MT/s memory modules Dual channel memory architecture Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules Support for AMD EXtended Profiles for Overclocking (AMD EXPO™) and Extreme Memory Profile (XMP) memory modules (The CPU and memory configuration may affect the supported memory types, data rate (speed), and number of DRAM modules, please refer to "Memory Support List" on GIGABYTE's website for more information.)
Maximum Memory 192GB
Graphics
Graphics Integrated Graphics Processor with AMD Radeon™ Graphics support: - 1 x DisplayPort, supporting a maximum resolution of 3840x2160@144 Hz * Support for DisplayPort 1.4 version. - 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz * Support for HDMI 2.1 version and HDCP 2.3. ** Support for native HDMI 2.1 TMDS compatible ports. (Graphics specifications may vary depending on CPU support.)
Connector & Ports
HDMI 1x HDMI
Display Port (s) 1 x DisplayPorts
USB CPU: - 2 x USB 3.2 Gen 2 Type-A ports (red) on the back panel - 1 x USB Type-C port on the back panel, with USB 3.2 Gen 1 support CPU+USB 2.0 Hub: - 4 x USB 2.0/1.1 ports on the back panel Chipset: - 2 x USB 3.2 Gen 1 ports available through the internal USB header - 1 x USB Type-C port with USB 3.2 Gen 1 support, available through the internal USB header - 4 x USB 2.0/1.1 ports (2 ports on the back panel, 2 ports available through the internal USB header) Chipset+USB 2.0 Hub: - 4 x USB 2.0/1.1 ports available through the internal USB headers
LAN Port Realtek GbE LAN chip (1 Gbps/100 Mbps/10 Mbps)
Supported Storage 1 x M.2 connector (M2A_CPU), integrated in the CPU, supporting Socket 3, M key, type 25110/22110/2580/2280 SSDs: - AMD Ryzen 7000 Series Processors support PCIe 5.0 x4/x2 SSDs - AMD Ryzen 8000 Series-Phoenix 1 Processors support PCIe 4.0 x4/x2 SSDs - AMD Ryzen 8000 Series-Phoenix 2 Processors support PCIe 4.0 x4/x2 SSDs 1 x M.2 connector (M2P_CPU), integrated in the CPU, supporting Socket 3, M key, type 22110/2280 SSDs: - AMD Ryzen 7000 Series Processors support PCIe 4.0 x2 SSDs - AMD Ryzen 8000 Series-Phoenix 1 Processors support PCIe 4.0 x2 SSDs - AMD Ryzen 8000 Series-Phoenix 2 Processors support PCIe 4.0 x2 SSDs 1 x M.2 connector (M2C_SB), integrated in the Chipset, supporting Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSD support) 4 x SATA 6Gb/s connectors
RAID RAID 0, RAID 1, and RAID 10 support for NVMe SSD storage devices RAID 0, RAID 1, and RAID 10 support for SATA storage devices

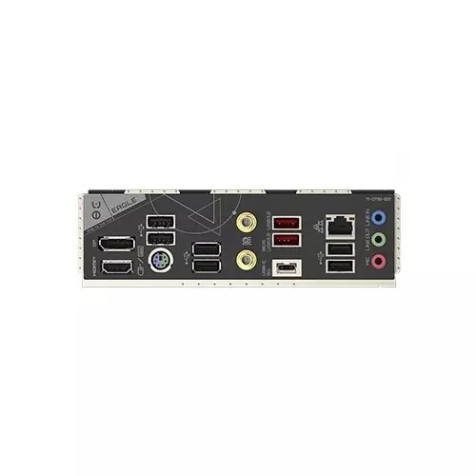

Internal I/O Ports Internal I/O Connectors 1 x 24-pin ATX main power connector 1 x 8-pin ATX 12V power connector 1 x CPU fan header 1 x CPU fan/water cooling pump header 2 x system fan headers 1 x system fan/water cooling pump header 3 x addressable RGB Gen2 LED strip headers 1 x RGB LED strip header 3 x M.2 Socket 3 connectors 4 x SATA 6Gb/s connectors 1 x front panel header 1 x front panel audio header 1 x USB Type-C header, with USB 3.2 Gen 1 support 1 x USB 3.2 Gen 1 header 3 x USB 2.0/1.1 headers 1 x Q-Flash Plus button 1 x serial port header j 1 x Clear CMOS jumper Back Panel Connectors 1 x DisplayPort 1 x HDMI port 1 x PS/2 keyboard/mouse port 2 x SMA antenna connectors (2T2R) 1 x USB Type-C port, with USB 3.2 Gen 1 support 2 x USB 3.2 Gen 2 Type-A ports (red) 6 x USB 2.0/1.1 ports 1 x RJ-45 port 3 x audio jacks
TPM (Trusted Platform Module ) 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0/GC-TPM2.0 SPI V2 module only)
Others
Special Features Support for GIGABYTE Control Center (GCC) * Available applications in GCC may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications. Support for Q-Flash Support for Q-Flash Plus
Warranty Information
Manufacturing Warranty 3 Years

GIGABYTE B650 EAGLE AX DDR5 Motherboard


The GIGABYTE B650 EAGLE AX is a DDR5 ATX motherboard that offers an excellent blend of features and value for the AMD AM5 platform. Designed to support the latest AMD Ryzen™ 7000, 8000, and 9000 Series processors, it's an ideal choice for building a high-performance gaming PC or a versatile workstation. The board features a Twin Digital 8+2+1 Phases VRM Solution, providing stable and efficient power delivery to the CPU, ensuring optimal performance under various loads. For memory, the B650 EAGLE AX supports the latest DDR5 standard, with four DIMM slots supporting dual-channel memory. It can handle up to 192GB of RAM, and with overclocking, it supports speeds up to 8000 MT/s and beyond. It is compatible with both AMD EXPO™ and Intel® XMP memory profiles, making it easy to unlock maximum memory performance. Storage and expansion options are a key strength. The board includes three M.2 connectors, with one supporting the blazing-fast PCIe 5.0 x4 standard for next-gen NVMe SSDs, while the other two are PCIe 4.0. The inclusion of an M.2 Thermal Guard helps prevent SSD throttling. Connectivity is a major highlight, as indicated by its name. It features integrated Wi-Fi 6E and Bluetooth 5.3 for high-speed wireless networking. A Realtek 2.5GbE LAN port provides a reliable wired connection. With a full-length PCIe 4.0 x16 slot and a variety of I/O ports, including USB Type-C, the B650 EAGLE AX provides a robust and well-rounded foundation for a powerful and future-proof PC build. Its durable design and user-friendly features like Q-Flash Plus make it a reliable and easy-to-manage motherboard.


Features of  GIGABYTE B650 EAGLE AX


  • AMD AM5 Socket Support: It's compatible with the latest AMD Ryzen™ 7000, 8000, and 9000 Series processors, providing a versatile foundation for a modern build.
  • DDR5 Memory: The board supports DDR5 memory with four DIMM slots, allowing for a total of 192GB of RAM. It also supports high-speed overclocking, with speeds reaching up to 8000 MT/s and is compatible with both AMD EXPO™ and Intel® XMP memory profiles.
  • Next-Gen Storage: A key feature is its inclusion of three M.2 connectors, with one supporting the cutting-edge PCIe 5.0 x4 standard for the fastest available NVMe SSDs. The other two are PCIe 4.0, providing ample high-speed storage capacity. An M.2 Thermal Guard is also included to prevent SSD throttling.
  • Networking: The board has integrated Wi-Fi 6E and Bluetooth 5.3 for fast wireless connectivity on the 2.4, 5, and 6 GHz bands. It also has a Realtek 2.5GbE LAN port for a reliable, high-speed wired connection.
  • Power Design: It features a robust Twin Digital 8+2+1 Phases VRM Solution that provides stable and reliable power delivery to the CPU for optimal performance and stability.
  • User-Friendly Features: GIGABYTE has included several features to simplify the building and maintenance process. These include Q-Flash Plus, which lets you update the BIOS without a CPU or RAM, and Smart Fan 6 for precise and customizable cooling control. The EZ-Latch on the PCIe x16 slot simplifies graphics card installation and removal.
