Latest AMD Ryzen 7000, 8000, and 9000 Series desktop CPUs
অর্ডার করার পূর্বে কাস্টমার কেয়ার থেকে পন্যের স্টক ও ডেলিভারি সম্পর্কে জেনে নেয়ার অনুরোধ করা যাচ্ছে। প্রযুক্তি পণ্যের মূল্য অস্থিতিশীল হওয়ায় কারণে যেকোন মুহূর্তে যেকোন প্রযুক্তি পণ্যের মূল্য পরিবর্তন হতে পারে।
AMD Socket AM5, support for: AMD Ryzen 8000 & 7000 Series Processors
Chipset
AMD B650
Form Factor
Micro ATX Form Factor; 24.4cm x 24.4cm
Audio
Realtek Audio CODEC
High Definition Audio
2/4/5.1/7.1-channel
Expansion Slots
PCI
CPU:
1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x16
Chipset:
1 x PCI Express x1 slot, supporting PCIe 3.0 and running at x1
Memory
Type
DDR5
Slots
4 DIMMs
Supported Memory
Support for DDR5 8000(OC)/ 7800(OC)/ 7600(OC)/ 7200(OC)/ 7000(OC)/ 6800(OC)/ 6600(OC)/ 6400(OC)/ 6200(OC)/ 6000(OC)/ 5600(OC)/ 5200/ 4800 MT/s memory modules
Dual channel memory architecture
Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
Support for AMD EXtended Profiles for Overclocking (AMD EXPO™) and Extreme Memory Profile (XMP) memory modules
Maximum Memory
192 GB
Graphics
Graphics
1 x DisplayPort, supporting a maximum resolution of 3840x2160@144 Hz
* Support for DisplayPort 1.4 version.
1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz
* Support for HDMI 2.1 version and HDCP 2.3.
** Support native HDMI 2.1 TMDS compatible ports.
Connector & Ports
HDMI
1x HDMI
Display Port (s)
1 x DisplayPorts
USB
CPU:
1 x USB Type-C port on the back panel, with USB 3.2 Gen 2 support
1 x USB 3.2 Gen 2 Type-A port (red) on the back panel
2 x USB 2.0/1.1 ports on the back panel
Chipset:
1 x USB Type-C port with USB 3.2 Gen 1 support, available through the internal USB header
4 x USB 3.2 Gen 1 ports (2 ports on the back panel, 2 ports available through the internal USB header)
4 x USB 2.0/1.1 ports (2 ports on the back panel, 2 ports available through the internal USB header)
LAN Port
Realtek 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps)
Supported Storage
CPU:
1 x M.2 connector (Socket 3, M key, type 2580 PCIe 4.0 x4/x2 SSD support)
1 x M.2 connector (Socket 3, M key, type 25110/2280 PCIe 4.0 x4/x2 SSD support)
Chipset:
4 x SATA 6Gb/s connectors
RAID
RAID 0, RAID 1, and RAID 10 support for NVMe SSD storage devices
RAID 0, RAID 1, and RAID 10 support for SATA storage devices
Internal I/O Ports
1 x 24-pin ATX main power connector
1 x 8-pin ATX 12V power connector
1 x CPU fan header
2 x system fan headers
1 x addressable LED strip header
1 x RGB LED strip header
2 x M.2 Socket 3 connectors
4 x SATA 6Gb/s connectors
1 x front panel header
1 x front panel audio header
1 x USB Type-C® header, with USB 3.2 Gen 1 support
1 x USB 3.2 Gen 1 header
1 x USB 2.0/1.1 header
1 x reset jumper
1 x Clear CMOS jumper
TPM (Trusted Platform Module )
1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module only)
Others
Special Features
Support for GIGABYTE Control Center (GCC)
* Available applications in GCC may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications.
Support for Q-Flash
Support for Q-Flash Plus
Warranty Information
Manufacturing Warranty
3 Years

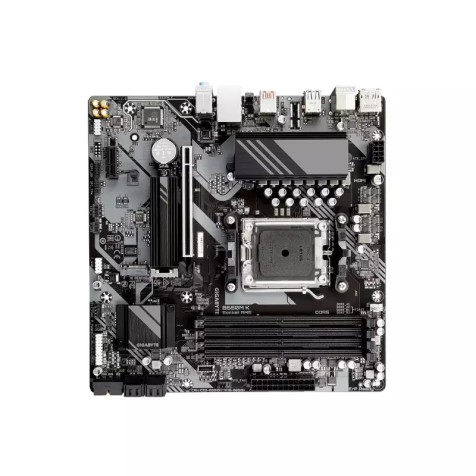

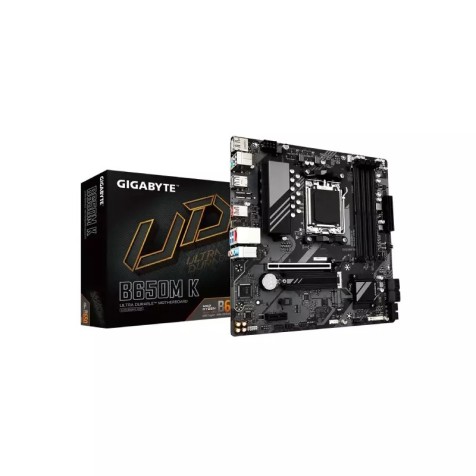

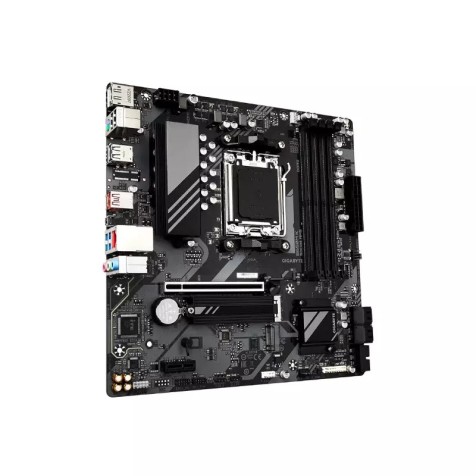

GIGABYTE B650M K AMD AM5 Micro-ATX Motherboard
The GIGABYTE B650M K is a Micro-ATX motherboard that provides a robust and reliable foundation for building a compact, performance-oriented AMD system. Designed with the AMD B650 chipset, it is ready to support the latest AMD Ryzen 7000, 8000, and 9000 Series desktop processors, ensuring it can power both gaming rigs and professional workstations. This motherboard focuses on delivering essential, high-quality features that matter most to users, offering a great balance of performance and value. The B650M K is engineered with a stable digital VRM power design, ensuring clean and efficient power delivery to the CPU, even under heavy loads. It supports DDR5 memory with two DIMM slots, allowing for a total capacity of up to 96GB and impressive overclocked speeds up to 7600+ MHz (OC). This provides the high bandwidth necessary for modern games and content creation. For storage, the board includes two M.2 slots, both supporting lightning-fast PCIe 4.0 x4 NVMe SSDs, alongside four SATA 6Gb/s ports for traditional storage options. Connectivity is solid with a Realtek 2.5G LAN port for a secure, high-speed wired network connection. The motherboard also includes a reinforced PCIe 4.0 x16 slot, which adds durability and supports heavy graphics cards. With its clean aesthetic and a focus on core performance, the GIGABYTE B650M K is a dependable and cost-effective choice for builders who want to create a powerful, no-frills system without compromising on quality or essential features.
Features of GIGABYTE B650M K
AMD AM5 Socket Support: It's compatible with AMD Ryzen™ 7000, 8000, and 9000 Series desktop processors.
DDR5 Memory: The motherboard has two DDR5 DIMM slots, supporting a maximum of 96GB of memory. It allows for overclocked speeds of up to 7600+ MHz (OC), which is great for performance-sensitive tasks.
Hybrid Digital VRM: It uses a digital VRM power design, providing stable and efficient power delivery to the CPU, ensuring reliability and consistent performance.
PCIe 4.0 Storage: The motherboard includes two M.2 slots, both supporting PCIe 4.0 x4 for high-speed NVMe SSDs.
SATA Ports: It is equipped with four SATA 6Gb/s ports for connecting traditional hard drives or SATA SSDs.
2.5G LAN: A Realtek 2.5G LAN port provides a high-speed and stable wired network connection, which is beneficial for online gaming and large file transfers.
USB Ports: It offers a range of USB ports, including a front USB 3.2 Gen1 header and a rear USB 3.2 Gen2 Type-A port (10Gbps).
Reinforced PCIe Slot: The main PCIe 4.0 x16 slot is reinforced with a durable design to support the weight of heavy graphics cards.
Q-Flash Plus: This convenient feature allows you to update the BIOS without needing to install a CPU, memory, or graphics card, which is great for new builds and troubleshooting.
Smart Fan 6: GIGABYTE's Smart Fan 6 is included, providing multiple temperature sensors and hybrid fan headers for precise control over your system's cooling.
Ez-Latch: The primary PCIe x16 slot includes a quick-release latch to simplify the installation and removal of a graphics card.
