Gigabyte GeForce RTX 5080 WINDFORCE OC SFF 16G GDDR7 Graphics Card
The Gigabyte GeForce RTX 5080 WINDFORCE OC SFF 16G redefines high-performance graphics within compact builds, combining NVIDIA's latest Blackwell architecture with impressive engineering finesse. Equipped with a whopping 16 GB of GDDR7 memory on a 256‑bit interface, it delivers blazing-fast 30 Gbps memory bandwidth and a massive 960 GB/s throughput, ensuring seamless high-resolution gaming and creative workflows. Built for elite performance, the card is factory-overclocked to reach a boost clock of 2670 MHz, surpassing the reference of 2617 MHz, and boasts 10,752 CUDA cores, powered by fifth-gen Tensor and fourth-gen RT cores for advanced rendering, ray tracing, and AI acceleration with DLSS 4 and Reflex 2. Widely praised for its thermal and acoustic efficiency, the WINDFORCE cooling system packs triple Hawk fans, a large vapor chamber, copper heat pipes, 3D Active Fans, server-grade thermal conductive gel, graphene nano-lubricant, and screen cooling. Silent and effective, this setup excels under intensive loads. Practical for compact builds, the GPU is NVIDIA SFF-ready, includes dual BIOS (Performance/Silent), and features a reinforced structure with a versatile VGA holder for anti-sag support . Connectivity includes 3× DisplayPort 2.1 and 1× HDMI 2.1, supporting up to 8K resolution and up to four-display setups . Built on PCIe 5.0, with DirectX 12 Ultimate and NVIDIA Studio support, this card bridges the gap between gaming prowess and creative productivity.
Features of Gigabyte GeForce RTX 5080 WINDFORCE OC SFF 16G
Small Form Factor (SFF) Design: This is the card's most notable feature. It's built to comply with NVIDIA's SFF specification, allowing it to fit into more compact PC cases without compromising on performance. Its dimensions are L=304 W=126 H=50 mm.
GPU & Architecture: It's powered by the NVIDIA GeForce RTX 5080, featuring the Blackwell architecture. It includes 4th-gen Ray Tracing Cores and 5th-gen Tensor Cores for enhanced performance in ray tracing and AI applications.
Memory: The card is equipped with 16GB of GDDR7 memory on a 256-bit memory bus, providing a fast memory clock of 30 Gbps. This is crucial for handling high-resolution textures and demanding workloads.
Clock Speed: It comes with a factory overclock, boasting a boost clock of up to 2670 MHz, which is higher than the reference clock.
WINDFORCE Cooling System: To manage heat in a smaller design, Gigabyte employs its WINDFORCE cooling system, which includes:

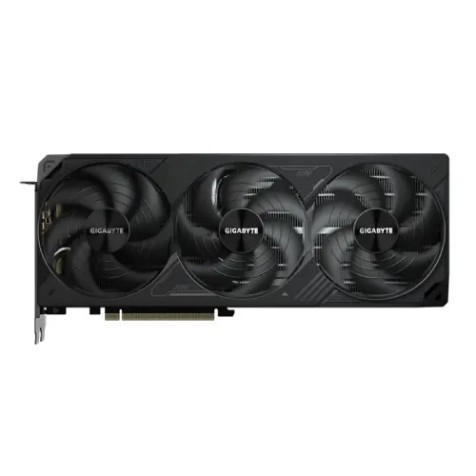

Hawk Fans: Features a triple-fan design with a unique blade shape and alternate spinning to maximize airflow and reduce turbulence.
Server-grade thermal conductive gel: This high-quality thermal gel is used on critical components like VRAM and MOSFETs to ensure efficient heat transfer.
Large Vapor Chamber and Composite Heat Pipes: A large vapor chamber directly contacts the GPU, and composite copper heat pipes quickly transfer heat to the heatsink for dissipation.
Dual BIOS: A physical switch on the card allows users to toggle between two modes: Performance and Silent, giving them the flexibility to prioritize performance or quieter operation.

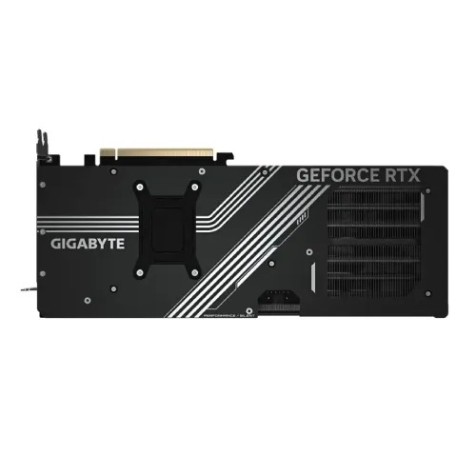

Reinforced Structure: The card features a reinforced metal backplate with a bent edge, which provides enhanced structural integrity to prevent sagging.

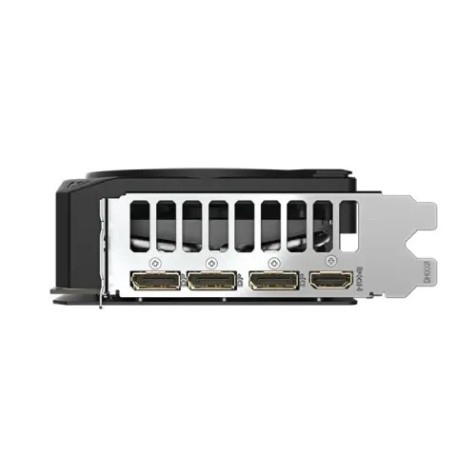

Power and Connectivity: It utilizes a single 16-pin power connector and a recommended PSU of 850W. For display output, it includes three DisplayPort 2.1b and one HDMI 2.1b port, supporting a maximum digital resolution of 7680x4320.
