Supports Intel 12th & 13th Gen Processors ,LGA 1700 socket
2× DIMM slots, supporting up to 64GB (up to 4800 MHz)
Display Outputs: Integrated graphics support with HDMI and D-Sub (VGA) ports
GIGABYTE Ultra Durable design with solid capacitors
অর্ডার করার পূর্বে কাস্টমার কেয়ার থেকে পন্যের স্টক ও ডেলিভারি সম্পর্কে জেনে নেয়ার অনুরোধ করা যাচ্ছে। প্রযুক্তি পণ্যের মূল্য অস্থিতিশীল হওয়ায় কারণে যেকোন মুহূর্তে যেকোন প্রযুক্তি পণ্যের মূল্য পরিবর্তন হতে পারে।
LGA1700 socket: Support for the 14th, 13th, and 12th Generation Intel Core, Pentium Gold and Celeron Processors
L3 cache varies with CPU
Chipset
Intel H610 Express Chipset
Form Factor
Micro ATX Form Factor; 23.0cm x 21.5cm
Audio
Realtek Audio CODEC
High Definition Audio
2/4/5.1/7.1-channel
Expansion Slots
PCI
CPU:
1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x16
Chipset:
1 x PCI Express x1 slot, supporting PCIe 3.0 and running at x1
Memory
Type
DDR5
Slots
2
Supported Memory
Support for DDR5 7600(O.C.) / 7400(O.C.) / 7200(O.C.) / 7000(O.C.) / 6800(O.C.) / 6600(O.C.) / 6400(O.C.) / 6200(O.C.) / 6000(O.C.) / 5800(O.C.) / 5600(O.C.) / 5400(O.C.) / 5200(O.C.) / 4800 / 4000 MT/s memory modules
Dual channel memory architecture
Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)
Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
Support for Extreme Memory Profile (XMP) memory modules
Maximum Memory
up to 64 GB (32 GB single DIMM capacity) of system memory
Graphics
Graphics
Integrated Graphics Processor-Intel® HD Graphics support:
1 x D-Sub port, supporting a maximum resolution of 1920x1200@60 Hz
1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz
Support for HDMI 2.1 version and HDCP 2.3.
Support native HDMI 2.1 TMDS compatible ports
(Graphics specifications may vary depending on CPU support.)
Connector & Ports
HDMI
1x HDMI
Display Port (s)
one DisplayPort (1.2) and an HDMI 2.1 port
USB
Chipset:
4 x USB 3.2 Gen 1 ports (2 ports on the back panel, 2 ports available through the internal USB header)
4 x USB 2.0/1.1 ports on the back panel
Chipset+USB 2.0 Hub:
4 x USB 2.0/1.1 ports available through the internal USB headers
LAN Port
Realtek GbE LAN chip (1 Gbps/100 Mbps)
Supported Storage
Chipset:
1 x M.2 connector (Socket 3, M key, type 2280/2260 PCIe 3.0 x4/x2 SSD support)
4 x SATA 6Gb/s connectors
RAID
N/A
Internal I/O Ports
1 x 24-pin ATX main power connector
1 x 8-pin ATX 12V power connector
1 x CPU fan header
2 x system fan headers
1 x M.2 Socket 3 connector
4 x SATA 6Gb/s connectors
1 x RGB LED strip header
1 x front panel header
1 x front panel audio header
1 x USB 3.2 Gen 1 header
2 x USB 2.0/1.1 headers
1 x serial port header
1 x Clear CMOS jumper
TPM (Trusted Platform Module )
1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module only)
Others
Special Features
Support for APP Center
Support for Q-Flash
Support for Xpress Install
Warranty Information
Manufacturing Warranty
3 years

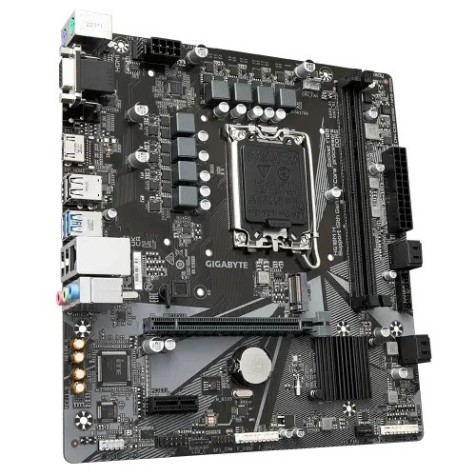

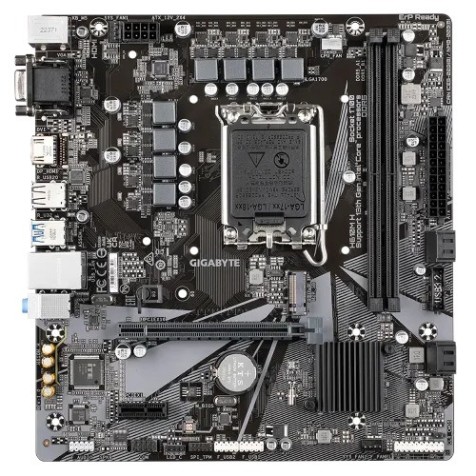

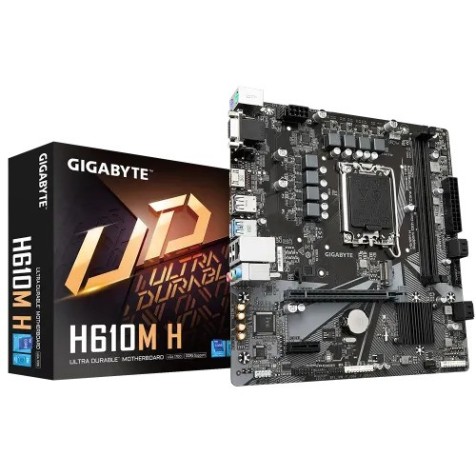

GIGABYTE H610M H DDR5 mATX Motherboard
The GIGABYTE H610M H DDR5 is a compact and efficient micro-ATX motherboard built for Intel’s 12th and 13th Gen Core processors. Featuring the Intel H610 chipset and support for the LGA 1700 socket, this board provides a reliable and budget-friendly foundation for entry-level gaming, home, and office PCs. One of the standout features of the H610M H is its support for DDR5 memory, enabling faster data transfer, lower power consumption, and improved performance compared to DDR4. With 2 DIMM slots, it supports up to 64GB of DDR5 RAM, making it ready for future workloads and multitasking demands. Designed with everyday computing in mind, the motherboard includes one PCIe 4.0 x16 slot for graphics cards and one PCIe 3.0 x1 slot for expansion cards. For storage, it offers an M.2 slot (PCIe Gen3 x4) for high-speed NVMe SSDs, along with four SATA III ports for HDDs and SSDs. Connectivity includes multiple USB 3.2 Gen 1 and USB 2.0 ports, along with HDMI and D-Sub (VGA) video outputs for integrated graphics. The board also features Realtek Gigabit LAN for fast and stable internet connectivity and an 8-channel HD audio codec for clear sound output. With GIGABYTE’s Ultra Durable components, including solid capacitors and surge-protected power design, the H610M H is built to last. It also features Smart Fan 6 support, enabling efficient thermal control for quiet operation. Whether you're building a budget-friendly workstation or a basic gaming rig, the GIGABYTE H610M H DDR5 motherboard delivers modern performance, essential features, and solid build quality in a compact mATX form factor.
