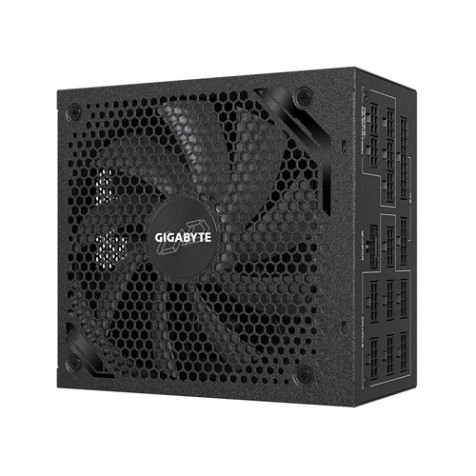

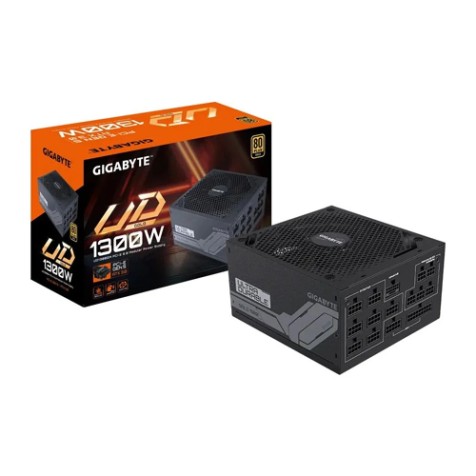

Gigabyte UD1300GM PG5 1300w 80 Plus Gold ATX Power Supply
The Gigabyte UD1300GM PG5 is a high-wattage, 1300W power supply unit (PSU) engineered to meet the extreme power demands of top-tier gaming rigs and professional workstations. As part of Gigabyte's Ultra Durable series, this PSU is built with a focus on robust performance, high efficiency, and the latest hardware compatibility, making it an excellent choice for enthusiast-level PC builds. A key feature of the UD1300GM PG5 is its exceptional power output of 1300 watts, providing more than enough headroom for systems running the most powerful CPUs and multiple high-end graphics cards. Its efficiency is certified with an 80 PLUS Gold rating, which guarantees a minimum efficiency of 90% at 50% load. This high efficiency ensures minimal energy is wasted as heat, contributing to a cooler, more stable system and lower electricity costs. The PSU is also built with high-quality, 100% Japanese capacitors, a hallmark of premium PSUs that ensures superior reliability and a long lifespan. The UD1300GM PG5 is designed with the future in mind, featuring full ATX 3.0 and PCIe 5.0 compliance. This is a critical feature for anyone building a PC with a modern, power-hungry GPU. The PSU comes with a native 16-pin 12VHPWR connector (also known as PG5), capable of delivering up to 600W to a single graphics card. This eliminates the need for bulky and often problematic adapters, providing a clean and reliable power solution for the latest NVIDIA RTX 40 series GPUs. While it’s not fully modular, the UD1300GM PG5 is still designed with builder convenience in mind. Its robust build quality and a powerful 120mm fan ensure it can handle extreme loads with confidence. Backed by a strong warranty, this PSU is a serious contender for builders who refuse to compromise on power or reliability.
Features of Gigabyte UD1300GM PG5
- Massive Power Output: Provides a continuous output of 1300 watts, which is ideal for extreme gaming rigs, workstations with multiple GPUs, or systems with high-end CPUs that demand significant power.
- High Efficiency: It holds an 80 PLUS Gold certification, guaranteeing a minimum of 87-90% efficiency at various load levels. This high efficiency translates to less energy waste, lower electricity costs, and reduced heat generation.
- ATX 3.0 & PCIe 5.0 Ready: The PSU is fully compliant with the latest industry standards, ensuring it can handle transient power spikes (up to 200% of its rated power) from modern components.
- Native 16-pin 12VHPWR Connector (PG5): A key feature for powering the latest high-end graphics cards (e.g., NVIDIA RTX 4090) with a single cable that can deliver up to 600W. This provides a cleaner and more reliable power connection than using adapters.
- 100% Japanese Capacitors: Built with high-quality Japanese capacitors, which are known for their long life and excellent electrical performance under high temperatures, ensuring stability and durability.
- Robust Protections: It includes a full suite of electrical protections to safeguard your hardware from damage: Over Voltage Protection (OVP), Over Power Protection (OPP), Short Circuit Protection (SCP), Under Voltage Protection (UVP), Over Temperature Protection (OTP), Over Current Protection (OCP)

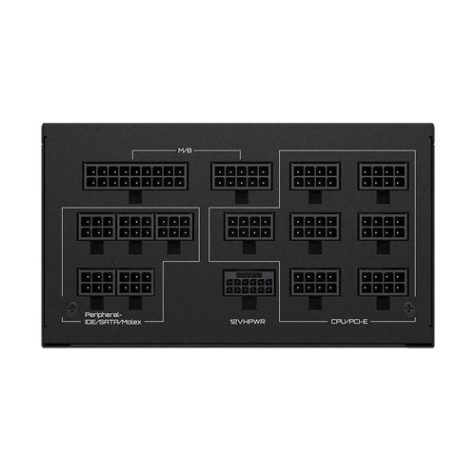

- Cabling: The PSU is a semi-modular or non-modular design, with a few key cables (like the 24-pin ATX and 8-pin CPU) permanently attached while others (like PCIe, SATA) are modular. This is a compromise between affordability and cable management.
- Cooling: It uses a fan to maintain optimal temperatures. The fan is likely a larger size (e.g., 120mm or 140mm) to handle the heat from the high-wattage components.
- Warranty: Backed by a strong warranty (check with the retailer, but Gigabyte typically offers a 5 to 10-year warranty on its higher-end PSUs).
