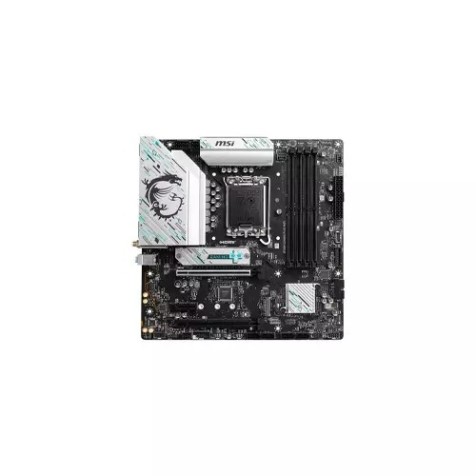

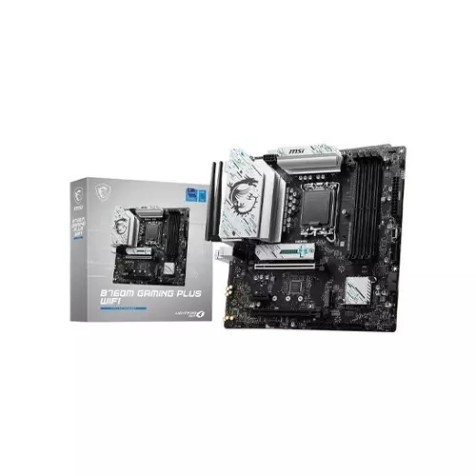

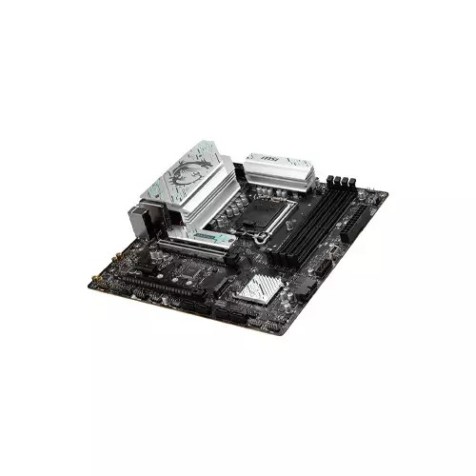

MSI B760M GAMING PLUS WIFI DDR5 ATX Motherboard

MSI B760M GAMING PLUS WIFI DDR5 ATX Motherboard
MSI B760M GAMING PLUS WIFI DDR5 ATX Motherboard
MSI B760M GAMING PLUS WIFI DDR5 ATX Motherboard
MSI B760M GAMING PLUS WIFI DDR5 ATX Motherboard
-13 %
MSI B760M GAMING PLUS WIFI DDR5 ATX Motherboard
MSI B760M GAMING PLUS WIFI DDR5 ATX Motherboard
MSI B760M GAMING PLUS WIFI DDR5 ATX Motherboard
MSI B760M GAMING PLUS WIFI DDR5 ATX Motherboard
MSI B760M GAMING PLUS WIFI DDR5 ATX Motherboard
  • Price: 22,000৳
  • special price: 19,200৳
  • Status: In Stock
  • Model: B760M GAMING PLUS WIFI
Based on 0 reviews. - Write a review

Discount Price

19,200৳22,000৳
Available payment method

Monthly EMI Price

1,784৳
Ex Tax: 19,200৳
Add To Cart
Buy Now Add to Compare
Add to Wish List Compare this Product
  • LGA 1700 Socket
  • DDR5 memory, with overclocked speeds of up to 6800+
  • Wi-Fi 6E, Realtek 2.5GbE LAN , Bluetooth 5.3.
  • PCIe 4.0 x4 M.2 slots
অর্ডার করার পূর্বে কাস্টমার কেয়ার থেকে পন্যের স্টক ও ডেলিভারি সম্পর্কে জেনে নেয়ার অনুরোধ করা যাচ্ছে। প্রযুক্তি পণ্যের মূল্য অস্থিতিশীল হওয়ায় কারণে যেকোন মুহূর্তে যেকোন প্রযুক্তি পণ্যের মূল্য পরিবর্তন হতে পারে।
Basic Information
Supported CPU Supports 14th/13th/12th Gen Intel Core Processors, Pentium Gold and Celeron Processors LGA1700
Chipset INTEL B760
Form Factor ATX 243.84mmx304.8mm
Audio Realtek ALC897 Codec 7.1-Channel High Definition Audio Supports S/PDIF output
Expansion Slots
PCI 5x PCI-E x16 slot PCI_E1 Gen PCIe 4.0 supports up to x16 (From CPU) PCI_E2 Gen PCIe 3.0 supports up to x1 (From Chipset) PCI_E3 Gen PCIe 4.0 supports up to x4 (From Chipset) PCI_E4 Gen PCIe 3.0 supports up to x1 (From Chipset) PCI_E5 Gen PCIe 3.0 supports up to x1 (From Chipset)
Memory
Type DDR5
Slots 4
Supported Memory Memory Support DDR5 6800+(OC)/ 6600(OC)/ 6400(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(JEDEC)/ 5400(JEDEC)/ 5200(JEDEC)/ 5000(JEDEC)/ 4800(JEDEC) MHz Max. overclocking frequency: • 1DPC 1R Max speed up to 6800+ MHz • 1DPC 2R Max speed up to 6400+ MHz • 2DPC 1R Max speed up to 6000+ MHz • 2DPC 2R Max speed up to 5600+ MHz Supports Intel XMP 3.0 OC Supports Dual-Controller Dual-Channel mode Supports non-ECC, un-buffered memory
Maximum Memory 192GB
Graphics
Graphics 1x HDMI Support HDMI 2.1 with HDR, maximum resolution of 4K 60Hz 1x DisplayPort Support DP 1.4, maximum resolution of 4K 60Hz
Connector & Ports
HDMI 1x HDMI
Display Port (s) 1x DisplayPort

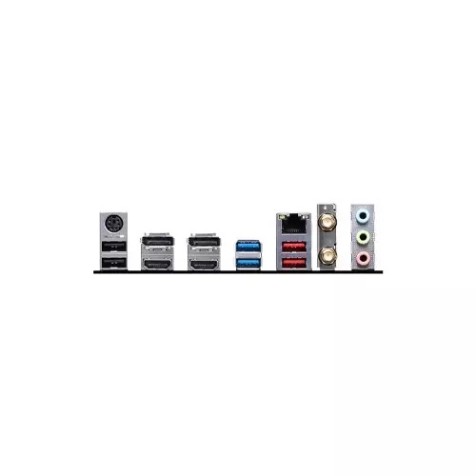

USB 4x USB 2.0 (Rear) 4x USB 2.0 (Front) 2x USB 3.2 Gen1 Type A (Front) 1x USB 3.2 Gen1 Type C (Front) 2x USB 3.2 Gen2 Type A (Rear) 1x USB 3.2 Gen2 Type C (Rear)
LAN Port Realtek RTL8125BG 2.5G LAN
Supported Storage 2x M.2 M.2_1 Source (From CPU) supports up to PCIe 4.0 x4 , supports 22110/2280/2260/2242 devices M.2_2 Source (From Chipset) supports up to PCIe 4.0 x4 / SATA mode, supports 2280/2260/2242 devices 4x SATA 6G
RAID Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices
Internal I/O Ports 1x Power Connector(ATX_PWR) 2x Power Connector(CPU_PWR) 1x CPU Fan 1x Pump Fan 5x System Fan 2x Front Panel (JFP) 1x Chassis Intrusion (JCI) 1x Front Audio (JAUD) 1x Printer Port (JLPT) 1x Com Port (JCOM) 1x TBT connector (JTBT, supports RTD3) 2x Addressable V2 RGB LED connector (JARGB_V2) 1x RGB LED connector(JRGB) 4x USB 2.0 ports 2x USB 3.2 Gen1 Type A ports 1x USB 3.2 Gen1 Type C ports
TPM (Trusted Platform Module ) 1x TPM pin header(Support TPM 2.0)
Others
Special Features 4x EZ Debug LED
Warranty Information
Manufacturing Warranty 3 years

MSI B760M GAMING PLUS WIFI DDR5 ATX Motherboard


The MSI B760M GAMING PLUS WIFI is a Micro ATX motherboard designed to provide a solid gaming foundation for Intel's LGA 1700 platform. It's fully compatible with 12th, 13th, and 14th Gen Intel Core processors, making it a versatile and cost-effective choice for a gaming or productivity PC. This board stands out by combining essential gaming features with the benefits of a more compact form factor. A key highlight is its support for DDR5 memory. With four DIMM slots, it can handle up to 192GB of RAM and supports high-speed overclocking, with speeds reaching an impressive 7000+ MT/s. The board's Memory Boost technology ensures stable and reliable memory performance, which is crucial for gaming. For storage, the B760M GAMING PLUS WIFI offers two M.2 Gen4 x4 slots for high-speed NVMe SSDs, both with MSI's M.2 Shield Frozr heatsinks to prevent thermal throttling. It also includes four SATA 6Gb/s ports for additional storage drives. Connectivity is a major strength, as its name suggests. The board is equipped with integrated Wi-Fi 6E and Bluetooth 5.3, offering high-speed wireless networking on the 2.4, 5, and 6 GHz bands. A Realtek 2.5GbE LAN port provides a fast and stable wired connection. It also features a pre-installed I/O shield, a Flash BIOS Button for easy BIOS updates, and a comprehensive set of diagnostic LEDs (EZ Debug LED), making the building and troubleshooting process significantly easier. Its stylish design and robust feature set make it a top contender for a mid-range gaming build.


Features of MSI B760M GAMING PLUS WIFI


  • CPU Support: It is compatible with 12th, 13th, and 14th Gen Intel Core processors, as well as Pentium Gold and Celeron processors.
  • DDR5 Memory: The board features four DIMM slots, supporting up to 192GB of DDR5 memory with overclocked speeds of up to 6800+ MHz.
  • Networking: It comes with integrated Wi-Fi 6E and Bluetooth 5.3, providing high-speed wireless connectivity on the 2.4, 5, and 6 GHz bands. It also has a Realtek 2.5GbE LAN port for a fast and stable wired connection.
  • Storage: The motherboard offers two PCIe 4.0 x4 M.2 slots for high-speed NVMe SSDs, both with M.2 Shield Frozr to prevent thermal throttling. It also includes four SATA 6Gb/s ports.
  • Expansion Slots: It features a reinforced PCIe 4.0 x16 slot for graphics cards and additional PCIe slots for other expansion cards.
  • Power Design: It has a 12+1+1 Duet Rail Power System with a digital PWM IC and MSI's Core Boost technology, which ensures stable power delivery for high-performance CPUs.
  • Cooling: It includes an extended heatsink, M.2 Shield Frozr, and pump fan support to ensure the system stays cool under load.
  • User-Friendly Features: The board has a pre-installed I/O shield, EZ Debug LED for easy troubleshooting, and a Flash BIOS Button that allows you to update the BIOS without a CPU, RAM, or graphics card.
