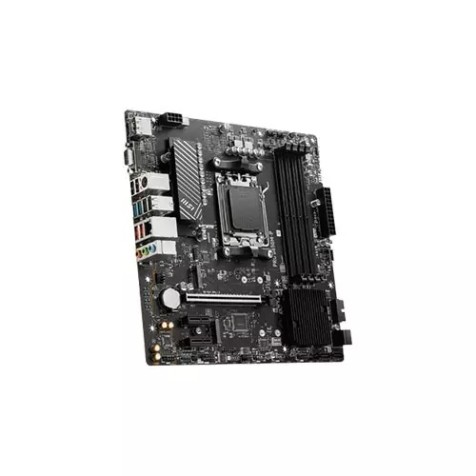

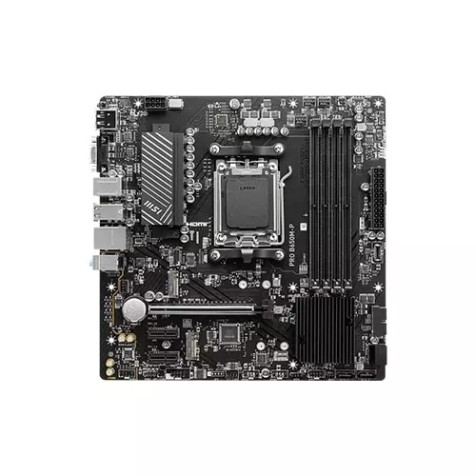

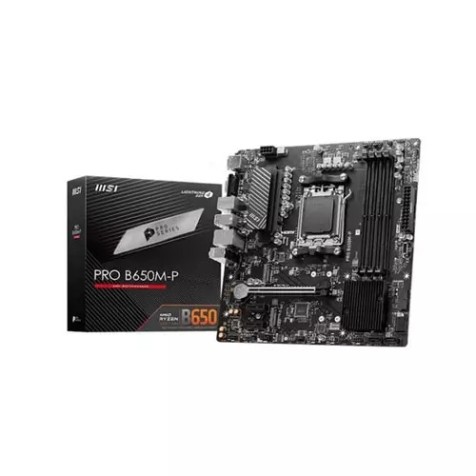

MSI PRO B650M-P DDR5 AMD AM5 mATX Motherboard
The MSI PRO B650M-P is a Micro-ATX motherboard designed to offer a solid and reliable foundation for budget-conscious builders entering the AMD AM5 platform. Built with the AMD B650 chipset, it supports a wide range of AMD Ryzen 7000, 8000, and 9000 Series desktop processors, ensuring it is ready for the latest in CPU technology. This motherboard is a testament to MSI's PRO series, which focuses on providing a stable, efficient, and durable platform for productivity and everyday computing tasks. Despite its compact size and accessible price point, the B650M-P is packed with modern features. It supports DDR5 memory, with four DIMM slots allowing for a maximum capacity of 192GB and blazing-fast overclocked speeds up to 7200+ MHz. This enables exceptional performance for multitasking and memory-intensive applications. For storage, it provides two M.2 slots, both supporting PCIe 4.0 x4 for lightning-fast NVMe SSDs, alongside four SATA 6G ports for traditional storage drives. The board is also equipped with a 2.5G LAN for a secure, stable, and fast network connection, ideal for gaming and streaming. Durability is a key aspect of its design, featuring a 6-layer PCB made with 2oz thickened copper to enhance reliability and provide better signal purity. The inclusion of a PCIe 4.0 x16 slot with Steel Armor protects heavy graphics cards from bending and EMI. With a clean, all-black aesthetic and a range of connectivity options, including a front-panel USB Type-C port and multiple USB 3.2 Gen2 ports, the MSI PRO B650M-P is a versatile and cost-effective choice for building a powerful and efficient micro-ATX system.
Features of MSI PRO B650M-P
- Socket AM5 Support: It supports AMD Ryzen™ 7000, 8000, and 9000 Series desktop processors, providing access to the latest AMD CPU technology.
- DDR5 Memory: Equipped with four DDR5 DIMM slots, it supports a maximum memory capacity of 192GB with impressive overclocked speeds up to 7200+ MHz (OC), enabling fast and efficient multitasking. It also supports AMD EXPO™ profiles for easy memory overclocking.
- PCIe 4.0 for Storage: The motherboard features two M.2 slots, both supporting PCIe 4.0 x4, for high-speed NVMe SSDs.
- SATA Ports: It includes four SATA 6G ports for connecting traditional hard drives or SATA SSDs.
- High-Speed Networking: A Realtek 8125BG 2.5G LAN provides a fast, stable, and reliable wired network connection, ideal for gaming and large file transfers.

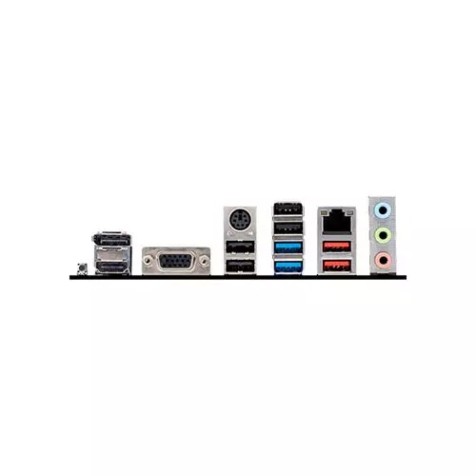

- Versatile USB Ports: The board offers a variety of USB ports, including multiple USB 3.2 Gen2 Type-A ports (10Gbps) on the rear, a front USB 3.2 Gen2 Type-C header (10Gbps), and a number of USB 3.2 Gen1 and USB 2.0 ports.
- 6-Layer PCB: The motherboard is built with a 6-layer PCB that has 2oz thickened copper, which enhances signal integrity and overall durability.
- Steel Armor: The main PCIe x16 slot is reinforced with "Steel Armor" to protect against bending from heavy graphics cards and to provide improved EMI protection.
- MSI PRO Series Aesthetics: It features a clean and professional all-black design, fitting seamlessly into any build.
- Expansion Slots: It includes one PCIe 4.0 x16 slot for a graphics card and two PCIe 3.0 x1 slots for other expansion cards.
- Ez Debug LED: Diagnostic LEDs are included to help users quickly identify and troubleshoot issues with the CPU, DRAM, VGA, or BOOT devices.
- Flash BIOS Button: A dedicated Flash BIOS button on the rear I/O panel allows you to update the BIOS without installing a CPU, memory, or graphics card.
- Audio: It's equipped with the Realtek ALC897 Codec, providing 7.1-channel high-definition audio.
