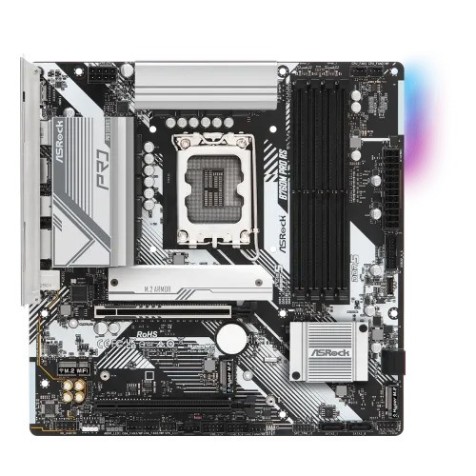

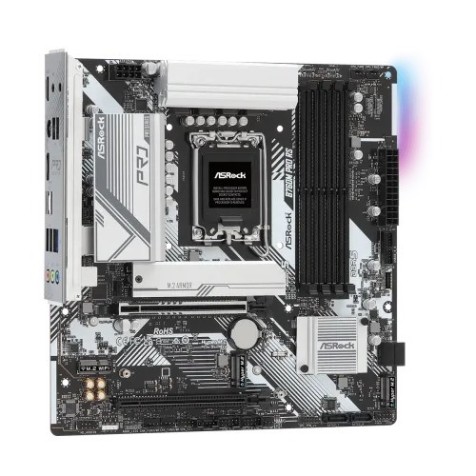

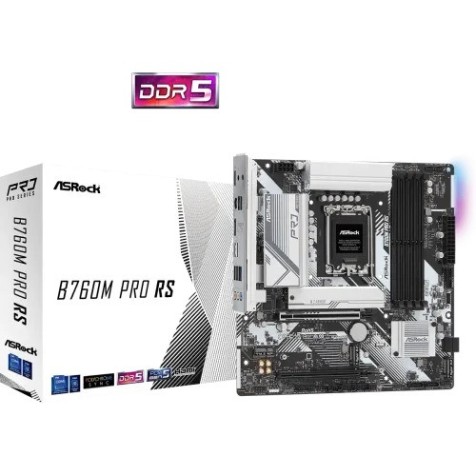

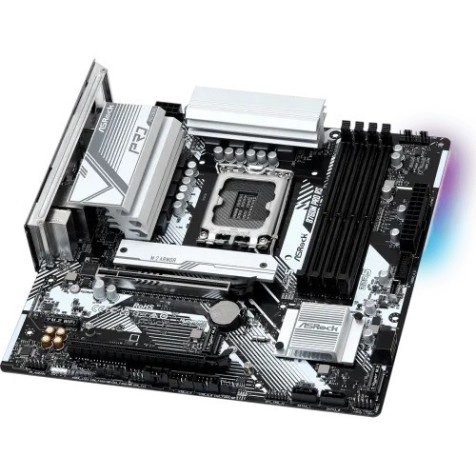

ASRock B760M Pro RS DDR5 mATX Motherboard

ASRock B760M Pro RS DDR5 mATX Motherboard
ASRock B760M Pro RS DDR5 mATX Motherboard
ASRock B760M Pro RS DDR5 mATX Motherboard
ASRock B760M Pro RS DDR5 mATX Motherboard
ASRock B760M Pro RS DDR5 mATX Motherboard
-9 %
ASRock B760M Pro RS DDR5 mATX Motherboard
ASRock B760M Pro RS DDR5 mATX Motherboard
ASRock B760M Pro RS DDR5 mATX Motherboard
ASRock B760M Pro RS DDR5 mATX Motherboard
ASRock B760M Pro RS DDR5 mATX Motherboard
ASRock B760M Pro RS DDR5 mATX Motherboard
  • Price: 20,830৳
  • special price: 18,900৳
  • Status: In Stock
  • Brands: ASRock
  • Model: B760M Pro RS
Based on 0 reviews. - Write a review

Discount Price

18,900৳20,830৳
Available payment method

Monthly EMI Price

1,756৳
Ex Tax: 18,900৳
Add To Cart
Buy Now Add to Compare
Add to Wish List Compare this Product
  • CPU Support: Compatible with Intel 14th, 13th & 12th Gen Core processors (LGA1700).
  • Chipset: Powered by Intel B760 chipset for reliable performance.
  • Memory: 4× DDR5 slots, up to 256GB, speeds up to 7200+ MHz (OC), supports Intel XMP 3.0.
  • Storage: 3× M.2 PCIe Gen4x4 slots and 4× SATA3 6Gb/s connectors, NVMe boot & RAID 0/1/5/10 support.
অর্ডার করার পূর্বে কাস্টমার কেয়ার থেকে পন্যের স্টক ও ডেলিভারি সম্পর্কে জেনে নেয়ার অনুরোধ করা যাচ্ছে। প্রযুক্তি পণ্যের মূল্য অস্থিতিশীল হওয়ায় কারণে যেকোন মুহূর্তে যেকোন প্রযুক্তি পণ্যের মূল্য পরিবর্তন হতে পারে।
Basic Information
Supported CPU Supports 14th, 13th & 12th Gen Intel Core Processors (LGA1700) Supports Intel Hybrid Technology Supports Intel Turbo Boost Max 3.0 Technology Supports Intel Thermal Velocity Boost (TVB) Supports Intel Adaptive Boost Technology (ABT)
Chipset Intel B760
Form Factor Micro ATX Form Factor: 9.6-in x 9.6-in, 24.4 cm x 24.4 cm
Audio Realtek ALC897 7.1 CH HD Audio Codec, Nahimic Audio
Expansion Slots
PCI CPU: - 1 x PCIe 5.0 x16 Slot (PCIE1), supports x16 mode* Chipset: - 1 x PCIe 3.0 x16 Slot (PCIE2), supports x4 mode* - 1 x M.2 Socket (Key E), supports type 2230 WiFi/BT PCIe WiFi module and Intel® CNVio/CNVio2 (Integrated WiFi/BT) - Supports AMD CrossFire
Memory
Type DDR5
Slots 4
Supported Memory Supports DDR5 non-ECC, un-buffered memory up to 7200+(OC) Max. capacity of system memory: 256GB Supports Intel Extreme Memory Profile (XMP) 3.0 1DPC 1R Up to 7200+ MHz (OC), 4800 MHz Natively. 1DPC 2R Up to 6000+ MHz (OC), 4400 MHz Natively. 2DPC 1R Up to 5600+ MHz (OC), 4000 MHz Natively. 2DPC 2R Up to 4800+ MHz (OC), 3600 MHz Natively.
Maximum Memory 256GB
Graphics
Graphics - Intel Xe Graphics Architecture (Gen 12) - 1 x HDMI 2.1 TMDS Compatible, supports HDCP 2.3 and max. resolution up to 4K 60Hz - 1 x DisplayPort 1.4 with DSC (compressed), supports HDCP 2.3 and max. resolution up to 8K 60Hz / 5K 120Hz * Intel UHD Graphics Built-in Visuals and the VGA outputs can be supported only with processors that are GPU integrated.
Connector & Ports
HDMI 1x HDMI
Display Port (s) 1x DisplayPort
USB Chipset: - 2 x USB 3.2 Gen1 Type-C (1 Rear, 1 Front) - 5 x USB 3.2 Gen1 Type-A (3 Rear, 2 Front) - 6 x USB 2.0 (2 Rear, 4 Front) * All USB ports support ESD Protection
LAN Port - 2.5 Gigabit LAN 10/100/1000/2500 Mb/s - Dragon RTL8125BG - Supports Dragon 2.5G LAN Software - Smart Auto Adjust Bandwidth Control - Visual User-Friendly UI - Visual Network Usage Statistics - Optimized Default Settings for Game, Browser, and Streaming Modes - User Customized Priority Control
Supported Storage CPU: - 1 x Hyper M.2 Socket (M2_1, Key M), supports type 2242/2260/2280 PCIe Gen4x4 (64 Gb/s) mode* Chipset: - 1 x Hyper M.2 Socket (M2_2, Key M), supports type 2280 PCIe Gen4x4 (64 Gb/s) mode* - 1 x Hyper M.2 Socket (M2_3, Key M), supports type 2280 PCIe Gen4x4 (64 Gb/s) mode* - 4 x SATA3 6.0 Gb/s Connectors * Supports Intel Volume Management Device (VMD) Supports NVMe SSD as boot disks
RAID - Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices

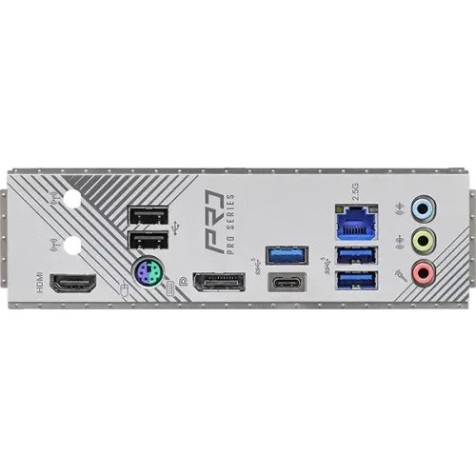

Internal I/O Ports - 1 x SPI TPM Header - 1 x Chassis Intrusion and Speaker Header - 1 x RGB LED Header - 3 x Addressable LED Headers - 1 x CPU Fan Connector (4-pin) - 1 x CPU/Water Pump Fan Connector (4-pin) (Smart Fan Speed Control) - 4 x Chassis/Water Pump Fan Connectors (4-pin) (Smart Fan Speed Control) - 1 x 24 pin ATX Power Connector - 1 x 8 pin 12V Power Connector (Hi-Density Power Connector) - 1 x Front Panel Audio Connector - 1 x Thunderbolt™ AIC Connector (5-pin) (Supports ASRock Thunderbolt™ 4 AIC Card) - 2 x USB 2.0 Headers (Support 4 USB 2.0 ports) - 1 x USB 3.2 Gen1 Header (Supports 2 USB 3.2 Gen1 ports) - 1 x Front Panel Type C USB 3.2 Gen1 Header Rear Panel I/O - 2 x Antenna Mounting Points - 1 x PS/2 Mouse/Keyboard Port - 1 x HDMI Port - 1 x DisplayPort 1.4 - 1 x USB 3.2 Gen1 Type-C Port - 3 x USB 3.2 Gen1 Type-A Ports - 2 x USB 2.0 Ports - 1 x RJ-45 LAN Port - HD Audio Jacks: Line in / Front Speaker / Microphone
TPM (Trusted Platform Module ) - 1 x SPI TPM Header
Others
Special Features Superb Productivity - PCIe Gen5 (Graphics) - Dual Channel DDR5 Rock-Solid Durability - 7+1+1 Power Phase, Dr.MOS for VCore+GT Ultrafast Connectivity - 2.5G LAN EZ Update - ASRock Auto Driver Installer EZ Troubleshooter - ASRock Post Status Checker
Warranty Information
Manufacturing Warranty 3 years Warranty

ASRock B760M Pro RS DDR5 mATX Motherboard

The  ASRock B760M Pro RS DDR5 mATX Motherboard is a high-performance, feature-rich solution designed for enthusiasts, gamers, and productivity users seeking reliability and cutting-edge technology. Compatible with Intel’s 12th, 13th, and 14th Gen Core processors (LGA1700), it supports Intel Hybrid Technology, Turbo Boost Max 3.0, Thermal Velocity Boost (TVB), and Adaptive Boost Technology (ABT) for enhanced computing performance under demanding workloads. Built on the robust Intel B760 chipset, this micro-ATX  Motherboard features a compact 24.4 cm x 24.4 cm form factor without compromising expandability. Its 7+1+1 power phase design with Dr.MOS ensures stable power delivery to the CPU and integrated graphics, making it ideal for overclocking and high-performance setups. Users can leverage up to 256GB of DDR5 memory across four slots, with support for speeds up to 7200+ MHz (OC) and Intel XMP 3.0 profiles. Storage and expansion options are plentiful, including three Hyper M.2 PCIe Gen4x4 slots, four SATA3 6.0 Gb/s connectors, and PCIe support for AMD CrossFire graphics. Graphics enthusiasts benefit from Intel Xe integrated graphics via HDMI 2.1 (4K 60Hz) or DisplayPort 1.4 with DSC (up to 8K 60Hz / 5K 120Hz). Connectivity is advanced, with dual 2.5G LAN ports, multiple USB options including USB 3.2 Gen1 Type-C, and comprehensive internal headers for fans, RGB lighting, TPM, and Thunderbolt™ AIC support. Audio quality is powered by the Realtek ALC897 7.1-channel HD codec with Nahimic audio enhancements. The B760M Pro RS also excels in usability, offering ASRock’s UEFI BIOS with EZ Mode, full HD interface, instant flash updates, and bundled software utilities like A-Tuning, Polychrome SYNC, and Dragon 2.5G LAN. Designed for durability, productivity, and ultrafast connectivity, it comes with a 3-year warranty, making it a dependable foundation for building high-performance PCs.

Features of ASRock B760M Pro RS DDR5 mATX Motherboard

  • Supports 12th, 13th & 14th Gen Intel Core processors (LGA1700) with Hybrid and Turbo Boost technologies.
  • Equipped with Intel B760 chipset and Micro ATX form factor (24.4 x 24.4 cm).
  • 4 DDR5 memory slots, up to 256GB, supporting speeds up to 7200+ MHz (OC) with XMP 3.0.
  • PCIe Gen5 x16 slot for high-performance graphics and PCIe 3.0 x16 slot supporting x4 mode.
  • Triple M.2 slots (PCIe Gen4x4) and 4 SATA3 connectors for flexible storage options.
  • Intel Xe integrated graphics with HDMI 2.1 (4K 60Hz) and DisplayPort 1.4 (8K 60Hz / 5K 120Hz).
  • Dual 2.5G LAN ports with Dragon 2.5G LAN software and smart bandwidth control.
  • Realtek ALC897 7.1-channel HD audio codec with Nahimic audio enhancements.
  • Multiple USB options including USB 3.2 Gen1 Type-C and USB 2.0 ports for versatile connectivity.
  • Comprehensive internal headers: RGB, addressable LEDs, fan connectors, TPM, and Thunderbolt™ AIC support.
  • Supports RAID 0, 1, 5, and 10 for SATA drives with NVMe SSD boot capability.
  • 7+1+1 power phase design with Dr.MOS for stable CPU and memory performance.
  • User-friendly ASRock UEFI BIOS with EZ Mode, instant flash updates, and bundled utilities.
