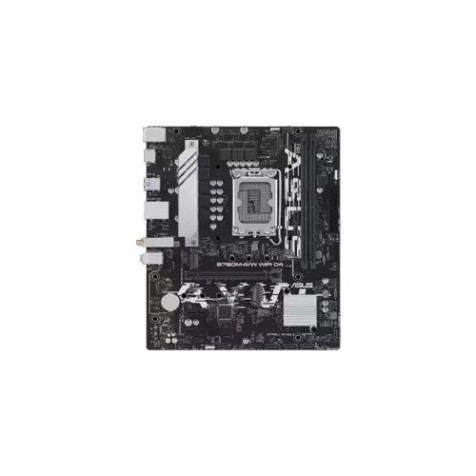

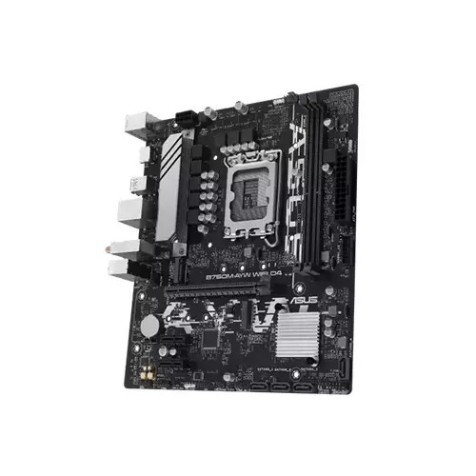

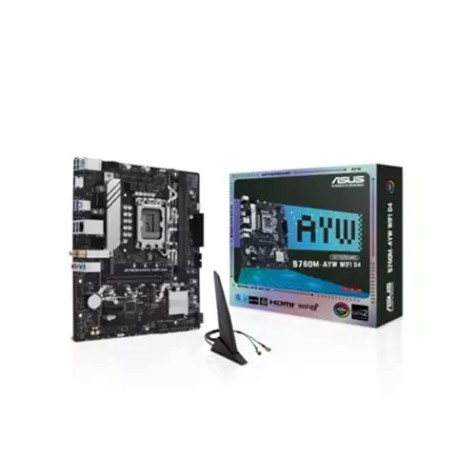

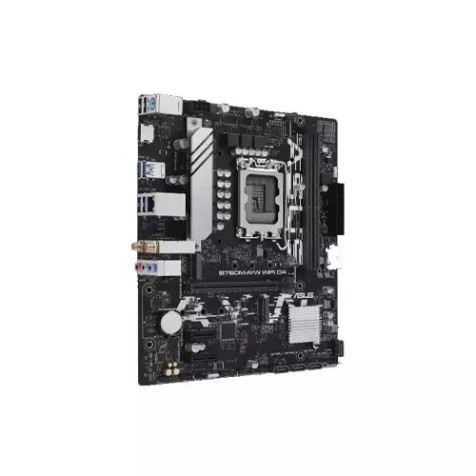

ASUS B760M-AYW WIFI D4 mATX Motherboard
The ASUS B760M-AYW WIFI D4 is a micro-ATX motherboard designed to provide a solid and reliable foundation for a modern PC build, particularly for gamers and enthusiasts looking for a balance of performance, features, and affordability. Built on the Intel B760 chipset, it is fully compatible with 14th, 13th, and 12th Gen Intel Core processors, making it a great choice for a wide range of CPUs. This motherboard features four DIMM slots that support DDR4 memory, allowing for a maximum capacity of 128GB and overclocked speeds of up to 5333MHz. While many newer boards have shifted to DDR5, the continued use of DDR4 makes this an excellent option for users who want to leverage their existing memory kits and save on upgrade costs. For expansion, the B760M-AYW is well-equipped. It includes a PCIe 4.0 x16 slot for a high-performance graphics card, as well as a PCIe 4.0 x4 slot and a PCIe 3.0 x1 slot for additional expansion cards. Storage options are robust, with two M.2 slots supporting PCIe 4.0 x4 NVMe SSDs and four SATA 6Gb/s ports. Connectivity is a key highlight, as the motherboard comes with integrated Wi-Fi 6 for fast and stable wireless networking and a Realtek 2.5Gb Ethernet port for high-speed wired connections. The board is also built with ASUS's signature durability features, including VRM heatsinks and a durable back I/O, ensuring stable and reliable performance for a long time.
Features of ASUS B760M-AYW WIFI D4
- LGA 1700 Socket: Supports Intel's 14th, 13th, and 12th Gen Core processors, as well as Pentium Gold and Celeron CPUs.
- DDR4 Memory: It features four DIMM slots for DDR4 RAM, supporting up to a total of 128GB with overclocked speeds reaching up to 5333MHz. This makes it a great choice for users who want to reuse existing DDR4 memory or prefer the affordability of the platform.
- PCIe Slots: Includes one PCIe 4.0 x16 slot for a modern graphics card. There are also two additional PCIe 4.0 x1 slots for other expansion cards.
- M.2 Slots: It has two M.2 slots, both supporting PCIe 4.0 x4 mode, for high-speed NVMe SSDs.
- SATA Ports: There are four SATA 6Gb/s ports for traditional storage drives.
- RAID Support: The motherboard supports Intel Rapid Storage Technology for SATA RAID 0, 1, 5, and 10 configurations, which is beneficial for data redundancy and performance.

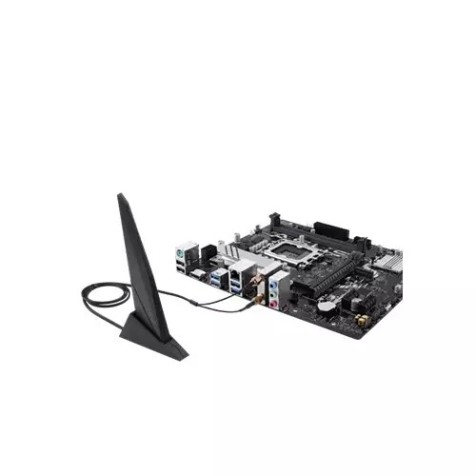

- Wireless: It comes with integrated Wi-Fi 6 for fast wireless networking and Bluetooth 5.2 for connecting wireless peripherals.
- Wired: A Realtek 2.5Gb Ethernet port is included, offering faster data transfers and lower latency than standard Gigabit Ethernet.

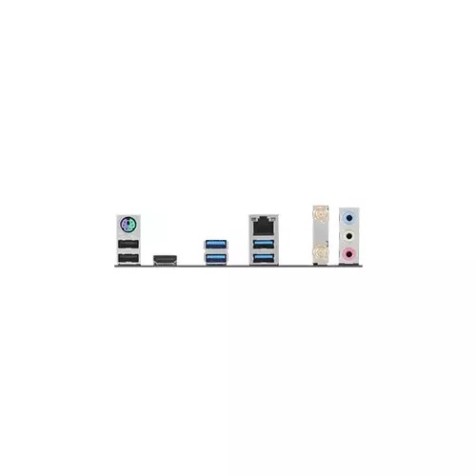

- USB Ports: A combination of USB 3.2 Gen 1 (5Gbps) and USB 2.0 ports are available on the rear I/O, along with internal headers for front-panel access.
- Display Outputs: For integrated graphics, it features an HDMI port that supports 4K resolution at 60Hz.
- ASUS 5X Protection III: This suite of hardware-level safeguards includes features like DIGI+ VRM, LANGuard, and overvoltage protection to ensure long-term stability and reliability.
- VRM Heatsink: A dedicated heatsink on the voltage regulator modules (VRMs) helps to keep power delivery stable and cool.
- Fan Control: ASUS's Fan Xpert software provides flexible and comprehensive control over system fans.
- Aura Sync: It includes an Aura RGB header and Addressable Gen 2 headers, allowing you to synchronize RGB lighting with other compatible components.
- TPM: It has an SPI TPM header for a discrete TPM module and supports firmware TPM (fTPM) via the CPU.
