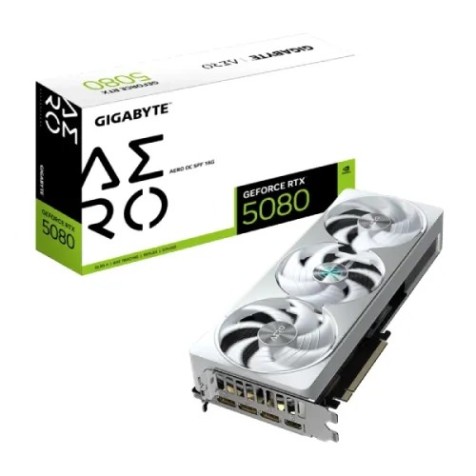

Gigabyte GeForce RTX 5080 AERO OC SFF 16GB GDDR7 Graphics Card
The Gigabyte GeForce RTX 5080 AERO OC SFF 16G is a high-performance, compact graphics card tailored for small form factor builds without compromising on power. At its core lies NVIDIA’s Blackwell architecture, featuring 10,752 CUDA cores, a 256‑bit interface, and 16 GB of GDDR7 memory, delivering exceptional bandwidth and responsiveness. Factory overclocked with a boost clock of 2730 MHz (vs. 2617 MHz reference), this GPU enhances gaming and rendering performance right out of the box. It fully supports cutting-edge technologies like DLSS 4 Multi-Frame Generation, fourth-gen RT cores, fifth-gen Tensor Cores, and NVIDIA Reflex 2, offering stunning ray tracing, low latency, and AI-accelerated clarity. A standout feature is the WINDFORCE cooling system. It includes Hawk fans with alternate spinning for efficient airflow, server-grade thermal conductive gel to cool VRAM and VRMs, a vapor chamber, copper heat pipes, 3D Active Fan design for semi-passive cooling, and graphene nano lubricant for extra thermal longevity and quiet operation. The card is NVIDIA SFF-ready, meaning it conforms to small form factor specifications—making it ideal for compact PC cases. It also features RGB lighting, a dual‑BIOS switch (for Performance or Silent modes), a reinforced metal backplate, a versatile VGA holder, and an integrated power‑supply anomaly indicator. Gigabyte even offers a 4‑year warranty with online registration. Reviews and user feedback highlight its real-world performance and thermal efficiency. One Redditor noted stable temps around 50–55 °C under load, impressive cooling for its size, and successful overclocking with minimal noise. Others observed virtually identical performance to larger cards due to the well-engineered cooler.
Features of Gigabyte GeForce RTX 5080 AERO OC SFF 16GB
GPU & Architecture: It is powered by the NVIDIA GeForce RTX 5080, based on the new Blackwell architecture. This includes a significant number of CUDA cores (10,752) as well as 4th-gen Ray Tracing Cores and 5th-gen Tensor Cores for advanced AI and rendering capabilities.
Memory: The card is integrated with 16GB of GDDR7 memory on a 256-bit memory bus, which provides a fast memory clock of 30 Gbps. This ensures high bandwidth for demanding games and creative applications.
Clock Speed: The AERO OC model comes with a factory overclock, boosting the core clock to 2730 MHz, which is a notable increase over the reference card's 2617 MHz.
Interface: It utilizes a PCI Express 5.0 x16 interface for maximum data throughput.

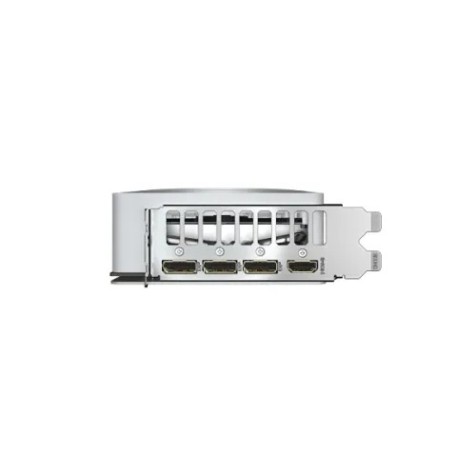

Display Support: The card features three DisplayPort 2.1b and one HDMI 2.1b output, supporting a maximum digital resolution of 7680x4320 and allowing for up to four displays simultaneously.
Cooling System: The AERO OC SFF features Gigabyte's WINDFORCE cooling system optimized for its compact size. Key elements include:

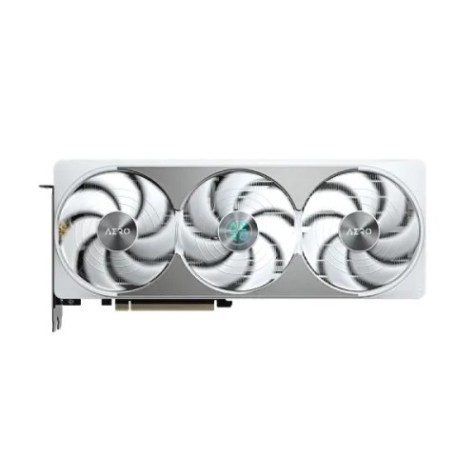

Hawk Fans: A triple-fan design with innovative blades and alternate spinning to optimize airflow and minimize turbulence.
Server-Grade Thermal Conductive Gel: High-quality thermal gel is used on VRAM and MOSFETs for superior heat transfer.
Large Vapor Chamber and Composite Heat Pipes: A large vapor chamber directly contacts the GPU, and composite copper heat pipes work together to quickly and efficiently transfer heat away from the core components to the heatsink.
Screen Cooling: An extended heatsink design allows air to pass through for better heat dissipation.
SFF-Ready Design: The card's dimensions (L=304 W=126 H=50 mm) comply with NVIDIA's small form factor specification, making it a perfect fit for compact cases.
Aesthetic: It has a sleek, white exterior with a design inspired by flowing water, including ripples on the back panel. It also features RGB lighting that can be customized with Gigabyte Control Center.
Dual BIOS: A physical switch allows users to easily choose between Performance and Silent modes, giving them flexibility to prioritize performance or low noise.

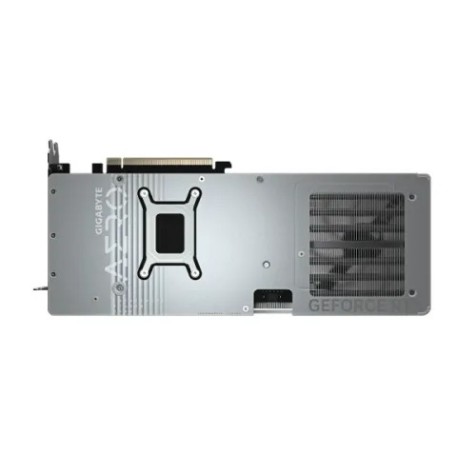

Reinforced Structure: The card is built with a reinforced metal backplate and a die-cast metal frame to prevent sagging and twisting.
Power Requirements: It uses a single 16-pin power connector and a recommended power supply unit (PSU) of 850W for stable operation.
