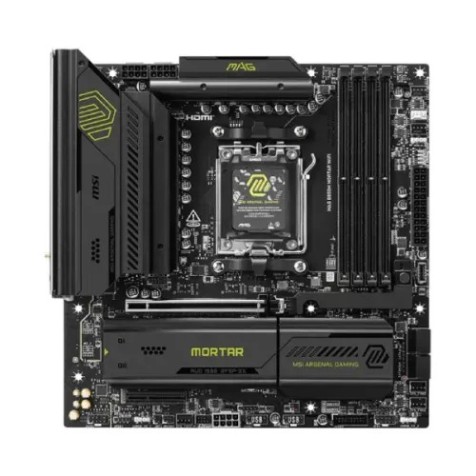

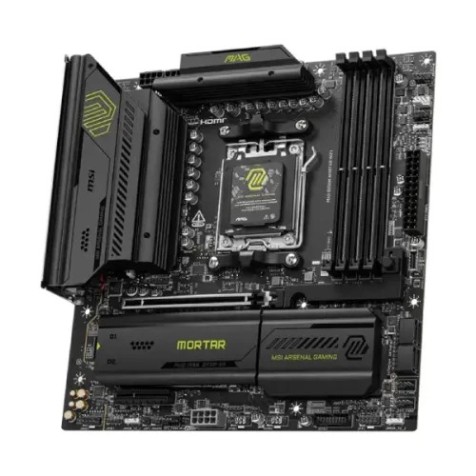

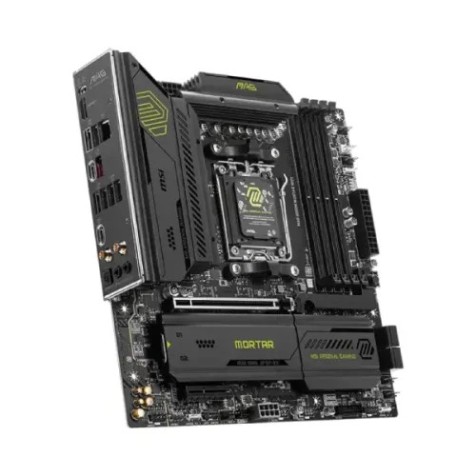

MSI MAG B850M MORTAR WIFI AM5 mATX Motherboard

MSI MAG B850M MORTAR WIFI AM5 mATX Motherboard
MSI MAG B850M MORTAR WIFI AM5 mATX Motherboard
MSI MAG B850M MORTAR WIFI AM5 mATX Motherboard
MSI MAG B850M MORTAR WIFI AM5 mATX Motherboard
-9 %
MSI MAG B850M MORTAR WIFI AM5 mATX Motherboard
MSI MAG B850M MORTAR WIFI AM5 mATX Motherboard
MSI MAG B850M MORTAR WIFI AM5 mATX Motherboard
MSI MAG B850M MORTAR WIFI AM5 mATX Motherboard
MSI MAG B850M MORTAR WIFI AM5 mATX Motherboard
  • Price: 37,400৳
  • special price: 34,000৳
  • Status: In Stock
  • Brands: MSI
  • Model: MAG B850M MORTAR WIFI
Based on 0 reviews. - Write a review

Discount Price

34,000৳37,400৳
Available payment method

Monthly EMI Price

3,160৳
Ex Tax: 34,000৳
Add To Cart
Buy Now Add to Compare
Add to Wish List Compare this Product
  • AM5 Socket with AMD B850 Chipset
  • DDR5 Memory Support up to 8000+ MHz (OC)
  • Wi-Fi 7 & Bluetooth 5.4
  • 2.5G LAN Ethernet
অর্ডার করার পূর্বে কাস্টমার কেয়ার থেকে পন্যের স্টক ও ডেলিভারি সম্পর্কে জেনে নেয়ার অনুরোধ করা যাচ্ছে। প্রযুক্তি পণ্যের মূল্য অস্থিতিশীল হওয়ায় কারণে যেকোন মুহূর্তে যেকোন প্রযুক্তি পণ্যের মূল্য পরিবর্তন হতে পারে।
Basic Information
Supported CPU Supports AMD Ryzen 9000/ 8000/ 7000 Series Desktop Processors Socket AM5
Chipset AMD B850
Form Factor mATX 243.84mmx243.84mm
Audio Realtek ALC4080 Codec 7.1-Channel USB High Performance Audio Supports up to 32-bit/384kHz playback on front panel Supports S/PDIF output
Expansion Slots
PCI 1x PCI-E x16 slot 1x PCI-E x4 slot PCI_E1 Gen PCIe 5.0 supports up to x16 (From CPU) PCI_E2 Gen PCIe 4.0 supports up to x4 (From Chipset) PCI_E1 slot • Supports PCIe 5.0 x16 (For Ryzen™ 9000/ 7000 Series processors) • Supports PCIe 4.0 x8 (For Ryzen™ 8700/ 8600/ 8400 Series processors) • Supports PCIe 4.0 x4 (For Ryzen™ 8500/ 8300 Series processors)
Memory
Type DDR5
Slots 4x DIMMs
Supported Memory Memory Support DDR5 8200 - 5600 (OC) MT/s / 5600 - 4800 (JEDEC) MT/s Ryzen™ 9000 Series Processors max. overclocking frequency: • 1DPC 1R Max speed up to 8200+ MT/s • 1DPC 2R Max speed up to 6400+ MT/s • 2DPC 1R Max speed up to 6400+ MT/s • 2DPC 2R Max speed up to 4800+ MT/s Supports AMD POR Speed and JEDEC Speed Supports Memory Overclocking and AMD EXPO™ Supports Dual-Channel mode Supports Non-ECC, Un-buffered memory Supports CUDIMM, Clock Driver bypass mode only*
Maximum Memory 256GB
Graphics
Graphics 1x HDMI Support HDMI 2.1 FRL, maximum resolution of 8K 60Hz* *Available only on processors featuring integrated graphics. Graphics specifications may vary depending on the CPU installed.
Connector & Ports
HDMI 1x HDMI
Display Port (s) N/A

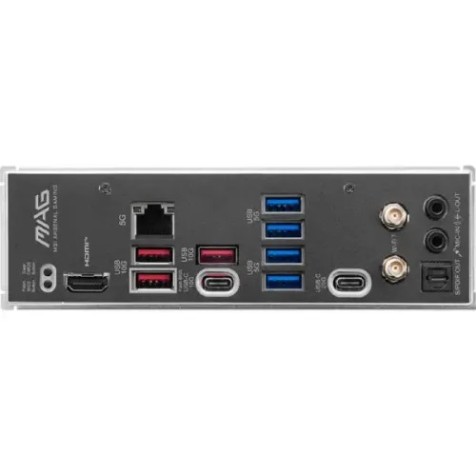

USB 4x USB 2.0 (Front) 4x USB 5Gbps Type A (Rear) 2x USB 5Gbps Type A (Front) 3x USB 10Gbps Type A (Rear) 1x USB 10Gbps Type C (Rear) 1x USB 10Gbps Type C (Front) 1x USB 20Gbps Type C (Rear)
LAN Port Realtek 8126-VB 5G LAN
Supported Storage 3x M.2 M.2_1 Source (From CPU) supports up to PCIe 5.0 x4 , supports 2280/2260 devices M.2_2 Source (From CPU) supports up to PCIe 5.0 x4 , supports 2280/2260 devices M.2_3 Source (From Chipset) supports up to PCIe 4.0 x2 , supports 2280 devices 4x SATA 6G M2_1 slot • Supports up to PCIe 5.0 x4 (For Ryzen™ 9000/ 7000 Series processors) • Supports up to PCIe 4.0 x4 (For Ryzen™ 8000 Series processors) M2_2 slot • Supports up to PCIe 5.0 x4 (For Ryzen™ 9000/ 7000 Series processors) • Supports up to PCIe 4.0 x4 (For Ryzen™ 8700/ 8600/ 8400 Series processors) • Supports up to PCIe 4.0 x2 (For Ryzen™ 8500/ 8300 Series processors) M2_3 slot • Supports up to PCIe 4.0 x2
RAID • Supports RAID 0 , RAID 1 and RAID 10 for SATA storage devices • Supports RAID 0, RAID 1 and RAID 5 for M.2 NVMe storage devices *RAID 5 configuration is only supported by Ryzen™ 9000 series processors.
Internal I/O Ports 1x Power Connector(ATX_PWR) 2x Power Connector(CPU_PWR) 1x Power Connector(PCIE_PWR 8pin) 1x CPU Fan 1x Combo Fan (Pump_Sys Fan) 4x System Fan 1x EZ Conn-header (JAF_1) 2x Front Panel (JFP) 1x Chassis Intrusion (JCI) 1x Front Audio (JAUD) 1x Tuning Controller connector(JDASH) 3x Addressable V2 RGB LED connector (JARGB_V2) 1x RGB LED connector(JRGB) 1x TPM pin header(Support TPM 2.0) 4x USB 2.0 ports 2x USB 5Gbps Type A ports 1x USB 10Gbps Type C ports
TPM (Trusted Platform Module ) 1x TPM pin header(Support TPM 2.0)
Others
Special Features 4x EZ Debug LED 1x EZ Memory Detection LED
Warranty Information
Manufacturing Warranty 3 Years

MSI MAG B850M MORTAR WIFI AM5 mATX Motherboard



The MSI MAG B850M MORTAR WIFI is a powerful and compact micro-ATX motherboard designed for gamers and PC builders looking to harness the performance of AMD’s latest AM5 platform. Built on the robust B850 chipset, this board supports AMD Ryzen 8000 and 7000 Series processors, delivering outstanding multi-core performance, energy efficiency, and future-ready features. With support for DDR5 memory up to 8000+ MHz (OC) and a maximum capacity of 192GB across 4 DIMM slots, it offers high-speed memory performance for gaming, multitasking, and content creation. The PCIe 5.0 x16 slot ensures compatibility with the latest GPUs, while two PCIe Gen4 M.2 slots enable lightning-fast storage with NVMe SSDs. Connectivity is another strong suit, featuring Intel Wi-Fi 7, 2.5G LAN, and Bluetooth 5.4, ensuring ultra-low-latency wireless and wired networking. Rear I/O includes USB 3.2 Gen 2x2 Type-C, HDMI 2.1, DisplayPort 1.4, and high-quality audio powered by the Realtek ALC4080 codec. Built with durability and stability in mind, the board features a 12+2+1 Duet Rail Power System, extended heatsinks, and premium thermal pads to keep components cool under load. It’s perfect for small form factor builds without compromising on high-end features. Aesthetically, the MAG B850M MORTAR WIFI sports a sleek black-and-grey military-themed design, making it an ideal fit for clean and modern gaming rigs. It also includes EZ Debug LEDs, Flash BIOS Button, and pre-installed I/O shielding for easy and convenient installation. Whether you're building a powerful SFF gaming PC or a compact workstation, the MSI MAG B850M MORTAR WIFI delivers performance, stability, and future-ready technology in a micro-ATX form factor.
