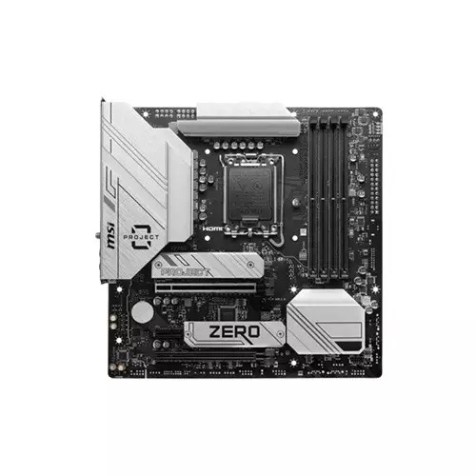

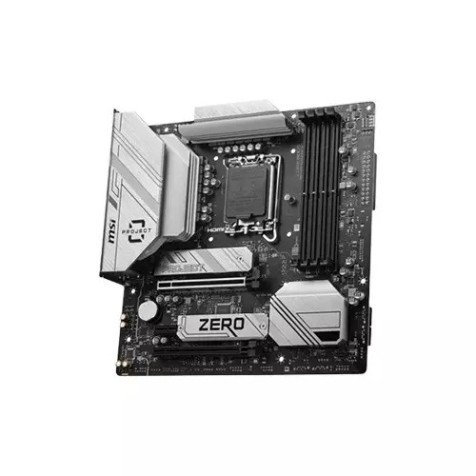

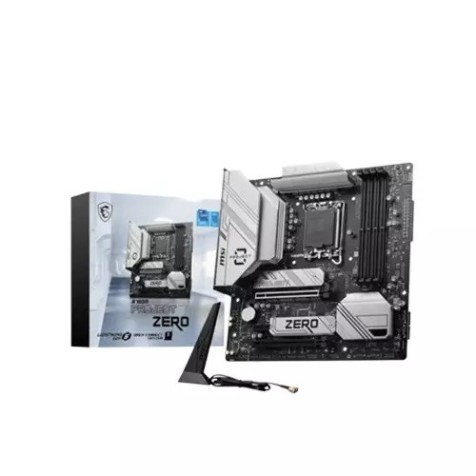

MSI B760M PROJECT ZERO m-ATX Motherboard

MSI B760M PROJECT ZERO m-ATX Motherboard
MSI B760M PROJECT ZERO m-ATX Motherboard
MSI B760M PROJECT ZERO m-ATX Motherboard
MSI B760M PROJECT ZERO m-ATX Motherboard
-8 %
MSI B760M PROJECT ZERO m-ATX Motherboard
MSI B760M PROJECT ZERO m-ATX Motherboard
MSI B760M PROJECT ZERO m-ATX Motherboard
MSI B760M PROJECT ZERO m-ATX Motherboard
MSI B760M PROJECT ZERO m-ATX Motherboard
  • Price: 26,580৳
  • special price: 24,500৳
  • Status: In Stock
  • Brands: MSI
  • Model: B760M PROJECT ZERO
Based on 0 reviews. - Write a review

Discount Price

24,500৳26,580৳
Available payment method

Monthly EMI Price

2,277৳
Ex Tax: 24,500৳
Add To Cart
Buy Now Add to Compare
Add to Wish List Compare this Product
  • Back-Connect" Design
  • Intel LGA 1700 Socket
  • DDR5 Memory Support
  • PCIe 5.0 x16 Slot
অর্ডার করার পূর্বে কাস্টমার কেয়ার থেকে পন্যের স্টক ও ডেলিভারি সম্পর্কে জেনে নেয়ার অনুরোধ করা যাচ্ছে। প্রযুক্তি পণ্যের মূল্য অস্থিতিশীল হওয়ায় কারণে যেকোন মুহূর্তে যেকোন প্রযুক্তি পণ্যের মূল্য পরিবর্তন হতে পারে।
Basic Information
Supported CPU Support Intel Core 14th/ 13th/ 12th Gen Processors, Intel Pentium Gold and Celeron Processors LGA 1700
Chipset INTEL B760
Form Factor mATX 243.84mmx243.84mm
Audio Realtek ALC897 Codec 7.1-Channel High Performance Audio Supports S/PDIF output
Expansion Slots
PCI 2x PCI-E x16 slot 1x PCI-E x1 slot PCI_E1 Gen PCIe 5.0 supports up to x16 (From CPU) PCI_E2 Gen PCIe 3.0 supports up to x1 (From Chipset) PCI_E3 Gen PCIe 4.0 supports up to x4 (From Chipset)
Memory
Type DDR5
Slots 4x DIMM
Supported Memory Memory Support 7800+(OC)/ 7600(OC)/ 7400(OC)/ 7200(OC)/ 7000(OC)/ 6800(OC)/ 6600(OC)/ 6400(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(JEDEC)/ 5400(JEDEC)/ 5200(JEDEC)/ 5000(JEDEC)/ 4800(JEDEC) MHz Max. overclocking frequency: • 1DPC 1R Max speed up to 7800+ MHz • 1DPC 2R Max speed up to 6600+ MHz • 2DPC 1R Max speed up to 6400+ MHz • 2DPC 2R Max speed up to 5600+ MHz Supports Dual-Channel mode Supports non-ECC, un-buffered memory Supports Intel Extreme Memory Profile
Maximum Memory 192GB
Graphics
Graphics Support HDMITM 2.1 with HDR, maximum resolution of 4K 60Hz* Support DP 1.4, maximum resolution of 4K 60Hz*
Connector & Ports
HDMI 1x HDMI 1.4
Display Port (s) 1x DisplayPort
USB 4x USB 2.0 (Rear) 4x USB 2.0 (Front) 2x USB 3.2 Gen1 Type A (Front) 3x USB 3.2 Gen2 Type A (Rear) 1x USB 3.2 Gen2 Type C (Front) 1x USB 3.2 Gen2x2 Type C (Rear)
LAN Port Realtek 2.5Gbps LAN
Supported Storage 2x M.2 M.2_1 Source (From CPU) supports up to PCIe 4.0 x4 , supports 2280/2260/2242 devices M.2_2 Source (From Chipset) supports up to PCIe 4.0 x4 / SATA mode, supports 2280/2260/2242 devices 4x SATA 6G
RAID Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices

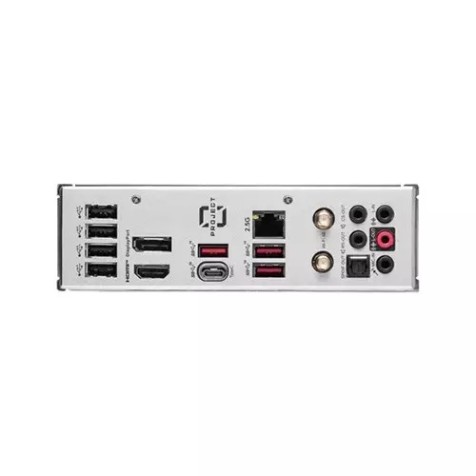

Internal I/O Ports Internal I/O Ports: 1x Power Connector(ATX_PWR) 2x Power Connector(CPU_PWR) 1x CPU Fan 1x Pump Fan 4x System Fan 2x Front Panel (JFP) 1x Chassis Intrusion (JCI) 1x Front Audio (JAUD) 1x TBT connector (JTBT, supports RTD3) 1x Tuning Controller connector(JDASH) 2x Addressable V2 RGB LED connector (JARGB_V2) 2x RGB LED connector(JRGB) 4x USB 2.0 ports 2x USB 3.2 Gen1 Type A ports 1x USB 3.2 Gen2 Type C ports BACK PANEL PORTS: USB 2.0 DisplayPort 1.4 USB 3.2 Gen 2 10Gbps Type-A 2.5G LAN Port Wi-Fi / Bluetooth Antenna HD Audio Connectors HDMI™ 2.1 Port USB 3.2 Gen 2x2 20Gbps Type-C Optical S/PDIF OUT
TPM (Trusted Platform Module ) 1x TPM pin header(Support TPM 2.0)
Others
Special Features 4x EZ Debug LED
Warranty Information
Manufacturing Warranty 3 years

MSI B760M PROJECT ZERO m-ATX Motherboard


The MSI B760M PROJECT ZERO is a micro-ATX (m-ATX) motherboard designed for builders who prioritize clean aesthetics and easy cable management. It's built on the Intel B760 chipset and is compatible with Intel Core 14th, 13th, and 12th Gen processors that use the LGA 1700 socket. The defining feature of this motherboard is its "back-connect" design, which moves most of the power connectors, fan headers, and other I/O ports to the rear of the motherboard. This revolutionary layout allows cables to be routed from behind the motherboard tray, eliminating visible clutter in the front of the PC case and creating a stunningly clean and minimalist interior. Beyond its innovative design, the B760M PROJECT ZERO doesn't compromise on performance. It supports DDR5 memory with speeds reaching over 7800+ MHz (OC), providing a significant boost to system performance. It also includes a PCIe 5.0 x16 slot for the latest and most powerful graphics cards. For storage and networking, the board is well-equipped with two PCIe 4.0 x4 M.2 slots for fast NVMe SSDs, alongside four SATA 6Gb/s ports. Connectivity is robust, featuring 2.5G LAN and Wi-Fi 6E with Bluetooth 5.3, ensuring high-speed wired and wireless network connections. The motherboard also boasts a 12+1+1 Duet Rail Power System with a premium thermal solution to ensure stable and reliable power delivery to your CPU, even under heavy loads.


Features of MSI B760M PROJECT ZERO


  • Back-Connect Design: This is the flagship feature. It relocates the main power connectors (24-pin ATX, 8-pin CPU), fan headers, SATA ports, and other I/O to the backside of the motherboard. This allows for superior cable management and a clean, clutter-free PC build aesthetic.
  • CPU Support: It supports Intel® Core™ 14th, 13th, and 12th Gen processors, as well as Intel® Pentium® Gold and Celeron® processors, on the LGA 1700 socket.
  • DDR5 Memory: The motherboard supports DDR5 memory with four DIMM slots, allowing for a maximum capacity of up to 192GB and high overclocking speeds of 7800+ MHz.
  • Enhanced Power Design: A robust 12+1+1 Duet Rail Power System with a premium VRM heatsink and dual 8-pin power connectors ensures stable and reliable power delivery, even for high-performance CPUs.
  • PCIe 5.0: It includes a primary PCIe 5.0 x16 slot for the latest graphics cards, offering a massive 128 GB/s bandwidth.
  • M.2 Storage: It has two M.2 slots, both supporting PCIe 4.0 x4, with an M.2 Shield Frozr heatsink to prevent SSD thermal throttling.
  • Networking: Features a Realtek 2.5G LAN for fast wired connections and an integrated Wi-Fi 6E module with Bluetooth 5.3 for a premium wireless experience.
  • DIY Friendly: The board includes user-friendly features like the EZ Debug LED lights for quick troubleshooting and a BIOS Flash Button for easy BIOS updates without a CPU.
  • Premium Components: The board is built with a 6-layer PCB with 2oz thickened copper for improved heat dissipation and signal integrity, enhancing overall durability and reliability.
