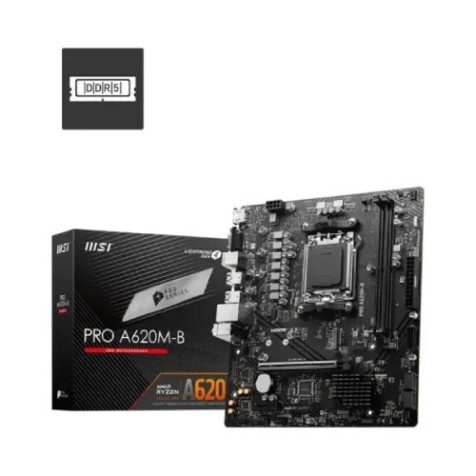

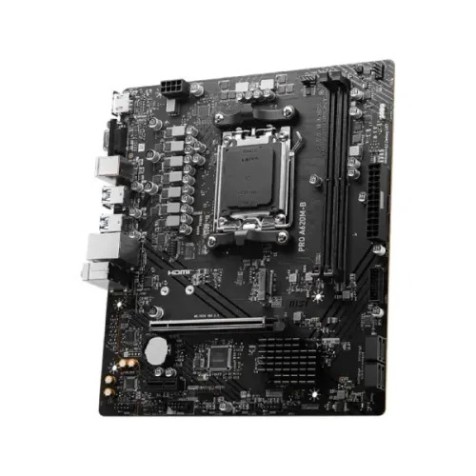

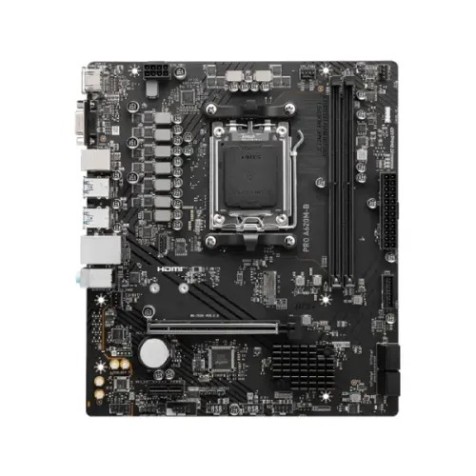

MSI PRO A620M-B AM5 mATX Motherboard

MSI PRO A620M-B AM5 mATX Motherboard
MSI PRO A620M-B AM5 mATX Motherboard
MSI PRO A620M-B AM5 mATX Motherboard
MSI PRO A620M-B AM5 mATX Motherboard
-7 %
MSI PRO A620M-B AM5 mATX Motherboard
MSI PRO A620M-B AM5 mATX Motherboard
MSI PRO A620M-B AM5 mATX Motherboard
MSI PRO A620M-B AM5 mATX Motherboard
MSI PRO A620M-B AM5 mATX Motherboard
  • Price: 12,650৳
  • special price: 11,800৳
  • Status: In Stock
  • Brands: MSI
  • Model: PRO A620M-B
Based on 0 reviews. - Write a review

Discount Price

11,800৳12,650৳
Available payment method

Monthly EMI Price

1,097৳
Ex Tax: 11,800৳
Add To Cart
Buy Now Add to Compare
Add to Wish List Compare this Product
  • Realtek RTL8125BG 5G LAN
  • 1x HDMI, 1x VGA
  • 2x DDR5, up to 6800+(OC) MT/s
  • Ryzen 9000/ 8000/ 7000 Series Processors for Socket AM5
অর্ডার করার পূর্বে কাস্টমার কেয়ার থেকে পন্যের স্টক ও ডেলিভারি সম্পর্কে জেনে নেয়ার অনুরোধ করা যাচ্ছে। প্রযুক্তি পণ্যের মূল্য অস্থিতিশীল হওয়ায় কারণে যেকোন মুহূর্তে যেকোন প্রযুক্তি পণ্যের মূল্য পরিবর্তন হতে পারে।
Basic Information
Supported CPU Supports AMD Ryzen 9000/ 8000/ 7000 Series Desktop Processors Socket AM5
Chipset AMD A620
Form Factor mATX 215mmx243.84mm
Audio Realtek® ALC897 Codec 7.1-Channel High Definition Audio
Expansion Slots
PCI 1x PCI-E x16 slot Supports x16 (For Ryzen 9000 and 7000 Series processors) Supports x8 (For Ryzen 8700/ 8600/ 8400 Series processors) Supports x4 (For Ryzen 8500/ 8300 Series processors) 1x PCI-E x1 slot PCI_E1 Gen PCIe 4.0 supports up to x16 (From CPU) PCI_E2 Gen PCIe 3.0 supports up to x1 (From Chipset)
Memory
Type DDR5
Slots 2x DIMMs
Supported Memory Memory Support DDR5 6800+(OC)/ 6600(OC)/ 6400(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(OC)/ 5400(OC)/ 5200(OC)/ 5000(OC)/ 4800(JEDEC) MT/s 1DPC 1R Max speed up to 6800+ MHz 1DPC 2R Max speed up to 6000+ MHz
Maximum Memory 128GB
Graphics
Graphics 1x HDMI Support HDMITM 2.1, maximum resolution of 4K 60Hz* 1x VGA Support VGA, maximum resolution of 2048x1536 50Hz, 2048x1280 60Hz, 1920x1200 60Hz
Connector & Ports

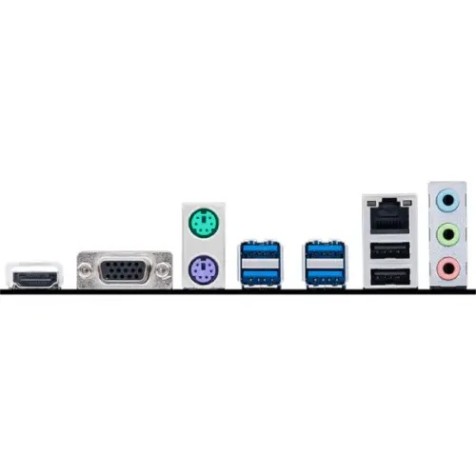

HDMI 1x HDMI
Display Port (s) 1x VGA
USB 2x USB 2.0 (Rear) 4x USB 2.0 (Front) 4x USB 5Gbps Type A (Rear) 2x USB 5Gbps Type A (Front)
LAN Port Realtek RTL8125BG 2.5G LAN
Supported Storage 1x M.2 M.2_1 Source (From CPU) supports up to PCIe 4.0 x4, supports 2280/2260 devices 4x SATA 6G
RAID Supports RAID 0, RAID 1 and RAID 10 for SATA storage devices
Internal I/O Ports 1x Power Connector(ATX_PWR) 1x Power Connector(CPU_PWR) 1x CPU Fan 2x System Fan 2x Front Panel (JFP) 1x Chassis Intrusion (JCI) 1x Front Audio (JAUD) 1x Com Port (JCOM) 1x Addressable V2 RGB LED connector (JARGB_V2) 1x RGB LED connector(JRGB) 1x TPM pin header(Support TPM 2.0) 4x USB 2.0 ports 2x USB 5Gbps Type A ports
TPM (Trusted Platform Module ) 1x TPM pin header(Support TPM 2.0)
Others
Special Features 4x EZ Debug LED
Warranty Information
Manufacturing Warranty 3 Years

MSI PRO A620M-B AM5 mATX Motherboard


The MSI PRO A620M-B is a micro-ATX motherboard designed to provide a solid and cost-effective foundation for AMD's AM5 platform. It's built around the AMD A620 chipset, offering compatibility with AMD Ryzen 9000, 8000, and 7000 series desktop processors. This makes it a future-ready option for users looking to leverage the latest AMD CPU technology. Performance and Memory: This motherboard features two DDR5 DIMM slots that support speeds up to 6800+ MHz (OC) and can accommodate up to 128GB of RAM. It fully supports AMD EXPO memory profiles, allowing for easy memory overclocking and ensuring stability. For storage, the PRO A620M-B includes one PCIe 4.0 x4 M.2 slot for high-speed NVMe SSDs, along with four SATA 6Gb/s ports. RAID 0, 1, and 10 are supported for SATA storage devices, offering flexibility for performance or data redundancy. Connectivity and Graphics: The board is equipped with a PCIe 4.0 x16 slot, which adapts its bandwidth (x16, x8, or x4) depending on the installed Ryzen processor. An additional PCIe 3.0 x1 slot provides further expansion options. For display output, it offers an HDMI 2.1 port capable of 4K at 60Hz and a legacy VGA port, suitable for CPUs with integrated graphics. Networking is handled by a Realtek RTL8125BG 2.5G LAN port for fast wired connections, and the Realtek ALC897 audio codec delivers 7.1-channel high-definition audio. The rear I/O panel provides a range of USB ports, including USB 3.2 Gen 1 5Gbps Type-A, along with audio jacks and a PS/2 port. Design and Features: The compact mATX form factor (215mm x 243.84mm) makes it ideal for smaller PC builds. MSI includes helpful features like EZ Debug LEDs for simplified troubleshooting and headers for RGB lighting. The board is compatible with Windows 11 and Windows 10 64-bit. Overall, the MSI PRO A620M-B is a practical and capable motherboard for users seeking a reliable and affordable entry into the AM5 ecosystem.


Features of MSI PRO A620M-B



  • AMD A620 Chipset: Provides the foundation for the motherboard's functionality.
  • AM5 Socket Support: Compatible with AMD Ryzen™ 9000, 8000, and 7000 Series Desktop Processors, ensuring compatibility with current and future AMD CPUs.
  • DDR5 Memory Support: Features two DDR5 DIMM slots that support speeds up to 6800+(OC) MT/s and a maximum memory capacity of 128GB. It also fully supports AMD EXPO™ memory profiles for easy overclocking and stability.
  • PCIe 4.0 Support: Includes a PCIe 4.0 x16 slot (bandwidth adjusts based on CPU: x16 for 9000/7000 series, x8 for 8700/8600/8400 series, x4 for 8500/8300 series) for graphics cards and a PCIe 4.0 x4 M.2 slot for high-speed NVMe SSDs.
  • PCIe 3.0 Expansion: An additional PCIe 3.0 x1 slot offers further expansion options.
  • M.2 Slot: One M.2 slot (M.2_1) with PCIe 4.0 x4 support, capable of handling 2280/2260 device sizes.
  • SATA 6Gb/s Ports: Four SATA 6Gb/s ports are available for traditional hard drives and SSDs.
  • RAID Support: Supports RAID 0, RAID 1, and RAID 10 for SATA storage devices, allowing for performance optimization or data redundancy.
  • 2.5G LAN: Equipped with a Realtek RTL8125BG 2.5 Gigabit LAN controller for fast and reliable wired network connectivity.
  • Integrated Graphics Outputs: Includes an HDMI™ 2.1 port supporting up to 4K 60Hz resolution and a VGA port (for CPUs with integrated graphics).
  • USB Ports: Offers a range of USB connectivity, including USB 3.2 Gen 1 5Gbps Type-A ports (both rear and front) and USB 2.0 ports (rear and front).
  • PS/2 Port: Includes a PS/2 combo port for keyboard and mouse compatibility.
  • Realtek ALC897 Codec: Delivers 7.1-Channel High Definition Audio for an immersive sound experience.
  • EZ Debug LED: Four onboard LEDs that help diagnose boot-related issues quickly.
  • RGB LED Connectors: Includes headers for Addressable V2 RGB (JARGB_V2) and standard RGB (JRGB) lighting, allowing for customizable aesthetics.
  • TPM Pin Header: Supports Trusted Platform Module (TPM 2.0) for enhanced system security.
  • BIOS Flash Button: Allows for easy BIOS updates without requiring a CPU, RAM, or graphics card installed.
  • Micro-ATX (mATX) Form Factor: A compact size (215mm x 243.84mm) making it suitable for smaller PC cases.
  • Windows Compatibility: Supports Windows 11 and Windows 10 64-bit operating systems.
