AMD Ryzen™ 7000, 8000, and 9000 series desktop processors
DDR5 Memory Support, overclocking capability of up to 7200+ MHz
12+2+1 Duet Rail Power System (Core Boost)
Wi-Fi 6E, 2.5G LAN, USB 3.2 Gen 2x2 Type-C
অর্ডার করার পূর্বে কাস্টমার কেয়ার থেকে পন্যের স্টক ও ডেলিভারি সম্পর্কে জেনে নেয়ার অনুরোধ করা যাচ্ছে। প্রযুক্তি পণ্যের মূল্য অস্থিতিশীল হওয়ায় কারণে যেকোন মুহূর্তে যেকোন প্রযুক্তি পণ্যের মূল্য পরিবর্তন হতে পারে।
Realtek ALC897 Codec
7.1-Channel High Definition Audio
Expansion Slots
PCI
2x PCI-E x16 slot
1x PCI-E x1 slot
PCI_E1 Gen PCIe 4.0 supports up to x16 (From CPU)
PCI_E2 Gen PCIe 3.0 supports up to x1 (From Chipset)
PCI_E3 Gen PCIe 4.0 supports up to x4 (From Chipset)
Memory
Type
DDR5
Slots
4 DIMMs
Supported Memory
Memory Support DDR5 7200+(OC)/ 7000(OC)/ 6800(OC)/ 6600(OC)/ 6400(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(OC)/ 5400(OC)/ 5200(OC)/ 5000(OC)/ 4800(JEDEC) MHz
Max. overclocking frequency:
1DPC 1R Max speed up to 7200+ MHz
1DPC 2R Max speed up to 6000+ MHz
2DPC 1R Max speed up to 6000+ MHz
2DPC 2R Max speed up to 5400+ MHz
Supports Dual-Channel mode
Supports non-ECC, un-buffered memory
Supports AMD EXPO
Maximum Memory
192GB
Graphics
Graphics
1x HDMI
1x DisplayPort
Support HDMI 2.1, maximum resolution of 4K 60Hz
Supports DP1.4, maximum resolution of 4K 60Hz
Connector & Ports
HDMI
1x HDMI
Display Port (s)
1x DisplayPort
USB
4x USB 2.0 (Front)
4x USB 3.2 Gen1 Type A (Rear)
2x USB 3.2 Gen1 Type A (Front)
3x USB 3.2 Gen2 Type A (Rear)
1x USB 3.2 Gen2 Type C (Front)
1x USB 3.2 Gen2x2 Type C (Rear)
LAN Port
Realtek 8125BG 2.5G LAN
Supported Storage
2x M.2
M.2_1 Source (From CPU) supports up to PCIe 4.0 x4 , supports 22110/2280 devices
M.2_2 Source (From CPU) supports up to PCIe 4.0 x4 , supports 2280/2260 devices
4x SATA 6G
RAID
Supports RAID 0 and RAID 1 for SATA storage devices
Supports RAID 0 and RAID 1 for M.2 NVMe storage devices
Internal I/O Ports
INTERNAL IO:
1x Power Connector(ATX_PWR)
2x Power Connector(CPU_PWR)
1x CPU Fan
1x Pump Fan
4x System Fan
2x Front Panel (JFP)
1x Chassis Intrusion (JCI)
1x Front Audio (JAUD)
1x Com Port (JCOM)
1x Tuning Controller connector(JDASH)
2x Addressable V2 RGB LED connector (JARGB_V2)
2x RGB LED connector(JRGB)
1x TPM pin header(Support TPM 2.0)
4x USB 2.0 ports
2x USB 3.2 Gen1 Type A ports
1x USB 3.2 Gen2 Type C ports

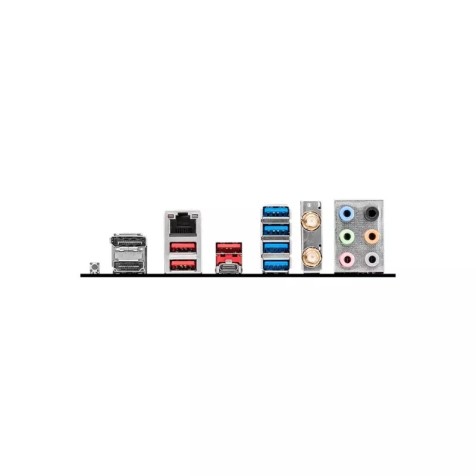

BACK PANEL PORTS:
DisplayPort
2.5G LAN
USB 3.2 Gen 2 10Gbps (Type-A)
USB 3.2 Gen 1 5Gbps (Type-A)
Wi-Fi / Bluetooth
Audio connectors
Flash BIOS Button
HDMI
USB 3.2 Gen 2 10Gbps (Type-A)
USB 3.2 Gen 2x2 20Gbps (Type-C)
TPM (Trusted Platform Module )
1x TPM pin header(Support TPM 2.0)
Others
Special Features
4x EZ Debug LED
Warranty Information
Manufacturing Warranty
3 Years

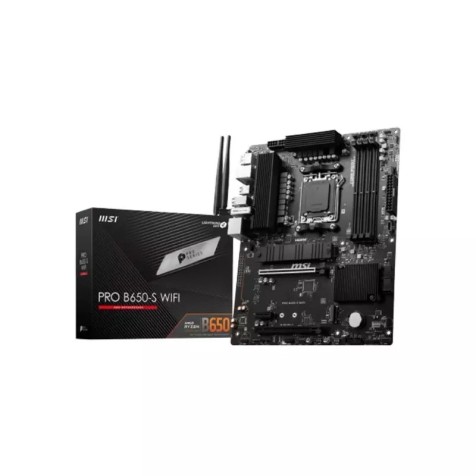

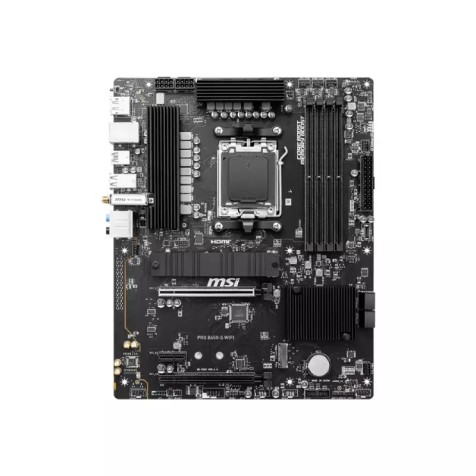

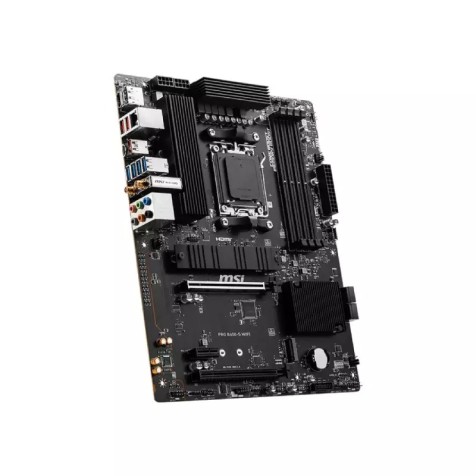

MSI PRO B650-S WIFI DDR5 AM5 ATX Motherboard
The MSI PRO B650-S WIFIis a full-featured ATX motherboard designed to provide a robust and reliable foundation for AMD Ryzen™ 7000, 8000, and 9000 series desktop processors using the AM5 socket. Built on the AMD B650 chipset, it balances performance and value, making it an excellent choice for productivity-focused users and gamers alike. The motherboard supports the latest DDR5 memory, with four DIMM slots allowing for a massive 192GB maximum capacity and overclocking speeds up to 7200+ MHz. This enables fast multitasking and demanding workloads. For expansion, it includes two PCIe 4.0 x16 slots and one PCIe 3.0 x1 slot. The primary M.2 slots are PCIe 4.0 x4, ensuring blazing-fast speeds for NVMe SSDs, and there are also four SATA 6Gb/s ports for traditional storage drives. The PRO B650-S WIFI excels in connectivity. It features a Realtek 2.5G LAN for a stable, high-speed wired network connection and a pre-installed Wi-Fi 6E module with Bluetooth 5.3 for a fast and reliable wireless experience. Rear I/O ports are extensive, including a USB 3.2 Gen 2x2 Type-C port for 20Gbps data transfer, multiple USB 3.2 Gen 2 and Gen 1 ports, as well as HDMI and DisplayPort outputs for integrated graphics. The motherboard also incorporates several premium design elements, such as a 6-layer PCB with 2oz thickened copper for improved signal integrity and thermal efficiency, and MSI's Core Boost technology with a 12+2+1 power phase design for stable power delivery. This ensures optimal performance for even high-end processors. For easy troubleshooting, the EZ Debug LED lights simplify the process of diagnosing boot issues.
Features of MSI PRO B650-S WIFI
CPU Support: It supports AMD Ryzen™ 7000, 8000, and 9000 series desktop processors with the AM5 socket.
Chipset: Built on the AMD B650 chipset, it provides a solid foundation with support for modern technologies.
Memory: It features four DDR5 DIMM slots, supporting up to 192GB of dual-channel memory with overclocked speeds of up to 7200+ MHz. It also supports AMD EXPO for easy memory overclocking.
Power Design: The motherboard incorporates a robust 12+2+1 Duet Rail Power System with dual 8-pin CPU power connectors and MSI's Core Boost technology, ensuring stable and efficient power delivery for high-performance CPUs.
PCIe 4.0: The board is equipped with two PCIe 4.0 x16 slots for high-speed graphics cards and other expansion cards. The primary slot is reinforced with "Steel Armor" to support the weight of heavy GPUs.
M.2 Storage: It includes two M.2 Gen4 x4 slots, providing a fast 64 Gbps bandwidth for NVMe SSDs, with M.2 Shield Frozr heatsinks to prevent thermal throttling.
SATA Ports: For traditional storage, there are four SATA 6Gb/s ports.
Networking: The PRO B650-S WIFI offers excellent networking capabilities with a Realtek 2.5G LAN for a fast and stable wired connection, and a pre-installed Wi-Fi 6E module with Bluetooth 5.3 for high-speed wireless connectivity across the 2.4GHz, 5GHz, and 6GHz bands.
USB Ports: It has a wide array of USB ports, including a super-fast USB 3.2 Gen 2x2 Type-C port on the rear panel for 20Gbps data transfer, as well as multiple USB 3.2 Gen 2 (10Gbps) and USB 3.2 Gen 1 (5Gbps) ports.
Display Outputs: The rear I/O includes HDMI 2.1 and DisplayPort 1.4 for use with CPUs that have integrated graphics.
Audio: It features a Realtek ALC897 codec, providing 7.1-channel high-definition audio with MSI's Audio Boost technology.
DIY Friendly: The motherboard is designed with user-friendly features like an enlarged PCIe clip, an EZ Debug LED for easy troubleshooting, and a dedicated Flash BIOS button to update the BIOS without installing a CPU, memory, or graphics card.
Cooling: It is equipped with a premium thermal solution, including VRM and chipset heatsinks, to maintain system stability under load.
