Realtek ALC897 Codec
7.1-Channel High Definition Audio
Expansion Slots
PCI
1x PCI-E x16 slot
Supports x16 (For Ryzen 9000/ 7000 Series processors)
Supports x8 (For Ryzen™ 8700/ 8600/ 8400 Series processors)
Supports x4 (For Ryzen™ 8500/ 8300 Series processors)
1x PCI-E x1 slot
PCI_E1 Gen PCIe 4.0 supports up to x16 (From CPU)
PCI_E2 Gen PCIe 3.0 supports up to x1 (From Chipset)
Memory
Type
DDR5
Slots
2 x UDIMM
Supported Memory
Memory Support DDR5 6800+(OC)/ 6600(OC)/ 6400(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(OC)/ 5400(OC)/ 5200(OC)/ 5000(OC)/ 4800(JEDEC) MHz
Max. overclocking frequency:
1DPC 1R Max speed up to 6800+ MHz
1DPC 2R Max speed up to 6000+ MHz
Supports Dual-Channel mode
Supports non-ECC, un-buffered memory
Supports AMD EXPO
Maximum Memory
128GB
Graphics
Graphics
1x HDMI
Support HDMI 2.1, maximum resolution of 4K 60Hz
1x DisplayPort
Support DisplayPort 1.4, maximum resolution of 4K 60Hz
Connector & Ports
HDMI
1x HDMI 2.1
Display Port (s)
1 HDMI™ 2.1 port and 1 VGA port
USB
2x USB 2.0 (Rear)
4x USB 2.0 (Front)
4x USB 5Gbps Type A (Rear)
2x USB 5Gbps Type A (Front)
LAN Port
Realtek RTL8111H Gigabit LAN
Supported Storage
1x M.2
M.2_1 Source (From CPU) supports up to PCIe 4.0 x4 , supports 2280/2260 devices
4x SATA 6G
RAID
Supports RAID 0, RAID 1 and RAID 10 for SATA storage devices
Internal I/O Ports
1x Power Connector(ATX_PWR)
1x Power Connector(CPU_PWR)
1x CPU Fan
2x System Fan
2x Front Panel (JFP)
1x Chassis Intrusion (JCI)
1x Front Audio (JAUD)
1x Com Port (JCOM)
1x RGB LED connector(JRGB)
1x TPM pin header(Support TPM 2.0)
4x USB 2.0 ports
2x USB 5Gbps Type A ports
TPM (Trusted Platform Module )
1x TPM pin header(Support TPM 2.0)
Others
Special Features
4x EZ Debug LED
Warranty Information
Manufacturing Warranty
3 Years Warranty

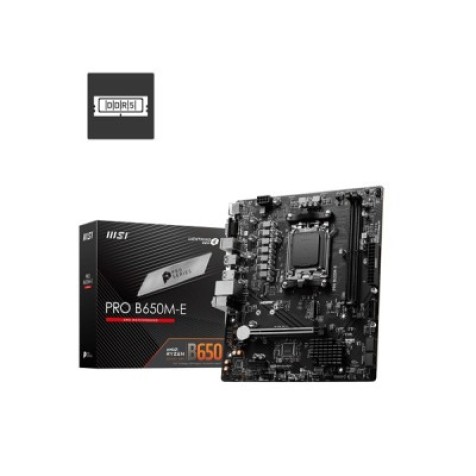

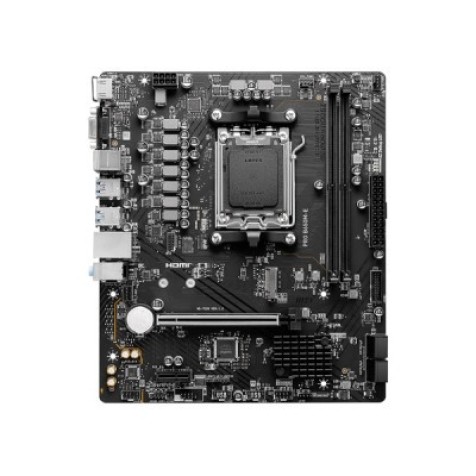

MSI PRO B650M-E AM5 mATX Motherboard
The MSI PRO B650M-E is a micro-ATX motherboard designed to serve as a reliable and affordable foundation for AMD Ryzen 7000 series desktop builds. It leverages the AM5 socket, supporting the latest generation of CPUs with a focus on essential features for everyday computing and light gaming. Built on the AMD B650 chipset, this motherboard provides a stable platform with sufficient connectivity for a modern PC. It supports DDR5 memory, allowing builders to take advantage of faster memory speeds for improved system responsiveness and performance. The mATX form factor makes it an excellent choice for compact PC cases, ideal for users who want to build a space-saving workstation or a discreet gaming rig. For storage, the PRO B650M-E includes a high-speed M.2 slot that utilizes PCIe 4.0, enabling lightning-fast NVMe SSDs for quick boot times and rapid data access. Additionally, it offers four SATA 6Gb/s ports for traditional hard drives or SATA-based SSDs, providing flexible storage expansion options. The motherboard's connectivity suite includes a variety of USB ports, including both USB 3.2 Gen 1 Type-A and USB 2.0, to accommodate a wide range of peripherals. It also features a Gigabit Ethernet port for reliable wired internet access. On the video front, it provides an HDMI and a VGA port, which are particularly useful for systems built with AMD CPUs that have integrated graphics. Designed with MSI's PRO series philosophy, the B650M-E focuses on stability and durability. It incorporates a reinforced power delivery system and efficient cooling solutions to ensure steady performance under load. This no-frills, reliable design makes it a solid choice for entry-level builds, business PCs, and anyone looking for a dependable and cost-effective motherboard for their AM5-based system.
Features of MSI PRO B650M-E
CPU Support: It uses the AMD AM5 socket, providing native support for the latest AMD Ryzen 7000 Series desktop processors.
Memory: It supports DDR5 memory, allowing for faster data transfer speeds and improved system performance. The motherboard includes two DDR5 DIMM slots.
Form Factor: It has a micro-ATX (mATX) form factor, making it suitable for compact PC builds and smaller cases.
M.2 Slot: Features a single PCIe 4.0 x4 M.2 slot, which provides high-speed storage for NVMe SSDs, enabling fast boot times and rapid data access.
SATA Ports: Includes four SATA 6Gb/s ports for connecting traditional 2.5-inch SSDs or 3.5-inch HDDs.
PCIe Slot: Has one PCIe 4.0 x16 slot for graphics cards and two additional PCIe 3.0 x1 slots for other expansion cards.
Power Design: Utilizes a reinforced power delivery system with an effective heatsink on the VRM to ensure stable and reliable power to the CPU.
Cooling: It features a fan header system that allows for customizable fan control to optimize system temperatures.
USB Ports: A variety of USB ports on the rear I/O, including USB 3.2 Gen 1 Type-A and USB 2.0, to accommodate a wide range of peripherals.
Networking: Equipped with a Gigabit Ethernet LAN controller for a stable and fast wired internet connection.
Video Output: Provides built-in video output ports (HDMI and VGA) for use with Ryzen CPUs that have integrated graphics (APUs).
EZ Debug LED: This feature includes a series of LEDs that indicate the source of a startup issue (CPU, DRAM, VGA, Boot), making troubleshooting much easier.
Core Boost: MSI's proprietary technology designed to optimize the digital power phases and layout for efficient power delivery to the CPU.
Steel Armor: The main PCIe slot is reinforced with steel to prevent bending and damage from heavy graphics cards.
Audio: Uses a standard high-definition audio codec (Realtek ALC-series) for 7.1-channel HD Audio.
