Maximum capacity of 256GB and overclocking speeds of over 8200+ MHz
PCIe 5.0, Wi-Fi 7, 5G LAN, USB 40Gbps Type-C.
Frozr Guard and M.2 Shield Frozr
অর্ডার করার পূর্বে কাস্টমার কেয়ার থেকে পন্যের স্টক ও ডেলিভারি সম্পর্কে জেনে নেয়ার অনুরোধ করা যাচ্ছে। প্রযুক্তি পণ্যের মূল্য অস্থিতিশীল হওয়ায় কারণে যেকোন মুহূর্তে যেকোন প্রযুক্তি পণ্যের মূল্য পরিবর্তন হতে পারে।
4x PCI-E x16 slot
PCI_E1 Gen PCIe 5.0 supports up to x16 (From CPU)
PCI_E2 Gen PCIe 3.0 supports up to x1 (From Chipset)
PCI_E3 Gen PCIe 3.0 supports up to x1 (From Chipset)
PCI_E4 Gen PCIe 4.0 supports up to x4 (From Chipset)
PCI_E1 slot
• Supports PCIe 5.0 x16 (For Ryzen™ 9000/ 7000 Series processors)
• Supports PCIe 4.0 x8 (For Ryzen™ 8700/ 8600/ 8400 Series processors)
• Supports PCIe 4.0 x4 (For Ryzen™ 8500/ 8300 Series processor)
Memory
Type
DDR5
Slots
4x UDIMM
Supported Memory
Support DDR5 8200+(OC)/ 8000+(OC)/ 7800(OC)/ 7600(OC)/ 7400(OC)/ 7200(OC)/ 7000(OC)/ 6800(OC)/ 6600(OC)/ 6400(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(JEDEC)/ 5400(JEDEC)/ 5200(JEDEC)/ 5000(JEDEC)/ 4800(JEDEC) MT/s
Ryzen™ 9000 Series Processors max. overclocking frequency:
• 1DPC 1R Max speed up to 8200+ MT/s
• 1DPC 2R Max speed up to 6400+ MT/s
• 2DPC 1R Max speed up to 6400+ MT/s
• 2DPC 2R Max speed up to 4800+ MT/s
Supports AMD POR Speed and JEDEC Speed
Supports Memory Overclocking and AMD EXPOTM
Supports Dual-Channel mode
Supports Non-ECC, Un-buffered memory
Supports CUDIMM, Clock Driver bypass mode only
Maximum Memory
256GB
Graphics
Graphics
1x HDMI
Support HDMITM 2.1, maximum resolution of 4K 60Hz*
1x Type-C DisplayPort
USB4 port, supporting DisplayPort 1.4 with HBR3 over USB Type-C, maximum resolution of 4K 60Hz*

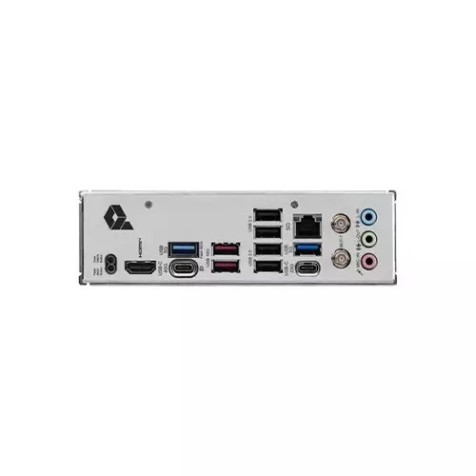

Connector & Ports
HDMI
1x HDMI
Display Port (s)
1x Type-C DisplayPort
USB
4x USB 2.0 (Rear)
4x USB 2.0 (Front)
2x USB 5Gbps Type A (Rear)
2x USB 5Gbps Type A (Front)
2x USB 10Gbps Type A (Rear)
1x USB 10Gbps Type C (Front)
1x USB 20Gbps Type C (Rear)
1x USB 40Gbps Type C (Rear)
LAN Port
Realtek 8126VB 5G LAN
Supported Storage
3x M.2
M.2_1 Source (From CPU) supports up to PCIe 5.0 x4 , supports 2280/2260 devices
M.2_2 Source (From Chipset) supports up to PCIe 4.0 x4 , supports 22110/2280 devices
M.2_3 Source (From Chipset) supports up to PCIe 4.0 x2 , supports 2280/2260 devices
M2_1 slot
• Supports up to PCIe 5.0 x4 (For Ryzen 9000/ 7000 Series processors)
• Supports up to PCIe 4.0 x4 (For Ryzen 8700/ 8600/ 8400 Series processors)
RAID
Supports RAID 0 and RAID 1 for M.2 NVMe storage devices
Internal I/O Ports
2x Thunderbolt5 card connector(JTBT5, support RTD3)
1x Power Connector(ATX_PWR)
2x Power Connector(CPU_PWR)
1x Power Connector(PCIE_PWR 8pin)
1x CPU Fan
1x Combo Fan (Pump_Sys Fan)
6x System Fan
2x Front Panel (JFP)
1x Chassis Intrusion (JCI)
1x Front Audio (JAUD)
1x Tuning Controller connector(JDASH)
3x Addressable V2 RGB LED connector (JARGB_V2)
1x RGB LED connector(JRGB)
4x USB 2.0 ports
2x USB 5Gbps Type A ports
1x USB 10Gbps Type C ports
TPM (Trusted Platform Module )
1x TPM pin header(Support TPM 2.0)
Others
Special Features
4x EZ Debug LED
Warranty Information
Manufacturing Warranty
3 Years

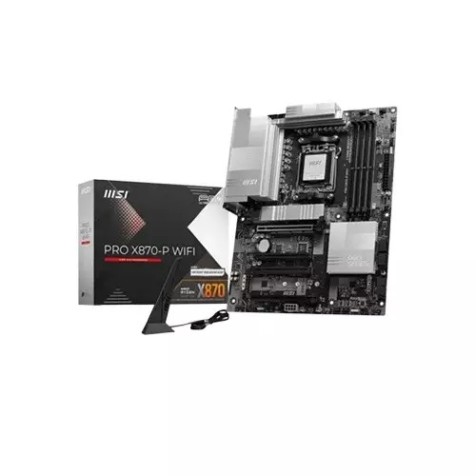

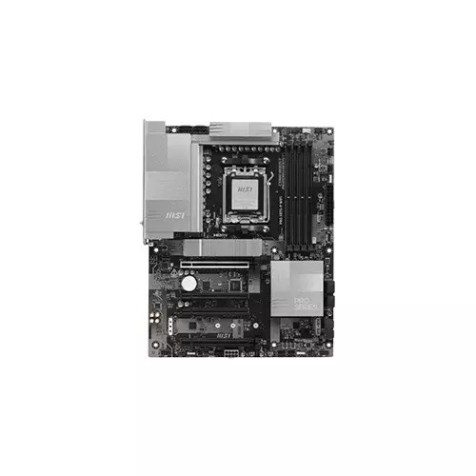

MSI PRO X870-P WIFI AM5 ATX Motherboard
The MSI PRO X870-P WIFIis a high-performance ATX motherboard built for the next generation of AMD systems. Utilizing the new AMD X870 chipset and the AM5 socket, this board is designed to unleash the full potential of AMD Ryzen™ 9000, 8000, and 7000 series desktop processors. It is part of MSI's PRO series, which focuses on providing a professional, stable, and reliable platform for content creators, professionals, and serious gamers. One of the standout features is its robust power delivery, with a 14+2+1 Duet Rail Power System and dual 8-pin CPU power connectors. This design ensures stable and efficient power to the CPU, crucial for maintaining performance under heavy loads like gaming, video editing, and complex computations. The board supports the latest DDR5 memory, with four DIMM slots allowing for a massive 256GB capacity and overclocked speeds exceeding 8200+ MHz. The PRO X870-P WIFI is built for future-proof connectivity. It includes a PCIe 5.0 x16 slot for the fastest graphics cards and supports up to three M.2 slots, with one operating at PCIe 5.0 x4 for lightning-fast NVMe SSDs. For networking, it boasts a 5G LAN port and the latest Wi-Fi 7 technology with Bluetooth 5.4, providing unparalleled wired and wireless speeds. The board also features a variety of high-speed USB ports, including a USB 40Gbps Type-C port and a Thunderbolt 5 card connector, catering to professionals who need rapid data transfer and versatile peripheral support. Its extensive heatsink design with M.2 Shield Frozr ensures all components stay cool for peak performance.
Features of MSI PRO X870-P WIFI
AMD AM5 Socket and X870 Chipset: It is built on the new AMD X870 chipset, providing native support for the upcoming AMD Ryzen™ 9000 series processors, along with full compatibility for Ryzen™ 8000 and 7000 series CPUs.
DDR5 Memory Support: With four DDR5 DIMM slots, it supports a massive 256GB maximum memory capacity and boasts overclocking speeds of over 8200+ MHz, enabling superior performance for memory-intensive applications and games.
PCIe 5.0: The motherboard includes a primary PCIe 5.0 x16 slot for the latest graphics cards and a PCIe 5.0 x4 M.2 slot for future-proof, ultra-fast SSDs.
Wi-Fi 7: It features the latest Wi-Fi 7 wireless standard, which offers significantly higher speeds and lower latency compared to previous generations.
5G LAN: A Realtek 5Gbps LAN port provides a blazing-fast wired connection for demanding network tasks.
High-Speed USB: It includes a USB 40Gbps Type-C port on the rear I/O, which is a major upgrade for rapid data transfer with external storage and peripherals. There are also multiple other USB 20Gbps, 10Gbps, and 5Gbps ports.
14+2+1 Duet Rail Power System: This professional-grade power design with dual 8-pin CPU power connectors ensures a stable and reliable power supply to the CPU, even under extreme loads.
Frozr Guard: The motherboard is equipped with an extended heatsink design and M.2 Shield Frozr on its M.2 slots to effectively dissipate heat and prevent thermal throttling of high-speed components.
User-Friendly Features: It includes DIY-friendly elements like a pre-installed I/O shield, EZ Debug LEDs for troubleshooting, and an EZ M.2 Shield Frozr for simplified SSD installation.
