Supported CPU: 14th/13th/12th Gen Intel Processors (LGA1700)
অর্ডার করার পূর্বে কাস্টমার কেয়ার থেকে পন্যের স্টক ও ডেলিভারি সম্পর্কে জেনে নেয়ার অনুরোধ করা যাচ্ছে। প্রযুক্তি পণ্যের মূল্য অস্থিতিশীল হওয়ায় কারণে যেকোন মুহূর্তে যেকোন প্রযুক্তি পণ্যের মূল্য পরিবর্তন হতে পারে।

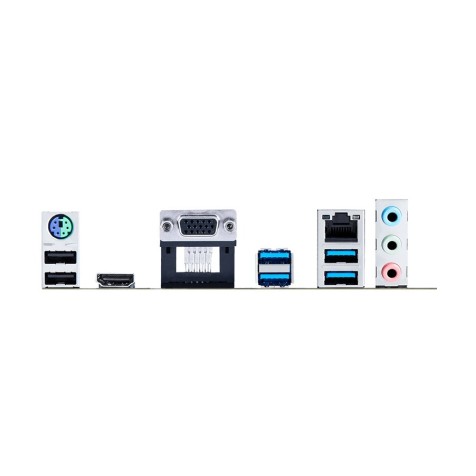

Rear USB (Total 6 ports)
4 x USB 3.2 Gen 1 ports (4 x Type-A)
2 x USB 2.0 ports (2 x Type-A)
Front USB (Total 6 ports)
1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports
2 x USB 2.0 headers support additional 4 USB 2.0 ports
LAN Port
1 x Realtek 2.5Gb Ethernet port
Supported Storage
Total supports 2 x M.2 slots and 4 x SATA 6Gb/s ports
Intel Core Processors (14th & 13th & 12th Gen)
M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode)
M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode)
4 x SATA 6Gb/s ports
RAID
Intel Rapid Storage Technology supports SATA RAID 0/1/5/10.
Internal I/O Ports
Internal I/O Connectors
Fan and cooling related
1 x 4-pin CPU Fan header
2 x 4-pin Chassis Fan headers
Power related
1 x 24-pin Main Power connector
1 x 8-pin +12V Power connector
Storage related
2x M.2 slots (Key M)
4 x SATA 6Gb/s ports
USB
1 x USB 3.2 Gen 1 (5G) header supports additional 2 USB 3.2 Gen 1 ports
2 x USB 2.0 headers support additional 3 USB 2.0 ports
Miscellaneous
1 x Clear CMOS header
1 x COM Port header
1 x Front Panel Audio header (AAFP)
1 x Speaker header
1 x 10-1 pin System Panel header
TPM (Trusted Platform Module )
Yes
Others
Special Features
ASUS 5X PROTECTION III
- DIGI+ VRM
- LANGuard
- Overvoltage Protection
- SafeSlot Core+
- Stainless-Steel Back I/O
ASUS Q-Design
- Q-DIMM
- Q-Slot
- Q-LED Core
ASUS EZ DIY
- ProCool
Non-stop Action
- Lightning Boot
Non-stop Challenger
- ASUS iCafe labs certified
Non-stop Durability
- Luminous anti-moisture coating
- USBGuard
Warranty Information
Manufacturing Warranty
3 years warranty

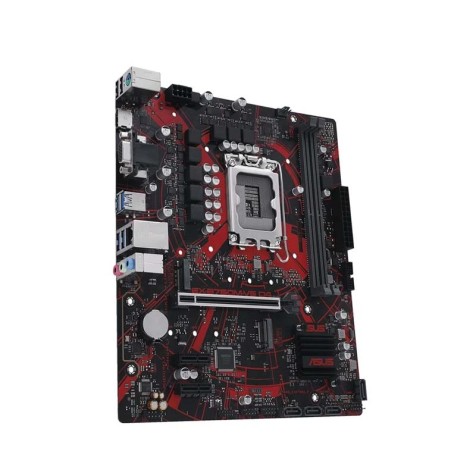

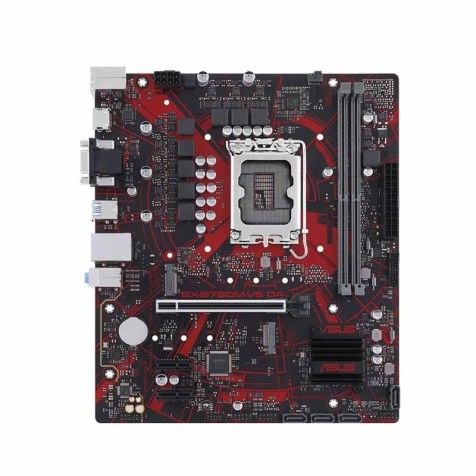

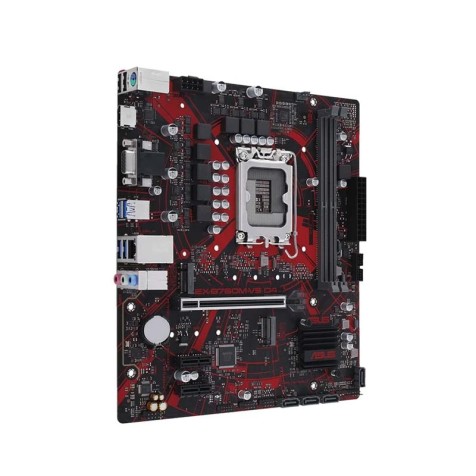

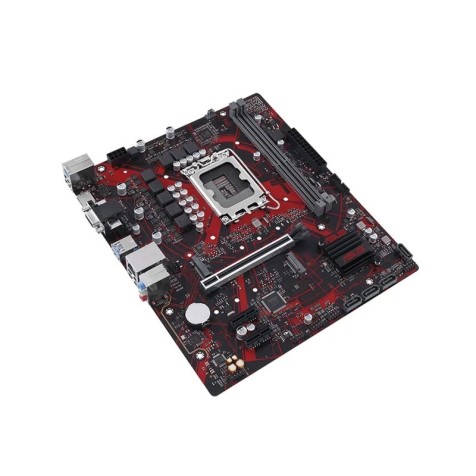

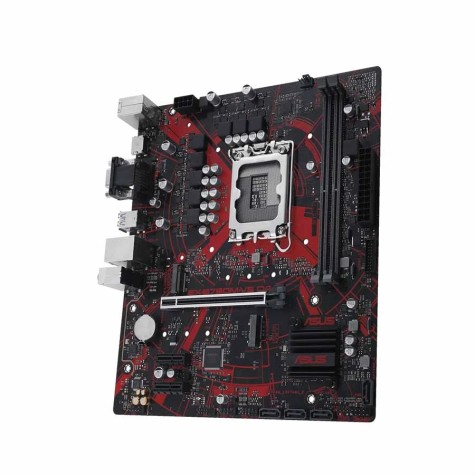

ASUS EX-B760M-V5 D4 mATX Motherboard
The ASUS EX-B760M-V5 D4 is a Micro-ATX motherboard from the ASUS Expedition series, specifically designed for durability and stability in demanding, 24/7 operating environments like internet cafés, schools, and business settings. Built on the Intel B760 chipset with the LGA 1700 socket, it provides a reliable and robust platform for 12th, 13th, and 14th Gen Intel Core processors. This motherboard prioritizes long-term reliability over flashy features, making it a dependable choice for mission-critical systems.A key feature of the EX-B760M-V5 D4 is its focus on longevity. It's engineered to be "Non-stop" with a focus on durability. The board is coated with a Luminous Anti-Moisture Coating to prevent damage from humid conditions, a common issue in many environments. It also features USBGuard, a surge-protection technology for USB ports, and is built with extra-thick power pins to handle higher current loads. For memory, it supports DDR4 RAM with two DIMM slots, allowing for a maximum of 64GB and speeds up to 5333MHz (OC). It is equipped with a PCIe 4.0 x16 slot for graphics cards and a single M.2 slot that supports PCIe 4.0 x4 NVMe SSDs, providing fast storage options. The board also includes a comprehensive set of connectivity options, including a Realtek 2.5Gb Ethernet port and a variety of USB ports, ensuring a stable and secure connection.
Features of ASUS EX-B760M-V5 D4
Luminous Anti-Moisture Coating: This is a hallmark of the Expedition series. The board has a special coating that helps prevent corrosion and damage from humid environments. It even glows under UV light, allowing you to see where the coating has been applied.
USBGuard: This exclusive technology provides a higher overvoltage tolerance for USB ports, protecting your connected peripherals and the motherboard from power fluctuations.
SafeSlot Core+: The PCIe 4.0 x16 slot is fortified with a one-piece stainless steel brace and additional solder points to provide superior resistance to heavy graphics cards.
Stainless-Steel Back I/O: The I/O shield is made from corrosion-resistant stainless steel, increasing its lifespan.
5X Protection III: A suite of hardware safeguards that includes LANGuard for network protection and overvoltage protection for power stability.
iCafe Labs Certified: The board is tested and certified for compatibility with diskless systems and other demanding environments, ensuring reliable performance in internet cafes and similar settings.
CPU Support: It uses the LGA 1700 socket and Intel B760 chipset, making it compatible with 12th, 13th, and 14th Generation Intel Core, Pentium Gold, and Celeron processors.
Memory: It has two DDR4 DIMM slots, supporting a maximum of 64GB of RAM at speeds up to 5333MHz (OC).
Expansion & Storage: It features a PCIe 4.0 x16 slot for graphics cards and two PCIe 4.0 x4 M.2 slots for high-speed NVMe SSDs. It also has four SATA 6Gb/s ports.
Networking: A Realtek 2.5Gb Ethernet port provides faster network speeds compared to standard Gigabit LAN.
ProCool Connector: This is a proprietary power connector with solid pins that can handle higher current, ensuring a stable power delivery to the CPU.
Q-LED Core: Diagnostic LEDs help users quickly identify the source of boot-up issues with the CPU, RAM, GPU, or boot drive.
Lightning Boot: A feature that is part of the "Non-stop" philosophy, designed to provide a faster BIOS boot-up time.
UEFI BIOS: An intuitive graphical interface for system configuration and monitoring.
