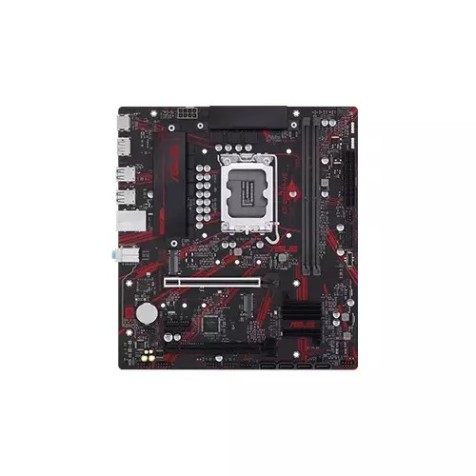

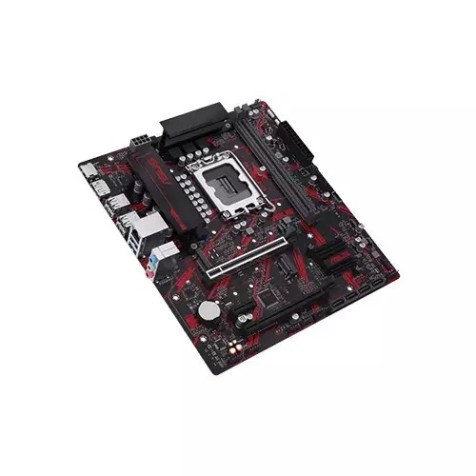

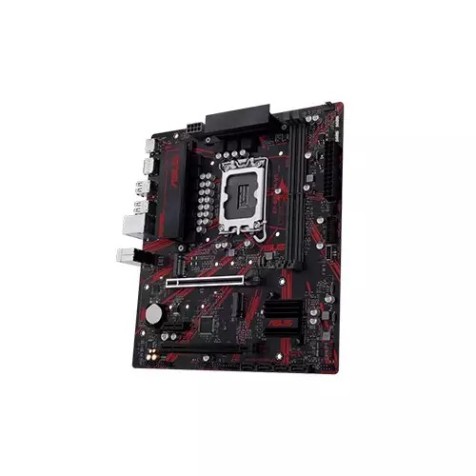

Asus EX-B860M-V5 LGA 1851 Micro-ATX Motherboard
The ASUS EX-B860M-V5 is a Micro-ATX motherboard from the Expedition series, which is specifically engineered for long-term stability and non-stop durability. It is designed to be a reliable and robust platform for demanding environments like internet cafes, corporate offices, and for users who require a dependable 24/7 system. Based on the Intel B860 chipset and the LGA 1851 socket, this motherboard is ready for the latest Intel Core Ultra Processors (Series 2). A key feature is its support for high-speed DDR5 memory. It has two DIMM slots that can handle up to a massive 128GB of RAM with overclocked speeds reaching over 8800 MT/s, providing substantial performance for heavy workloads. For expansion, it includes a PCIe 4.0 x16 slot for a graphics card and another PCIe 4.0 x16 slot that operates in x4 mode, along with a PCIe 4.0 x1 slot. The storage options are impressive, with two M.2 slots, including one that supports blazing-fast PCIe 5.0 x4 NVMe SSDs, and four SATA 6Gb/s ports. The EX-B860M-V5 is built for extreme reliability with an exclusive Luminous Anti-Moisture Coating to protect against humidity. It also features USBGuard for overvoltage protection and ASUS LANGuard for surge protection. With a Realtek 2.5Gb Ethernet port and a variety of USB ports, including a front USB 5Gbps Type-C connector, this motherboard delivers robust connectivity and uncompromising durability.
Features of Asus EX-B860M-V5
- LGA 1851 Socket: This is a new socket designed for the upcoming Intel Core Ultra Processors (Series 2), making the motherboard a future-proof option.
- Intel B860 Chipset: Provides a stable and feature-rich platform for the new generation of Intel processors.
- DDR5 Memory: It has two DIMM slots supporting up to 128GB of DDR5 RAM. It can handle overclocked speeds of over 8800 MT/s and supports Intel's XMP and ASUS's AEMP III for easy performance tuning.
- PCIe 5.0 and 4.0 Support: A key highlight is its storage options. It includes two M.2
- Slots:One M.2 slot supports the new PCIe 5.0 x4 for ultra-fast SSDs. The second M.2 slot supports PCIe 4.0 x4.
- PCIe Slots: It includes a PCIe 4.0 x16 slot for a graphics card, another PCIe 4.0 x16 slot that operates in x4 mode, and a PCIe 4.0 x1 slot for additional expansion cards.
- SATA Ports: There are four SATA 6Gb/s ports, and the board supports Intel Rapid Storage Technology for SATA RAID 0, 1, 5, and 10 configurations.
- Wired Network: A Realtek 2.5Gb Ethernet port is included for high-speed wired connections, with ASUS LANGuard for surge protection.
- USB Ports: It provides a range of USB ports, including USB 5Gbps (Type-A and a front-panel Type-C) and USB 2.0 ports.
- Display Outputs: For integrated graphics, it has a DisplayPort 1.4 and an HDMI 2.1 port, both supporting 4K resolution at 60Hz.
- Luminous Anti-Moisture Coating: An exclusive coating protects the motherboard from humidity, making it ideal for high-humidity environments.
- SBGuard: Provides 120% higher overvoltage tolerance on specific USB ports to protect connected devices.
- ASUS 5X Protection III: This suite of hardware safeguards includes features like DIGI+ VRM, Overvoltage Protection, and a corrosion-resistant Stainless-Steel back I/O.
- Self-Recovering BIOS: A business-centric feature that automatically restores the BIOS to the last successful state, minimizing downtime.
