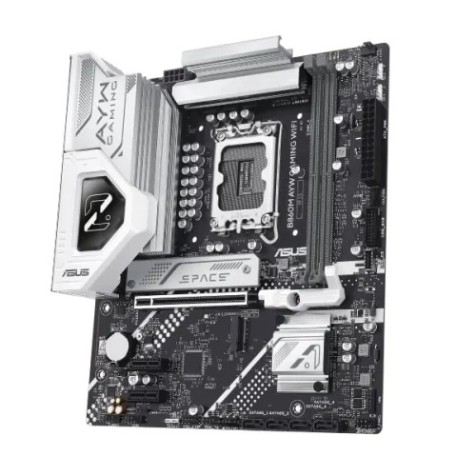

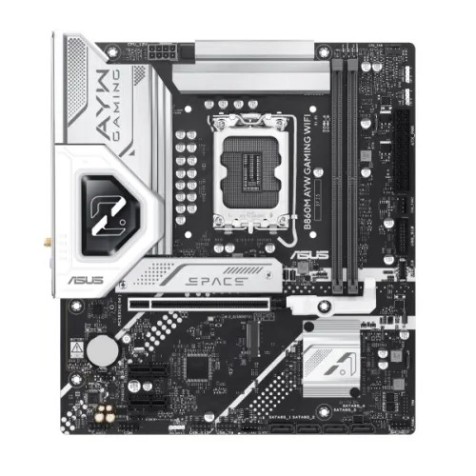

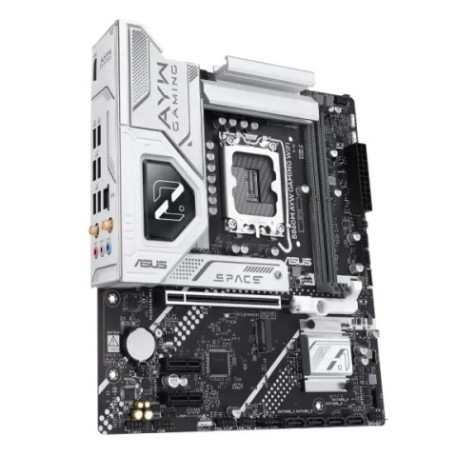

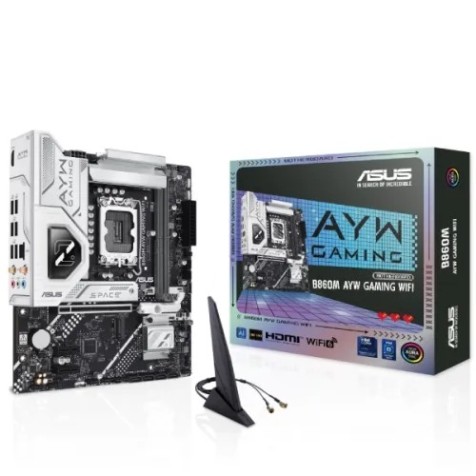

ASUS B860M AYW GAMING WIFI LGA 1851 Micro-ATX Motherboard
The ASUS B860M AYW GAMING WIFI is a micro-ATX motherboard designed for Intel Core Ultra Processors (Series 2) with the LGA 1851 socket, making it a compact yet powerful foundation for modern gaming and productivity PCs. It's powered by the Intel B860 chipset and supports up to 128GB of DDR5 RAM, with overclocked speeds reaching over 8800 MT/s, ensuring fast performance and seamless multitasking. This motherboard is built for high-speed connectivity and storage. It features a PCIe 5.0 x4 M.2 slot for the fastest SSDs, along with a second PCIe 4.0 x4 M.2 slot and four SATA 6Gb/s ports for versatile storage configurations, including RAID. For expansion, it includes one PCIe 4.0 x16 slot for a graphics card and two PCIe 4.0 x1 slots. On the networking front, it comes with Wi-Fi 6 and Bluetooth 5.3 for robust wireless connections, as well as a Realtek 2.5Gb Ethernet port for high-speed wired networking. The board also features a Realtek 7.1 Surround Sound audio codec with premium capacitors and dedicated PCB layers for an enhanced audio experience. ASUS has included several features to make building and using this board easier. Its Q-Design elements, like the M.2 Q-Latch and PCIe Slot Q-Release, simplify component installation. The motherboard also includes VRM and M.2 heatsinks to ensure stable performance under heavy loads. Its Aura Sync support allows for customizable RGB lighting, giving your PC a personal touch. Overall, the ASUS B860M AYW GAMING WIFI is a great choice for builders looking for a compact, feature-rich motherboard.
Features of ASUS B860M AYW GAMING WIFI
- CPU Support: It's designed for the latest Intel Core Ultra Processors (Series 2) with the LGA 1851 socket, leveraging the Intel B860 chipset. It supports Intel's Turbo Boost Technology for enhanced performance.
- Memory: The board has two DIMM slots supporting a maximum of 128GB of DDR5 RAM. It can handle memory speeds of up to 8800+ MT/s when overclocked, and it supports Intel XMP and ASUS Enhanced Memory Profile III (AEMP III) for easy performance tuning.
- Graphics: It features an HDMI 2.1 port that supports 4K at 60Hz.
- Storage: It offers a total of two M.2 slots and four SATA 6Gb/s ports. The primary M.2 slot is a PCIe 5.0 x4 for blazing-fast SSDs, while the second M.2 slot is a PCIe 4.0 x4. Intel Rapid Storage Technology is supported for SATA RAID 0/1/5/10 configurations.
- Expansion Slots: For expansion, it includes one PCIe 4.0 x16 slot for a graphics card and two PCIe 4.0 x1 slots.
- Networking: The board is equipped with integrated Wi-Fi 6 (802.11ax) and Bluetooth 5.3 for strong wireless connectivity. It also has a Realtek 2.5Gb Ethernet port for high-speed wired networking.

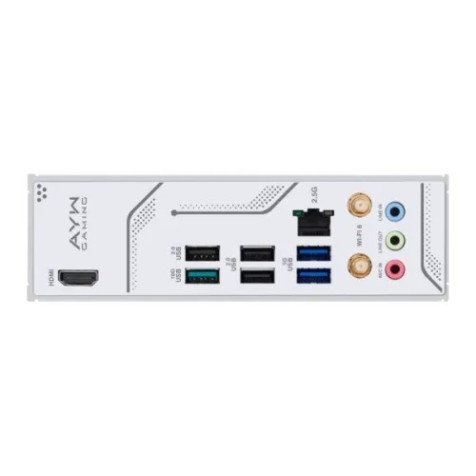

- USB Ports: It provides a comprehensive selection of USB ports, including a rear USB 10Gbps Type-A, several USB 5Gbps ports, and USB 2.0 ports. It also has headers for a front-panel USB 5Gbps Type-C and additional USB ports.
- DIY-Friendly Features: ASUS has included several "Q-Design" features to simplify the building process, such as the M.2 Q-Latch for toolless SSD installation and the PCIe Slot Q-Release for easy graphics card removal.
- Cooling: It comes with VRM and M.2 heatsinks to ensure stable performance and prevent thermal throttling. It also includes multiple fan headers and support for ASUS Fan Xpert 2+ software for precise fan control.
- Protection: The motherboard incorporates ASUS 5X PROTECTION III, which includes features like DIGI+ VRM, LANGuard, overvoltage protection, and a stainless-steel back I/O for enhanced durability.
- Aura Sync: It supports ASUS's Aura Sync for customizable RGB lighting, allowing you to synchronize lighting effects across compatible components.
