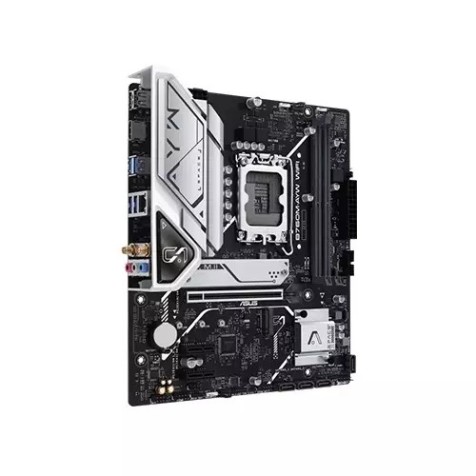

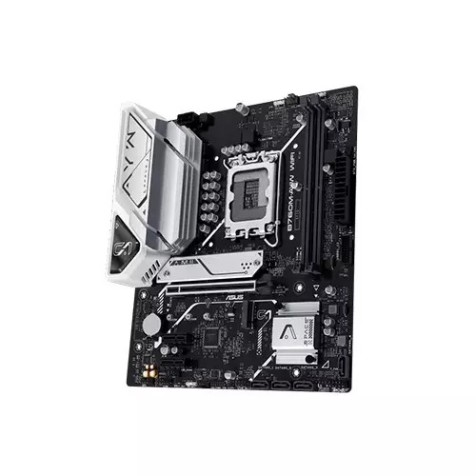

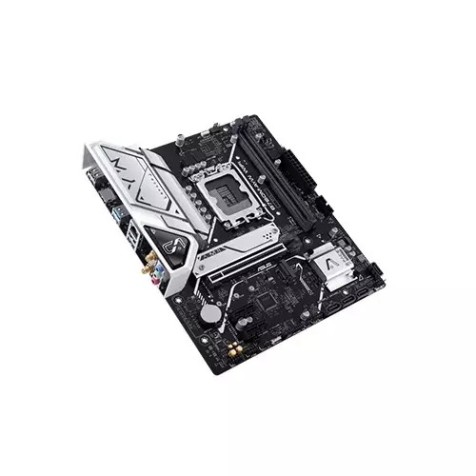

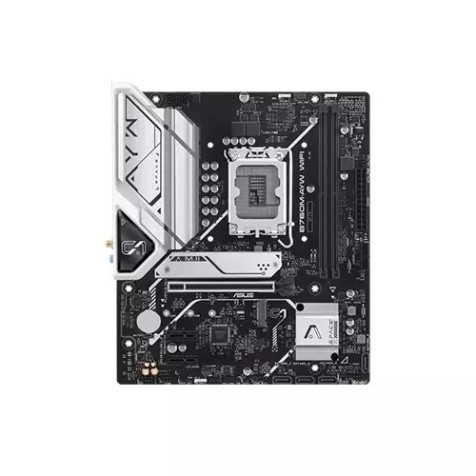

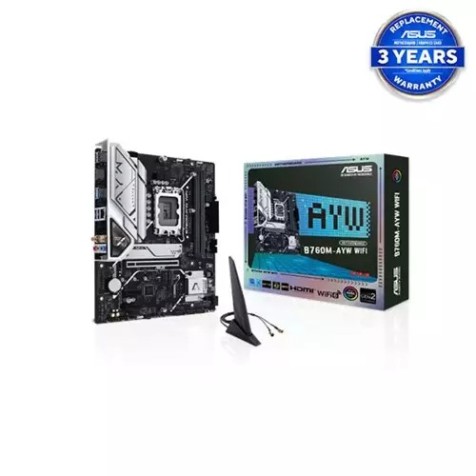

ASUS B760M-AYW WIFI mATX Motherboard
The ASUS B760M-AYW WIFI is a compact yet powerful micro-ATX motherboard designed for building a modern and reliable PC. It's a great choice for gamers and creators who need solid performance and excellent connectivity without the high cost of a flagship board. Built on the Intel B760 chipset and featuring the LGA 1700 socket, this motherboard is fully compatible with 14th, 13th, and 12th Gen Intel Core processors. A standout feature is its support for high-speed DDR5 memory. With two DIMM slots, it can handle a maximum of 96GB of RAM, and it supports overclocked speeds up to 8000MHz (OC), providing a significant performance boost for multitasking, gaming, and content creation. For storage, the board includes two PCIe 4.0 x4 M.2 slots for lightning-fast NVMe SSDs and four SATA 6Gb/s ports for traditional storage drives. The main graphics card slot is a PCIe 5.0 x16 slot, ensuring you're ready for the latest and most powerful GPUs with double the bandwidth of PCIe 4.0. Connectivity is a key highlight. It comes with integrated Wi-Fi 6 for fast and stable wireless networking, and a Realtek 2.5Gb Ethernet port for high-speed wired connections. The board also incorporates ASUS's 5X Protection III for durability and features VRM heatsinks to keep components cool under load. Overall, the B760M-AYW WIFI offers a fantastic balance of features, performance, and reliability in a compact form factor.
Features of ASUS B760M-AYW WIFI
- LGA 1700 Socket: Supports Intel's 14th, 13th, and 12th Gen Core processors, as well as Pentium Gold and Celeron CPUs.
- Intel B760 Chipset: Provides a modern platform with excellent support for Intel's latest processors and technologies.
- DDR5 Memory: Features two DIMM slots for high-speed DDR5 RAM. It supports up to a massive 96GB of total memory with overclocked speeds reaching up to 8000MHz (OC), which is a significant advantage for performance-demanding tasks.
- PCIe 5.0 x16 Slot: The primary graphics card slot is a PCIe 5.0 x16 slot, offering future-proof bandwidth for the latest and upcoming high-end GPUs.
- M.2 Slots: It has two M.2 slots, both supporting PCIe 4.0 x4 mode, for blazing-fast NVMe SSDs.
- SATA Ports: Includes four SATA 6Gb/s ports for traditional storage drives.
- RAID Support: Supports Intel Rapid Storage Technology for SATA RAID 0, 1, 5, and 10 configurations, which is great for data redundancy or performance enhancement.
- Wireless: Features integrated Wi-Fi 6 for high-speed wireless networking, and Bluetooth 5.2 for connecting wireless peripherals.
- Wired: A Realtek 2.5Gb Ethernet port is included, providing faster data transfer and lower latency for online gaming and large file transfers.

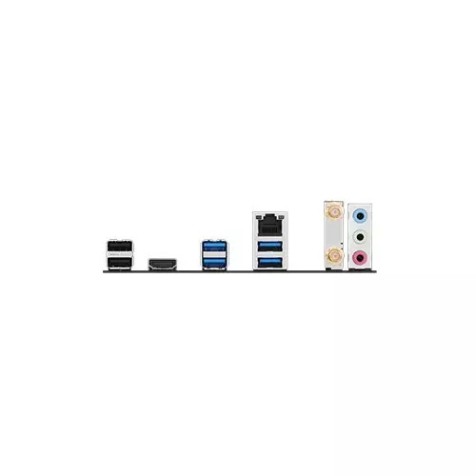

- USB Ports: A combination of USB 3.2 Gen 1 (5Gbps) and USB 2.0 ports are available on the rear I/O, with internal headers for front-panel connectivity.
- Display Outputs: For integrated graphics, it features an HDMI port that supports 4K resolution at 60Hz.
- VRM Heatsink: A dedicated heatsink on the voltage regulator modules (VRMs) helps to maintain stable power delivery and prevent thermal throttling.
- ASUS 5X Protection III: This suite of hardware-level safeguards includes features like DIGI+ VRM, LANGuard, and overvoltage protection to ensure long-term stability and reliability.
- Fan Control: It offers comprehensive fan control through ASUS's Fan Xpert software and the UEFI BIOS.
- Aura Sync: It includes an Aura RGB header and Addressable Gen 2 headers, allowing you to synchronize RGB lighting with other compatible components.
- TPM: It has an SPI TPM header for a discrete TPM module and supports firmware TPM (fTPM) via the CPU.
