Supported RAM: 4 x DIMM, Max. 192GB, DDR5 7200+(OC)
Supported CPU: 14th/12th/13th Gen Intel Processors (LGA1700)
অর্ডার করার পূর্বে কাস্টমার কেয়ার থেকে পন্যের স্টক ও ডেলিভারি সম্পর্কে জেনে নেয়ার অনুরোধ করা যাচ্ছে। প্রযুক্তি পণ্যের মূল্য অস্থিতিশীল হওয়ায় কারণে যেকোন মুহূর্তে যেকোন প্রযুক্তি পণ্যের মূল্য পরিবর্তন হতে পারে।
1 x DisplayPort (Supports max. 4K@60Hz as specified in DisplayPort 1.4.)
1 x VGA port
1 x HDMI port (Supports 4K@60Hz as specified in HDMI 2.1.)
Connector & Ports
HDMI
1x HDMI
Display Port (s)
1x DisplayPort
, 1 x VGA port
USB

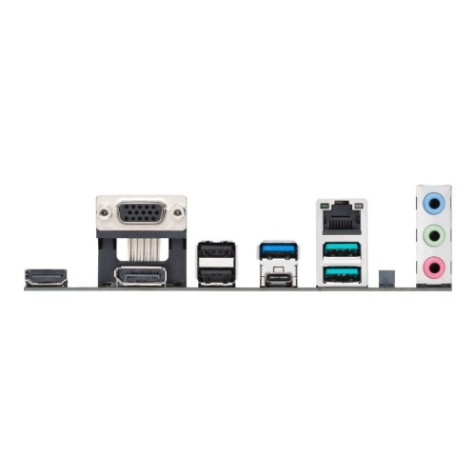

Rear USB (Total 6 ports)
1 x USB 3.2 Gen 2x2 port (1 x USB Type-C)
2 x USB 3.2 Gen 2 ports (2 x Type-A)
1 x USB 3.2 Gen 1 port (1 x Type-A)
2 x USB 2.0 ports (2 x Type-A)
Front USB (Total 7 ports)
1 x USB 3.2 Gen 1 connector (supports USB Type-C)
1 x USB 3.2 Gen 1 header supports 2 additional USB 3.2 Gen 1 ports
2 x USB 2.0 headers support 4 additional USB 2.0 ports
LAN Port
1 x Realtek 2.5Gb Ethernet
Supported Storage
Total supports 3 x M.2 slots and 4 x SATA 6Gb/s ports
Intel 13th & 12th Gen Processors
M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode)
Intel B760 Chipset
M.2_2 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x4 mode)
M.2_3 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x2 mode)
4 x SATA 6Gb/s ports
RAID
Intel Rapid Storage Technology supports SATA RAID 0/1/5/10.
Internal I/O Ports
Fan and Cooling related
1 x 4-pin CPU Fan header
1 x 4-pin AIO Pump header
3 x 4-pin Chassis Fan headers
Power related
1 x 24-pin Main Power connector
1 x 8-pin +12V Power connector
Storage related
3 x M.2 slots (Key M)
4 x SATA 6Gb/s ports
USB
1 x USB 3.2 Gen 1 connector (supports USB Type-C)
1 x USB 3.2 Gen 1 header supports 2 additional USB 3.2 Gen 1 ports
2 x USB 2.0 headers support 4 additional USB 2.0 ports
Miscellaneous
3 x Addressable Gen 2 headers
1 x Aura RGB header
1 x Clear CMOS header
1 x COM Port header
1 x Front Panel Audio header (AAFP)
1 x S/PDIF Out header
1 x 20-3 pin System Panel header with Chassis intrude function
1 x Thunderbolt (USB4) header
TPM (Trusted Platform Module )
1 x SPI TPM header (14-1pin)
Others
Special Features
ASUS 5X PROTECTION III
- DIGI+ VRM
- LANGuard
- Overvoltage Protection
- SafeSlot Core+
- Stainless-Steel Back I/O
ASUS Q-Design
- Q-DIMM
- Q-LED Core
- Q-Slot
ASUS Thermal Solution
- M.2 heatsink
- VRM heatsink design
ASUS EZ DIY
- ProCool
Aura Sync
- Aura RGB header
- Addressable Gen 2 headers
Warranty Information
Manufacturing Warranty
3 years

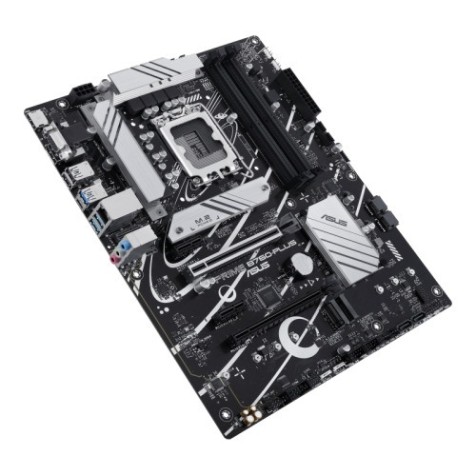

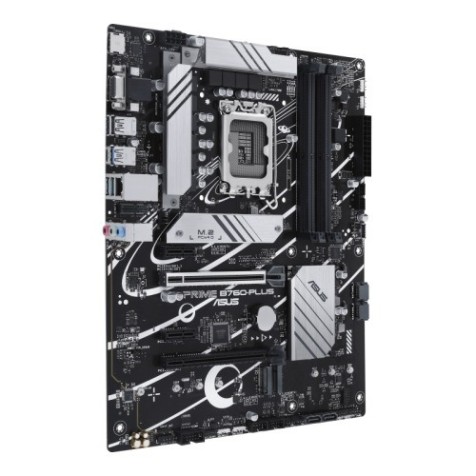

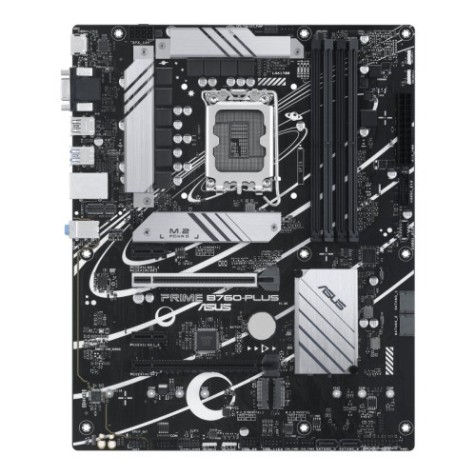

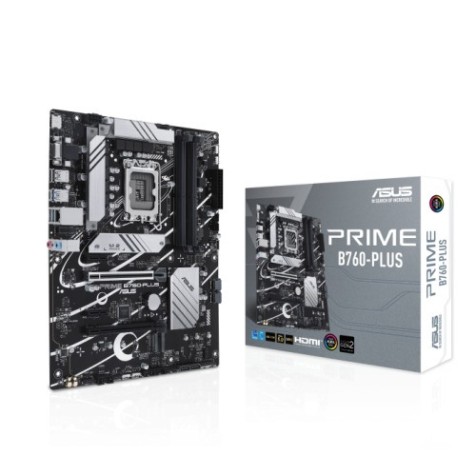

ASUS PRIME B760-PLUS ATX Motherboard
TheASUS PRIME B760-PLUS is a full-featured ATX motherboard that provides a solid foundation for a mid-range to high-end PC build. It's part of ASUS's Prime series, known for a balance of performance, features, and affordability, making it a reliable choice for everyday users and enthusiasts alike. This motherboard is designed with the LGA 1700 socket, offering out-of-the-box compatibility with Intel 14th, 13th, and 12th Gen Core processors. A key highlight is its support for modern hardware. It comes equipped with four DIMM slots for DDR5 memory, supporting a massive 192GB maximum capacity and speeds of up to 7200+ MT/s (OC). This provides plenty of headroom for demanding applications and future upgrades. For graphics and expansion, it includes a primary PCIe 5.0 x16 slot, offering the fastest possible bandwidth for the latest graphics cards. This is a significant feature for a motherboard in this price segment. Additionally, it has a second PCIe 4.0 x16 slot (running at x4 mode) and two PCIe 3.0 x1 slots. Storage is another strong point, with three PCIe 4.0 M.2 slots for lightning-fast NVMe SSDs, ensuring quick boot times and rapid data access. It also includes four SATA 6Gb/s ports for traditional drives. The board is well-equipped with connectivity options, including a Realtek 2.5Gb Ethernet port for high-speed wired networking, and a variety of USB ports, highlighted by a USB 3.2 Gen 2x2 Type-C port on the rear I/O. The board also features comprehensive cooling solutions, with VRM and M.2 heatsinks, to maintain stable performance. With its blend of modern features, robust design, and the user-friendly ASUS UEFI BIOS, the PRIME B760-PLUS offers a versatile and stable platform for a powerful PC build.
Features of ASUS PRIME B760-PLUS
CPU Support: It features the LGA 1700 socket, compatible with Intel Core 14th, 13th, and 12th Gen Processors, as well as Pentium Gold and Celeron processors.
Chipset: Uses the Intel B760 chipset.
Form Factor: ATX, a standard size suitable for most mid-tower and full-tower cases.
Memory: Supports DDR5 memory with four DIMM slots, allowing for a maximum of 192GB. It can handle overclocked memory speeds of up to 7200+ MT/s (OC), leveraging technologies like Intel XMP and ASUS OptiMem II.
PCIe 5.0: Includes a PCIe 5.0 x16 slot for the latest high-performance graphics cards, offering a significant increase in bandwidth over previous generations.
Storage: It features three M.2 slots, all of which support PCIe 4.0 for high-speed NVMe SSDs. Two slots run at x4 mode and one at x2 mode. It also has four SATA 6Gb/s ports.
Networking: Equipped with a Realtek 2.5Gb Ethernet port for faster and more reliable wired network connections.
USB: The board offers extensive USB connectivity, including a high-speed USB 3.2 Gen 2x2 Type-C port (20 Gbps) on the rear I/O, as well as multiple USB 3.2 Gen 2, Gen 1, and 2.0 ports.
Display Outputs: For integrated graphics, it provides DisplayPort 1.4, HDMI 2.1, and even a VGA port, offering versatility for different monitor setups.
Thunderbolt™/USB4® Header: Includes a dedicated header to support an optional ASUS Thunderbolt™ (USB4®) add-in card for ultra-fast data transfer and multi-display support.
ASUS 5X Protection III: This suite of hardware safeguards ensures long-term durability. It includes features like SafeSlot Core+ for reinforced PCIe slots, LANGuard for surge protection, Overvoltage Protection, and a stainless-steel back I/O.
Cooling: Comes with VRM and M.2 heatsinks to dissipate heat and prevent thermal throttling. It also provides multiple fan headers for flexible cooling solutions, manageable via Fan Xpert 2+.
User-Friendly Design: ASUS Q-Design features like Q-LED Core simplify troubleshooting by providing a visual indication of boot issues. Q-DIMM makes installing RAM easier, and the M.2 Q-Latch offers tool-free SSD installation.
Customization: Supports Aura Sync RGB lighting with both Addressable Gen 2 and standard RGB headers, allowing for synchronized lighting effects with a wide range of compatible hardware.
Audio: Features a Realtek 7.1 Surround Sound High-Definition Audio CODEC with dedicated audio layers and premium capacitors for improved sound quality.
