4 x DIMM slots, max. 256GB, DDR5
Support up to 8666+MT/s (OC), Non-ECC, Un-buffered ,Clocked Unbuffered DIMM (CUDIMM)*
Dual channel memory architecture
DIMM Fit
Supports Intel® Extreme Memory Profile (XMP) memory module
ASUS Enhanced Memory Profile III (AEMP III)
Maximum Memory
Capacity 256GB
Graphics
Graphics
1 x DisplayPort**
1 x HDMI port***
* Graphics specifications may vary between CPU types
Connector & Ports
HDMI
1x HDMI 2.1
Display Port (s)
1x DisplayPort
USB

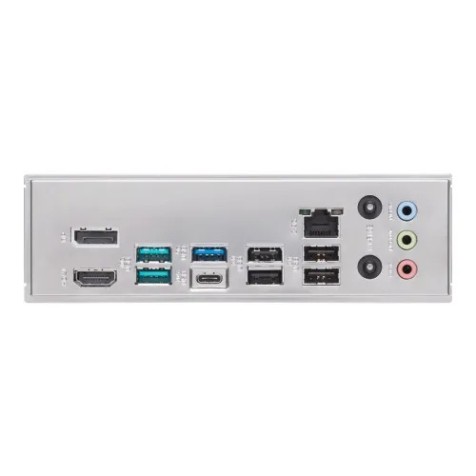

Rear USB (Total 8 ports)
1 x USB 20Gbps port (1 x USB Type-C)
2 x USB 10Gbps ports (2 x Type-A)
1 x USB 5Gbps port (1 x Type-A)
4 x USB 2.0 ports (4 x Type-A)
Front USB (Total 5 ports)
1 x USB 5Gbps port (1 x USB Type-C)
1 x USB 5Gbps header supports additional 2 USB 5Gbps ports
1 x USB 2.0 header supports 2 additional USB 2.0 ports
LAN Port
1 x Realtek 2.5Gb Ethernet
ASUS LANGuard
Supported Storage
Total supports 2 x M.2 slots and 4 x SATA 6Gb/s ports*
Intel Core Ultra Processors (Series 2)*
M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 5.0 x4 mode)
Intel B860 Chipset
M.2_2 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x4 mode)
4 x SATA 6Gb/s ports
* Intel® Rapid Storage Technology supports SATA RAID 0/1/5/10.
RAID
SATA RAID 0/1/5/10
Internal I/O Ports
Fan and Cooling related
1 x 4-pin CPU Fan header
1 x 4-pin CPU OPT Fan header
1 x 4-pin AIO Pump header
4 x 4-pin Chassis Fan headers
Power related
1 x 24-pin Main Power connector
1 x 8-pin +12V CPU Power connector
Storage related
2 x M.2 slots (Key M)
4 x SATA 6Gb/s ports
USB
1 x USB 5Gbps connector (supports USB Type-C®)
1 x USB 5Gbps header supports 2 additional USB 5Gbps ports
1 x USB 2.0 header supports 2 additional USB 2.0 ports
Miscellaneous
3 x Addressable Gen 2 headers
1 x Aura RGB header
1 x Clear CMOS header
1 x Chassis Intrusion header
1 x COM Port header
1 x Front Panel Audio header (F_AUDIO)
1 x S/PDIF Out header
1 x SPI TPM header (14-1pin)
1 x 10-1 pin Front System Panel header
1 x Thunderbolt™ (USB4®) header
TPM (Trusted Platform Module )
1 x SPI TPM header (14-1pin)
Others
Special Features
ASUS 5X PROTECTION III
-DIGI+ VRM (- Digital power design with DrMOS)
- LANGuard
- Overvoltage Protection
- SafeSlot
- Stainless-steel back I/O
ASUS Q-Design
- Q-Antenna
- Q-Dashboard
- Q-DIMM
- Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green])
- Q-Slot
ASUS Thermal Solution
- M.2 heatsink
- VRM heatsink design
ASUS EZ DIY
- ProCool
- Pre-mounted I/O shield
Aura Sync
- Aura RGB header
- Addressable Gen 2 headers
Warranty Information
Manufacturing Warranty
3 Year warranty

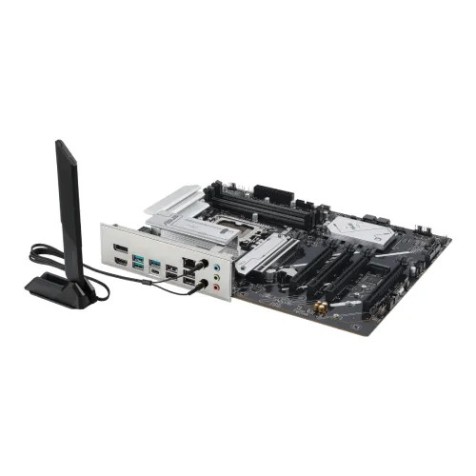

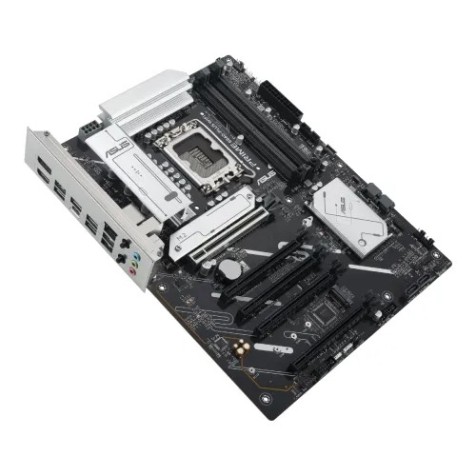

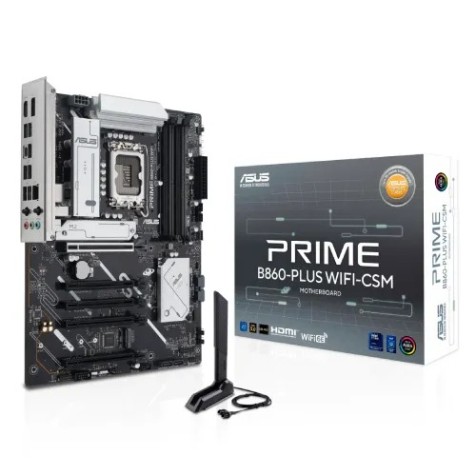

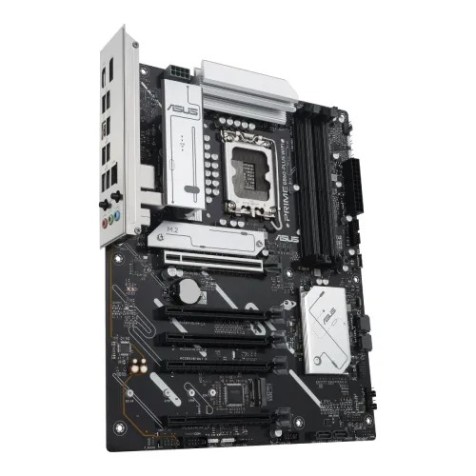

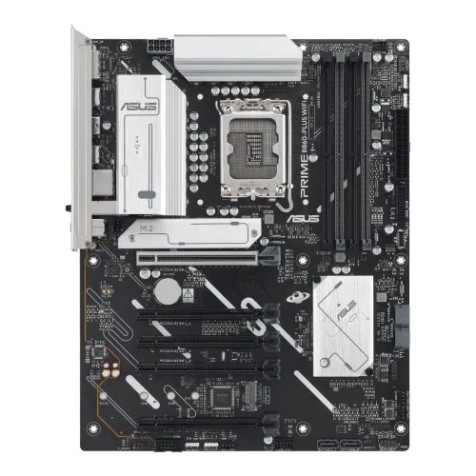

Asus PRIME B860-PLUS WIFI-CSM LGA 1851 ATX Motherboard
The ASUS PRIME B860-PLUS WIFI-CSM is an ATX motherboard built to handle the power of Intel Core Ultra Processors (Series 2) on the LGA 1851 socket. As part of ASUS's Corporate Stable Model (CSM) program, it's designed for long-term reliability and stability, making it an excellent choice for businesses, system integrators, and home users who demand a durable, feature-rich platform. This motherboard is equipped with comprehensive features for both performance and connectivity. It supports DDR5 memory, with four DIMM slots allowing for up to 256GB of RAM and overclocked speeds reaching beyond 8666 MT/s. Storage is handled by two M.2 slots, including a primary PCIe 5.0 x4 slot for next-generation SSDs, and four SATA 6Gb/s ports for traditional drives. For networking, the board comes with a built-in Wi-Fi 6E module that supports tri-band (2.4/5/6GHz) wireless connections, alongside a Realtek 2.5Gb Ethernet port for high-speed wired networking. The rear I/O is well-equipped with a high-speed USB 20Gbps Type-C port that also supports DisplayPort video output, as well as several other USB ports for a wide range of peripherals. The PRIME B860-PLUS WIFI-CSM incorporates ASUS's 5X PROTECTION III for enhanced durability and includes several Q-Design features to simplify PC building, such as a pre-mounted I/O shield and M.2 Q-Latch. Its robust power solution, with 8+1+1+1 power stages, and a comprehensive thermal design with VRM and M.2 heatsinks ensure stable performance under demanding workloads.
Features of Asus PRIME B860-PLUS WIFI-CSM
CPU Support: Compatible with Intel Core Ultra Processors (Series 2) on the LGA 1851 socket.
Memory: Four DIMM slots support up to 256GB of DDR5 RAM with overclocked speeds of up to 8666+ MT/s, enabled by Intel XMP and ASUS Enhanced Memory Profile III (AEMP III).
Expansion Slots: Features a PCIe 5.0 x16 slot for high-performance graphics cards, as well as multiple PCIe 4.0 x16 and PCIe 4.0 x1 slots for other expansion cards.
Storage: It has a total of two M.2 slots, with the primary one supporting the high-speed PCIe 5.0 x4 standard, and the other a PCIe 4.0 x4 slot. There are also four SATA 6Gb/s ports for additional drives.
Networking: This model includes a built-in Wi-Fi 6E (802.11ax) module that operates on the tri-band (2.4/5/6GHz) for fast and reliable wireless networking. It also has a Realtek 2.5Gb Ethernet port for high-speed wired connections.
USB Ports: A wide range of USB ports is available, including a rear USB 20Gbps Type-C with DisplayPort Alt mode support, along with multiple USB 10Gbps, 5Gbps, and 2.0 ports.
Cooling: Equipped with VRM and M.2 heatsinks to ensure stable performance and prevent thermal throttling.
ASUS Q-Design: Includes several user-friendly features to simplify the building process, such as the M.2 Q-Latch for tool-free SSD installation and a pre-mounted I/O shield.
Corporate Stable Model (CSM): As a CSM product, it is designed for a long product lifespan and provides a stable platform for corporate or professional use.
TPM Support: Features a dedicated SPI TPM header, ensuring it meets security requirements for Windows 11 and other security features.
Aura Sync: Supports ASUS's Aura Sync for customizable and synchronized RGB lighting.
