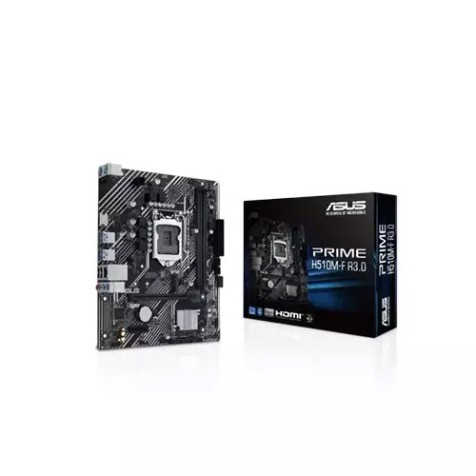

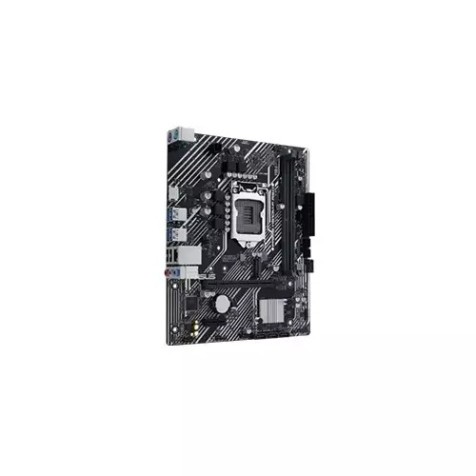

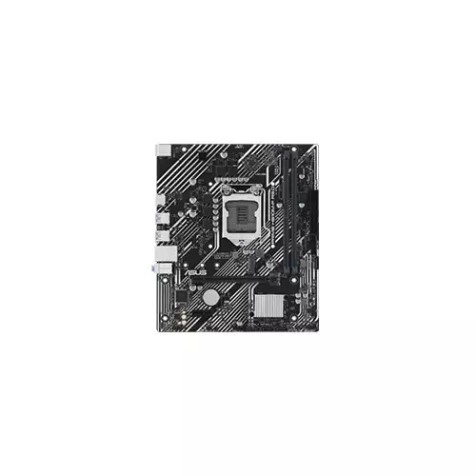

ASUS PRIME H510M-F R3.0 LGA1200 Micro-ATX Motherboard

ASUS PRIME H510M-F R3.0 LGA1200 Micro-ATX Motherboard
ASUS PRIME H510M-F R3.0 LGA1200 Micro-ATX Motherboard
ASUS PRIME H510M-F R3.0 LGA1200 Micro-ATX Motherboard
ASUS PRIME H510M-F R3.0 LGA1200 Micro-ATX Motherboard
-6 %
ASUS PRIME H510M-F R3.0 LGA1200 Micro-ATX Motherboard
ASUS PRIME H510M-F R3.0 LGA1200 Micro-ATX Motherboard
ASUS PRIME H510M-F R3.0 LGA1200 Micro-ATX Motherboard
ASUS PRIME H510M-F R3.0 LGA1200 Micro-ATX Motherboard
ASUS PRIME H510M-F R3.0 LGA1200 Micro-ATX Motherboard
  • Price: 10,630৳
  • special price: 10,000৳
  • Status: In Stock
  • Brands: Asus
  • Model: PRIME H510M-F R3.0
Based on 0 reviews. - Write a review

Discount Price

10,000৳10,630৳
Available payment method

Monthly EMI Price

929৳
Ex Tax: 10,000৳
Add To Cart
Buy Now Add to Compare
Add to Wish List Compare this Product
  • Supported CPU: 11th and 10th Gen Intel Processors (LGA1200)
  • Graphics Output: 1x HDMI port
  • Supported RAM: 2x DDR4, Max 64GB 3200(O.C.)
  • Features: 1 x Realtek 1Gb Ethernet
অর্ডার করার পূর্বে কাস্টমার কেয়ার থেকে পন্যের স্টক ও ডেলিভারি সম্পর্কে জেনে নেয়ার অনুরোধ করা যাচ্ছে। প্রযুক্তি পণ্যের মূল্য অস্থিতিশীল হওয়ায় কারণে যেকোন মুহূর্তে যেকোন প্রযুক্তি পণ্যের মূল্য পরিবর্তন হতে পারে।
Basic Information
Supported CPU Intel Socket LGA1200 for 11th Gen Intel Core Processors & 10th Gen Intel Core, Pentium Gold and Celeron Processors Supports up to Intel 65W CPU Supports Intel 14 nm CPU Supports Intel Turbo Boost Technology 2.0 and Intel Turbo Boost Max Technology 3.0
Chipset Intel H470 Chipset
Form Factor mATX Form Factor 8.9 inch x 7.7 inch ( 22.6 cm x 19.6 cm )
Audio Realtek 7.1 Surround Sound High Definition Audio CODEC* - Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking - Supports up to 24-Bit/192 kHz playback Audio Features - Audio Shielding - Dedicated audio PCB layers
Expansion Slots
PCI Intel 11th & 10th Gen Processors 1 x PCIe 4.0/3.0 x16 slot - Intel 11th Gen processors support PCIe 4.0 x16 - Intel 10th Gen processors support PCIe 3.0 x16 Intel H470 Chipset 1 x PCIe 3.0 x1 slot
Memory
Type DDR4
Slots 2 x DIMM
Supported Memory 3200(OC)/3000(OC)/2933/2800/2666/2400/2133 Non-ECC, Un-buffered Memory* Dual Channel Memory Architecture Supports Intel Extreme Memory Profile (XMP) * 10th Gen Intel Core i7/i9 processors support 2933/2800/2666/2400/2133 natively, others will run at the maximum transfer rate of DDR4 2666. * 11th Gen Intel processors support 3200(OC)/3000(OC)/2933/2800/2666/2400/2133.
Maximum Memory Max. 64GB
Graphics
Graphics Only Intel 11th Gen processors support HDMI 2.1 with max. resolution of 4K@60Hz, others will only support HDMI 1.4 with max. resolution of 4K@30Hz. Please refer to www.intel.com for any updates.
Connector & Ports
HDMI 1x HDMI
Display Port (s) N/A
USB Rear USB (Total 6 ports) 4 x USB 5Gbps ports (4 x Type-A) 2 x USB 2.0 ports (2 x Type-A) Front USB (Total 4 ports) 1 x USB 5Gbps header supports 2 additional USB 5Gbps ports 1 x USB 2.0 header supports 2 additional USB 2.0 ports
LAN Port 1 x Realtek 1Gb Ethernet port
Supported Storage Total supports 1 x M.2 slot and 4 x SATA 6Gb/s ports Intel H470 Chipset M.2 slot (Key M), type 2242/2260/2280 (supports PCIe 3.0 x4 & SATA modes) 4 x SATA 6Gb/s ports
RAID N/A

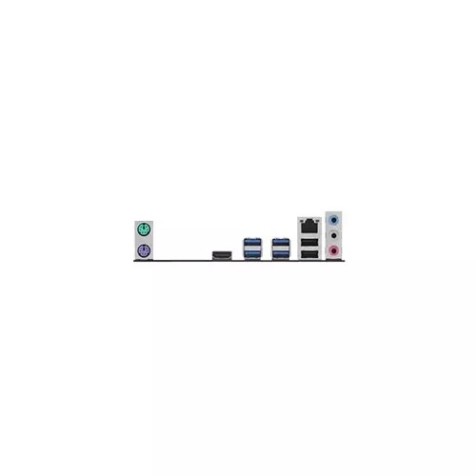

Internal I/O Ports Internal I/O Connectors Fan and Cooling related 1 x 4-pin CPU Fan header 1 x 4-pin Chassis Fan header Power related 1 x 24-pin Main Power connector 1 x 4-pin +12V Power connector Storage related 1 x M.2 slot (Key M) 4 x SATA 6Gb/s ports USB 1 x USB 5Gbps header supports 2 additional 5Gbps ports 1 x USB 2.0 header supports 2 additional USB 2.0 ports Miscellaneous 1 x Clear CMOS header 1 x Front Panel Audio header (F_AUDIO) 1 x Speaker header 1 x 10-1 pin System Panel header Back Panel I/O Ports 4 x USB 5Gbps ports (4 x Type-A) 2 x USB 2.0 ports (2 x Type-A) 1 x HDMI port 1 x Realtek 1Gb Ethernet port 3 x Audio jacks 1 x PS/2 Keyboard (purple) port 1 x PS/2 Mouse (green) port
TPM (Trusted Platform Module ) 1 x SPI TPM header (14-1 pin)
Others
Special Features ASUS 5X PROTECTION III - DIGI+ VRM - LANGuard - Overvoltage Protection - SafeSlot Core - Stainless-Steel Back I/O ASUS Q-Design - Q-DIMM - Q-LED Core - Q-Slot ASUS Thermal Solution - Aluminum heatsink design
Warranty Information
Manufacturing Warranty 3 years

ASUS PRIME H510M-F R3.0 LGA1200 Micro-ATX Motherboard

The ASUS PRIME H510M-F R3.0 LGA1200 Micro-ATX Motherboard is designed to deliver consistent performance, stability, and durability for modern Intel desktop systems. Built with support for 11th and 10th Gen Intel Core, Pentium Gold, and Celeron processors on the LGA1200 socket, it provides users with a solid computing platform optimized for everyday productivity, home office work, and small form-factor PC builds. The board supports Intel Turbo Boost Technology 2.0 and 3.0, ensuring responsive processing and efficient thermal handling for compatible CPUs.

The motherboard features two DDR4 DIMM slots supporting up to 64GB dual-channel memory, with frequency support up to 3200MHz (OC) depending on processor generation, making it suitable for light content creation, multitasking, and business workloads. Expansion options include a PCIe x16 slot for graphics upgrades, with PCIe 4.0 support for 11th Gen processors, and a PCIe 3.0 x1 slot for additional connectivity cards. For storage, the board offers one M.2 slot (PCIe 3.0 x4 & SATA) plus four SATA 6Gb/s ports, ensuring flexibility for both high-speed NVMe SSDs and traditional HDDs.

Display output is provided via an HDMI port, with 11th Gen processors enabling 4K@60Hz, while onboard audio is powered by Realtek 7.1 HD Audio CODEC featuring audio shielding and dedicated PCB layers for improved signal clarity. Connectivity includes multiple USB 5Gbps and USB 2.0 ports, Realtek Gigabit Ethernet, and legacy PS/2 support for peripherals.

Built with ASUS 5X PROTECTION III, including DIGI+ VRM, LANGuard, and SafeSlot Core enhancements, the PRIME H510M-F R3.0 focuses heavily on reliability and longevity. Additional utilities such as Armoury Crate, AI Suite 3, and UEFI BIOS EZ Mode enhance usability and tuning convenience. Backed by a 3-year manufacturer warranty, it is an excellent choice for practical and efficient PC builds.

Features of ASUS PRIME H510M-F R3.0 LGA1200 Micro-ATX Motherboard

  • Supports 11th & 10th Gen Intel LGA1200 processors
  • Dual-channel DDR4 memory up to 64GB
  • PCIe 4.0 x16 slot (11th Gen CPUs) for GPU upgrades
  • One M.2 slot + four SATA 6Gb/s storage ports
  • HDMI output supporting up to 4K resolution
  • Realtek 7.1 HD audio with shielding technology
  • Realtek 1Gb LAN for stable wired networking
  • USB 5Gbps & USB 2.0 rear and front connectivity
  • ASUS 5X Protection III hardware safeguards
  • Q-LED, Q-DIMM & Q-Slot simplified installation design
  • Micro-ATX compact form factor for efficient builds
