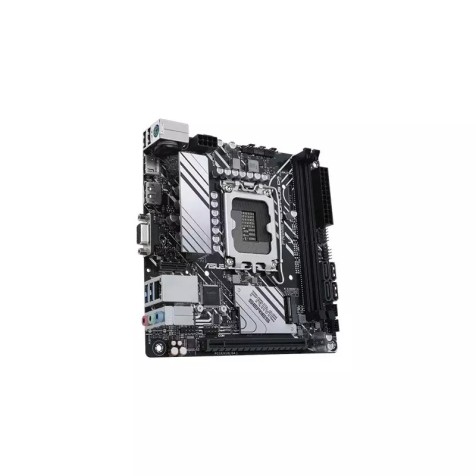

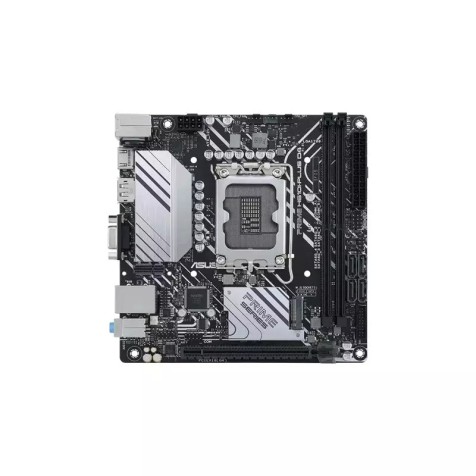

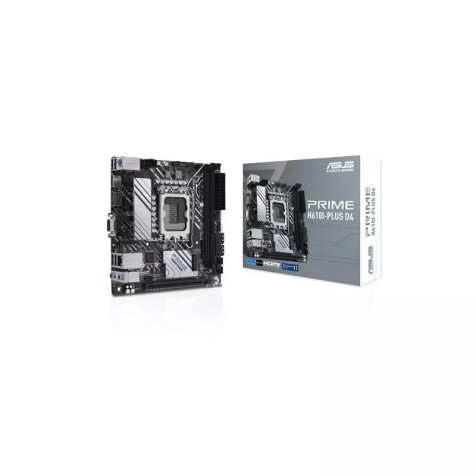

ASUS PRIME H610I-PLUS D4 Mini ITX Motherboard

ASUS PRIME H610I-PLUS D4 Mini ITX Motherboard

The ASUS PRIME H610I-PLUS D4 is a compact Mini ITX motherboard designed for small form-factor PC builds. Based on the Intel H610 chipset, it supports Intel's 12th, 13th, and 14th Gen Core processors via the LGA 1700 socket. This makes it a great entry-level option for users who want to build a space-saving system without sacrificing modern CPU compatibility. Despite its small size (6.7" x 6.7"), the motherboard packs essential features. It has two DIMM slots supporting up to 64GB of DDR4 RAM with speeds up to 3200MHz, and it supports Intel Extreme Memory Profile (XMP) for improved performance. For graphics, there's a single PCIe 4.0 x16 slot for a dedicated GPU. Storage options include an M.2 slot for a fast NVMe SSD and four SATA 6Gb/s ports for traditional drives. The board also features a Realtek 1Gb Ethernet port for a reliable wired connection. For users who need wireless connectivity, a separate M.2 slot (Key E) is available to add a Wi-Fi module. The PRIME H610I-PLUS D4 is engineered with a 5+1+1 DrMOS power stage to ensure stable power delivery to the CPU, and it includes VRM and PCH heatsinks to keep temperatures in check. ASUS's 5X Protection III suite provides multiple hardware safeguards, including overvoltage protection, LANGuard for surge protection, and a stainless-steel back I/O for enhanced durability. For convenience, it includes ASUS-exclusive software like Fan Xpert and an intuitive UEFI BIOS, which simplifies fan control and system management. Overall, it's a solid, budget-friendly foundation for a compact, reliable PC.

Features of ASUS PRIME H610I-PLUS D4

• Processor Support: It features the LGA 1700 socket, making it compatible with Intel's 14th, 13th, and 12th Gen Core processors, as well as Pentium Gold and Celeron processors.
• Memory: It has two DDR4 DIMM slots that support up to 64GB of RAM with speeds up to 3200 MHz. It also supports Intel's Extreme Memory Profile (XMP) for easy memory overclocking.
• Expansion Slots: For a dedicated graphics card, there is one PCIe 4.0 x16 slot.

• Storage: The motherboard includes one M.2 slot that supports PCIe 3.0 x4 for fast NVMe SSDs, and four SATA 6Gb/s ports for traditional hard drives or SSDs.
• Networking: It comes with a Realtek 1Gb Ethernet port. There is also an M.2 (Key E) slot for an optional Wi-Fi/Bluetooth module (sold separately).

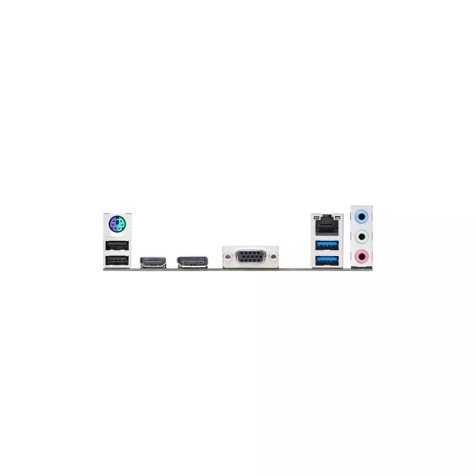

• USB: It has multiple USB ports on the back panel, including USB 3.2 Gen 1 and USB 2.0 ports. There are also internal headers for additional USB ports on the front of a PC case.
• Display Outputs: For integrated graphics, it provides an HDMI 2.1 port, a DisplayPort 1.4, and a D-Sub (VGA) port, all capable of supporting up to 4K resolution at 60Hz.
• ASUS 5X Protection III: This suite of hardware safeguards includes overvoltage protection, LANGuard for surge protection, and a stainless-steel back I/O for enhanced durability.
• VRM and PCH Heatsinks: It is equipped with heatsinks on the VRM and PCH to ensure stable power delivery and efficient cooling.
• Fan Control: It offers comprehensive fan controls through the UEFI BIOS or ASUS's Fan Xpert software.
