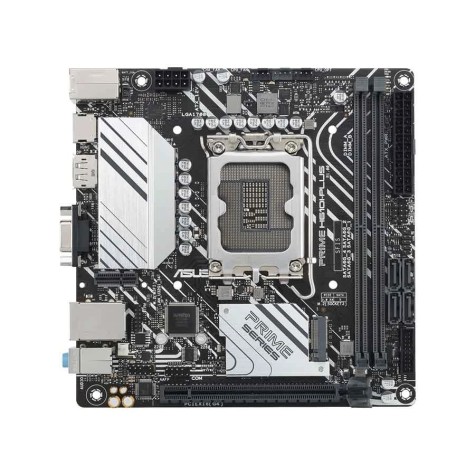

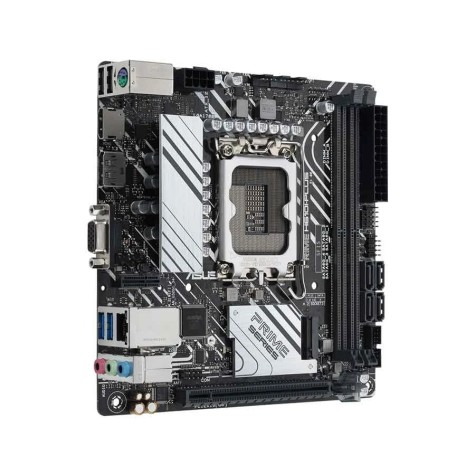

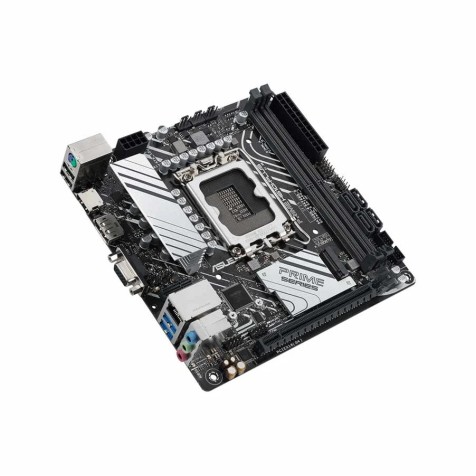

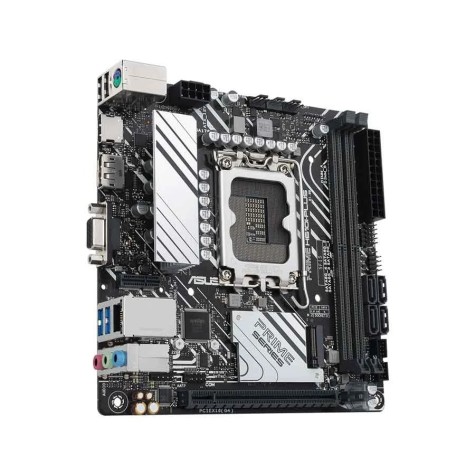

ASUS PRIME H610I-PLUS DDR5 Mini ITX Motherboard
The ASUS PRIME H610I-PLUS DDR5 is a compact Mini ITX motherboard designed for small form-factor builds, offering a powerful foundation for systems using the latest Intel processors. Based on the Intel H610 chipset, it supports Intel's 14th, 13th, and 12th Gen Core processors via the LGA 1700 socket. A key advantage of this model is its support for DDR5 memory, a significant step up from its DDR4 counterpart. With two DIMM slots, it can handle up to 96GB of high-speed DDR5 RAM with speeds up to 5600MHz, providing enhanced performance for multitasking and demanding applications. It also supports Intel's Extreme Memory Profile (XMP) for easy performance tuning. Despite its small size (6.7" x 6.7"), the motherboard provides essential connectivity and features. It includes a PCIe 4.0 x16 slot for a dedicated graphics card and a single M.2 slot for a fast PCIe 3.0 x4 NVMe SSD, along with four SATA 6Gb/s ports for additional storage. The board is equipped with an Intel 1Gb Ethernet port and offers a separate M.2 slot for an optional Wi-Fi module. The PRIME H610I-PLUS DDR5 also emphasizes durability and stability with its 5+1+1 DrMOS power stages for stable power delivery and VRM and PCH heatsinks for effective cooling. ASUS's 5X Protection III suite provides multiple hardware safeguards, ensuring a reliable and long-lasting build, making it a solid choice for those who need a modern, space-saving PC.
Features of ASUS PRIME H610I-PLUS DDR5
- LGA 1700 Socket: Designed for Intel's 14th, 13th, and 12th Gen Core processors, as well as Pentium Gold and Celeron processors.
- Intel H610 Chipset: Provides a solid, entry-level foundation for these processors.
- DDR5 Memory: A key selling point, it supports two DIMM slots for up to 96GB of high-speed DDR5 RAM, with a maximum speed of 5600MHz. It also supports Intel's XMP (Extreme Memory Profile) for easy memory tuning.
- PCIe 4.0 x16 Slot: The primary slot for a dedicated graphics card, offering a significant performance boost over the previous generation's PCIe 3.0.
- M.2 Slot: It has a single M.2 slot that supports PCIe 3.0 x4 NVMe SSDs, providing fast boot times and data transfer speeds.
- SATA Ports: Includes four SATA 6Gb/s ports for connecting additional traditional storage drives like HDDs or SSDs.

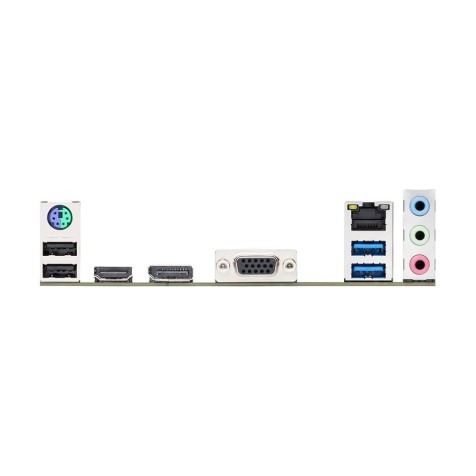

- Display Outputs: The board provides an excellent array of display options for integrated graphics: 1 x HDMI 2.1 port (supports 4K@60Hz), 1 x DisplayPort 1.4 (supports 4K@60Hz), 1 x D-Sub (VGA) port
- Networking: It features an Intel 1Gb Ethernet port for a stable, wired network connection.
- Optional Wi-Fi: An M.2 slot (Key E) is available for installing an optional Wi-Fi/Bluetooth module (sold separately), giving you the flexibility to add wireless connectivity if needed.
- USB Ports: It has a good selection of USB ports on the rear I/O, including USB 3.2 Gen 1 (5Gbps) and USB 2.0 ports.
- ASUS 5X Protection III: This suite of hardware-level safeguards includes:
- DIGI+ VRM: For stable and clean power delivery.
- LANGuard: For network surge protection.
- Overvoltage Protection: To prevent damage from power spikes.
- Stainless-Steel Back I/O: For long-term durability against corrosion.
- Cooling: It's equipped with VRM and PCH heatsinks to keep critical components cool, and it offers comprehensive fan control through Fan Xpert software and the UEFI BIOS.
- TPM: It includes an SPI TPM header (14-1pin) for a discrete TPM module and also supports firmware TPM (fTPM) via the CPU.
