Supported CPU: 14th, 13th Gen & 12th Gen Processors (LGA1700)
অর্ডার করার পূর্বে কাস্টমার কেয়ার থেকে পন্যের স্টক ও ডেলিভারি সম্পর্কে জেনে নেয়ার অনুরোধ করা যাচ্ছে। প্রযুক্তি পণ্যের মূল্য অস্থিতিশীল হওয়ায় কারণে যেকোন মুহূর্তে যেকোন প্রযুক্তি পণ্যের মূল্য পরিবর্তন হতে পারে।
Intel Socket LGA1700 for Intel Core 14th & 13th Gen Processors, Intel Core 12th Gen, Pentium Gold and Celeron Processors*
Supports up to Intel 65W CPU
Supports Intel Turbo Boost Technology 2.0 and Intel Turbo Boost Max Technology 3.0
Chipset
Intel H610 Chipset
Form Factor
mATX Form Factor
8.9 inch x 7.7 inch (22.6 cm x 19.5 cm )
Audio
Realtek 7.1 Surround Sound High Definition Audio CODEC*
- Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking
- Supports up to 24-Bit/192 kHz playback
Audio Features
- Audio Shielding
- Premium audio capacitors
- Dedicated audio PCB layers
1 x VGA port
1 x HDMITM port**
* Graphics specifications may vary between CPU types. Please refer to www.intel.com for any updates.
** Supports 4K@60Hz as specified in HDMITM 2.1.
Connector & Ports
HDMI
1 x HDMI port
Display Port (s)
1 x VGA port
USB

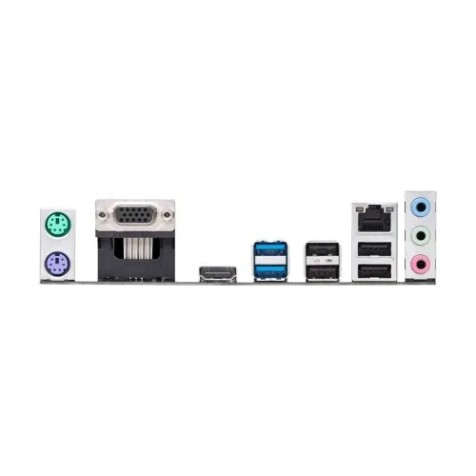

Rear USB (Total 6 ports)
2 x USB 3.2 Gen 1(5G) ports (2 x Type-A)
4 x USB 2.0 ports (4 x Type-A)
Front USB (Total 4 ports)
1 x USB 3.2 Gen 1(5G) header supports additional 2 USB 3.2 Gen 1 ports
1 x USB 2.0 header supports additional 2 USB 2.0 ports
LAN Port
1 x Realtek 1Gb Ethernet
Supported Storage
Total supports 1 x M.2 slot and 4 x SATA 6Gb/s ports
Intel H610 Chipset
M.2 slot (Key M), type 2242/2260/2280 (supports PCIe 3.0 x4 mode)
4 x SATA 6Gb/s ports
RAID
3 x Audio jacks
Internal I/O Ports
Internal I/O Connectors
Fan and Cooling related
1 x 4-pin CPU Fan header
1 x 4-pin Chassis Fan header
Power related
1 x 24-pin Main Power connector
1 x 4-pin +12V Power connector
Storage related
1 x M.2 slot (Key M)
4 x SATA 6Gb/s ports
USB
1 x USB 3.2 Gen 1(5G) header supports additional 2 USB 3.2 Gen 1 ports
1 x USB 2.0 header supports additional 2 USB 2.0 ports
Miscellaneous
1 x Clear CMOS header
1 x Chassis Intrusion header
1 x COM Port header
1 x Front Panel Audio header (AAFP)
1 x LPT header
1 x Speaker header
1 x SPI TPM header (14-1 pin)
1 x 10-1 pin System Panel header
TPM (Trusted Platform Module )
Yes
Others
Special Features
ASUS 5X PROTECTION III
- DIGI+ VRM
- LANGuard
- Overvoltage Protection
- SafeSlot Core
- Stainless-Steel Back I/O
ASUS Q-Design
- Q-DIMM
- Q-Slot
- Q-LED Core
ASUS Thermal Solution
- Aluminum heatsink design
USBGuard
Warranty Information
Manufacturing Warranty
3 years warranty

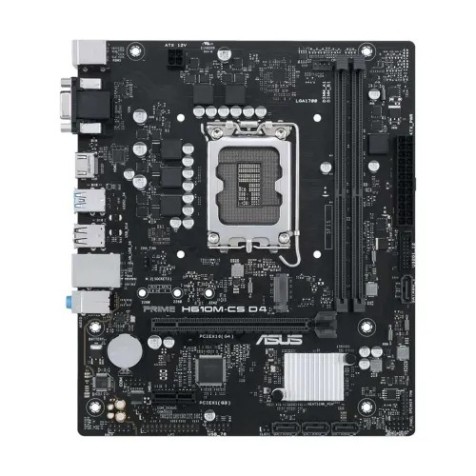

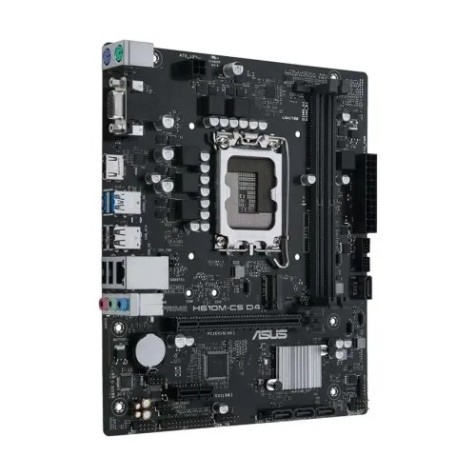

Asus PRIME H610M-CS D4 mATX Motherboard
The Asus PRIME H610M-CS D4 is a Micro-ATX motherboard built on the Intel H610 chipset, designed to provide a stable and reliable foundation for a new PC build or upgrade. It supports 12th, 13th, and 14th Gen Intel Core, Pentium Gold, and Celeron processors via the LGA 1700 socket. This board strikes a balance between essential features and affordability, making it an excellent choice for budget-conscious users building a system for everyday computing, home office tasks, or light gaming. This motherboard comes equipped with a PCIe 4.0 x16 slot, offering robust bandwidth for modern graphics cards. For storage, it provides a single M.2 slot that supports PCIe 3.0 x4 SSDs, enabling fast boot and application load times. Additionally, there are four SATA 6Gb/s ports for traditional hard drives and SSDs. The board supports dual-channel DDR4 memory with speeds up to 3200MHz and a maximum capacity of 64GB across two DIMM slots. As part of the ASUS PRIME series, the H610M-CS D4 incorporates ASUS 5X Protection III, a suite of hardware safeguards that includes features like LANGuard for surge protection, overvoltage protection, and a stainless-steel back I/O for enhanced durability. It also has a luminous anti-moisture coating to protect components from corrosion in humid environments. The board also features a UEFI BIOS with an intuitive EZ Mode, making system configuration and monitoring straightforward for both beginners and experienced builders.
Features of Asus PRIME H610M-CS D4
Socket: LGA 1700, making it compatible with 12th, 13th, and 14th Generation Intel Core, Pentium Gold, and Celeron processors.
Chipset: Intel H610.
Memory: Two DDR4 DIMM slots supporting a maximum of 64GB of RAM with speeds up to 3200MHz. It features ASUS's OptiMem II technology for enhanced signal integrity and stability.
PCIe Slots: One PCIe 4.0 x16 slot for modern graphics cards and one PCIe 3.0 x1 slot for additional expansion cards.
M.2 Slot: A single M.2 slot that supports a PCIe 3.0 x4 SSD, providing fast storage options.
SATA Ports: Four SATA 6Gb/s ports for connecting traditional hard drives or SATA SSDs.
LANGuard: A hardware-level network protection feature with advanced signal-coupling technology and premium anti-EMI surface-mounted capacitors for improved throughput and a more reliable connection.
Overvoltage Protection: An exclusive circuit design with built-in voltage regulators to protect the motherboard from damage caused by unstable power supplies.
Stainless-Steel Back I/O: Corrosion-resistant I/O panels that are bonded with chromium oxide for a lifespan that is three times longer than ordinary panels.
SafeSlot Core: ASUS's exclusive fortified PCIe slot, secured to the motherboard with strengthened solder points to resist damage from heavy graphics cards.
Luminous Anti-moisture coating: A special coating that protects the motherboard's components from moisture and corrosion, which is particularly useful in humid climates.
Video Outputs: It provides a D-Sub (VGA) and an HDMI port on the rear I/O, allowing for multi-monitor setups.
USB Ports: A combination of USB 3.2 Gen 1 and USB 2.0 ports on the rear panel and as internal headers.
Networking: A Realtek 1Gb Ethernet port for reliable wired internet connectivity.
UEFI BIOS: An intuitive and user-friendly graphical interface that offers an "EZ Mode" for simple configuration and an "Advanced Mode" for fine-tuning system settings.
Q-DIMM and Q-Slot: These features simplify the process of installing and removing memory modules and graphics cards.
Q-LED Core: Diagnostic LEDs that provide a visual indication of potential boot-up issues.
