Supported CPU: 14th, 13th Gen & 12th Gen Processors (LGA1700)
অর্ডার করার পূর্বে কাস্টমার কেয়ার থেকে পন্যের স্টক ও ডেলিভারি সম্পর্কে জেনে নেয়ার অনুরোধ করা যাচ্ছে। প্রযুক্তি পণ্যের মূল্য অস্থিতিশীল হওয়ায় কারণে যেকোন মুহূর্তে যেকোন প্রযুক্তি পণ্যের মূল্য পরিবর্তন হতে পারে।
Intel Socket LGA1700 for Intel Core 14th & 13th Gen Processors, Intel Core 12th Gen, Pentium Gold and Celeron Processors*
Supports up to Intel 65W CPU
Supports Intel Turbo Boost Technology 2.0 and Intel Turbo Boost Max Technology 3.0
Chipset
Intel H610 Chipset
Form Factor
mATX Form Factor
8.9 inch x 7.7 inch (22.6 cm x 19.5 cm )
Audio
Realtek 7.1 Surround Sound High Definition Audio CODEC*
- Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking
- Supports up to 24-Bit/192 kHz playback
Audio Features
- Audio Shielding
- Premium audio capacitors
- Dedicated audio PCB layers
* A chassis with an HD audio module in the front panel is required to support 7.1 Surround Sound audio output.
Rear USB (Total 6 ports)
2 x USB 3.2 Gen 1(5G) ports (2 x Type-A)
4 x USB 2.0 ports (4 x Type-A)
Front USB (Total 4 ports)
1 x USB 3.2 Gen 1(5G) header supports additional 2 USB 3.2 Gen 1 ports
1 x USB 2.0 header supports additional 2 USB 2.0 ports
LAN Port
1 x Realtek 1Gb Ethernet
Supported Storage
Total supports 1 x M.2 slot and 4 x SATA 6Gb/s ports
Intel H610 Chipset
M.2 slot (Key M), type 2242/2260/2280 (supports PCIe 3.0 x4 mode)
4 x SATA 6Gb/s ports
RAID
N/A
Internal I/O Ports
Fan and Cooling related
1 x 4-pin CPU Fan header
1 x 4-pin Chassis Fan header
Power related
1 x 24-pin Main Power connector
1 x 4-pin +12V Power connector
Storage related
1 x M.2 slot (Key M)
4 x SATA 6Gb/s ports
USB
1 x USB 3.2 Gen 1(5G) header supports additional 2 USB 3.2 Gen 1 ports
1 x USB 2.0 header supports additional 2 USB 2.0 ports
Miscellaneous
1 x Clear CMOS header
1 x Chassis Intrusion header
1 x COM Port header
1 x Front Panel Audio header (AAFP)
1 x LPT header
1 x Speaker header
1 x 10-1 pin System Panel header
TPM (Trusted Platform Module )
1 x SPI TPM header (14-1 pin)
Others
Special Features
ASUS 5X PROTECTION III
- DIGI+ VRM
- LANGuard
- Overvoltage Protection
- SafeSlot Core
- Stainless-Steel Back I/O
ASUS Q-Design
- Q-DIMM
- Q-Slot
- Q-LED Core
ASUS Thermal Solution
- Aluminum heatsink design
USBGuard
Warranty Information
Manufacturing Warranty
3 years warranty

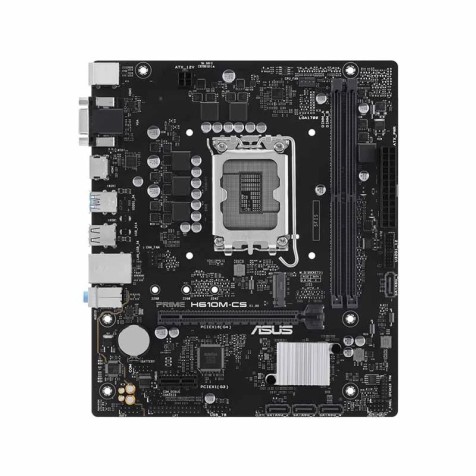

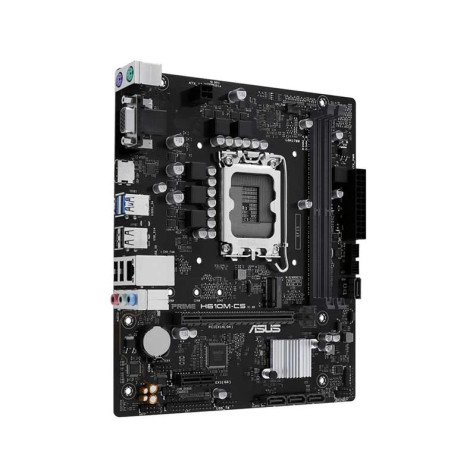

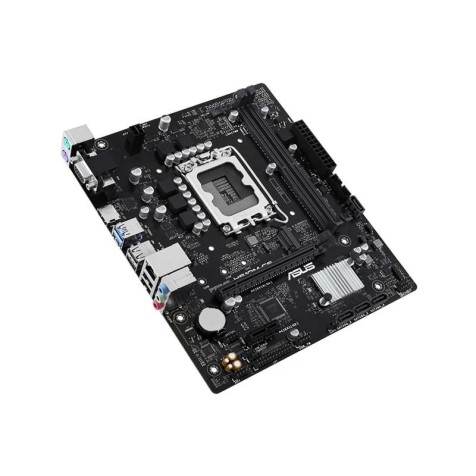

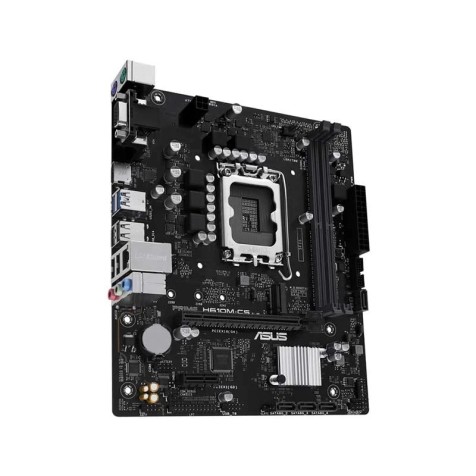

Asus PRIME H610M-CS DDR5 mATX Motherboard
The ASUS PRIME H610M-CS DDR5is a micro-ATX motherboard that provides a stable and modern platform for building a new PC, setting itself apart with its support for next-generation DDR5 memory. Built on the Intel H610 chipset with the LGA 1700 socket, it is compatible with the latest 12th, 13th, and 14th Gen Intel Core processors, making it a future-proof choice for budget-conscious builders. A key highlight of this board is its DDR5 memory support, which offers significantly faster speeds and improved power efficiency compared to its DDR4 counterparts. It features two DIMM slots, allowing for a maximum of 96GB of DDR5 RAM at speeds up to 5600MHz, ensuring excellent performance for demanding applications and multitasking. For graphics and expansion, the motherboard is equipped with a PCIe 4.0 x16 slot, providing high-speed bandwidth for modern graphics cards. Storage is handled by a single M.2 slot that supports PCIe 3.0 x4 SSDs, delivering fast boot and load times. It also includes four SATA 6Gb/s ports for additional storage drives. As part of the ASUS PRIME series, this board incorporates ASUS 5X Protection III, a suite of hardware safeguards that includes features like LANGuard for surge-protected network connections and overvoltage protection to shield the board from power fluctuations. The user-friendly UEFI BIOS with a graphical interface and Q-LED Core diagnostic LEDs simplifies the building and troubleshooting process, making this a reliable and durable choice for any PC build.
Features of Asus PRIME H610M-CS DDR5
Socket: LGA 1700, making it compatible with 12th, 13th, and 14th Generation Intel Core, Pentium Gold, and Celeron processors.
Chipset: Intel H610.
Memory: Two DDR5 DIMM slots, supporting a maximum of 96GB of DDR5 RAM with speeds up to 5600MHz. This provides significant performance benefits for memory-intensive tasks.
PCIe Slot: It includes one high-speed PCIe 4.0 x16 slot for graphics cards, ensuring full-speed performance for modern GPUs.
M.2 Slot: A single M.2 slot that supports PCIe 3.0 x4 SSDs, allowing for fast and efficient storage.
SATA Ports: Four SATA 6Gb/s ports are available for connecting traditional hard drives or SATA SSDs.
LANGuard: A hardware-level network protection feature with advanced signal-coupling technology for a more reliable network connection.
Overvoltage Protection: An exclusive circuit design with built-in voltage regulators to protect the motherboard from unstable power supplies.
SafeSlot Core: A fortified PCIe slot that is secured to the motherboard with stronger solder points to resist damage from heavy graphics cards.
Stainless-Steel Back I/O: Corrosion-resistant I/O panels that have a lifespan three times longer than ordinary panels.

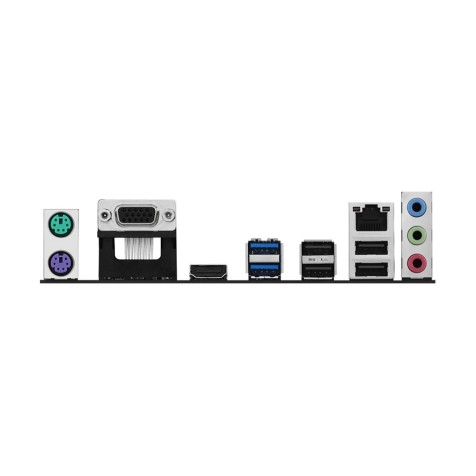

Display Outputs: The rear I/O panel includes D-Sub (VGA) and HDMI ports, providing flexibility for connecting to various monitors.
USB Ports: A combination of USB 3.2 Gen 1 and USB 2.0 ports on the rear panel and as internal headers.
Networking: A Realtek 1Gb Ethernet port for stable and reliable wired internet connectivity.
UEFI BIOS: An intuitive and user-friendly graphical interface that offers an "EZ Mode" for simple configuration and an "Advanced Mode" for fine-tuning system settings.
Q-LED Core: Diagnostic LEDs that provide a visual indication of potential boot-up issues with the CPU, RAM, GPU, or boot device.
Q-DIMM: Simplified memory module installation with one-sided clips.
