Intel Core Ultra Processors(Series 2), LGA1851
Support Intel Core Ultra Processors (Series 2) , LGA1851
Supports Intel Turbo Boost Technology 2.0 and Intel Turbo Boost Max Technology 3.0
Chipset
Intel Z890 Chipset
Form Factor
mATX Form Factor
9.6 inch x 9.6 inch (24.4 cm x 24.4 cm)
Audio
Realtek 7.1 Surround Sound High Definition Audio CODEC*
- Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking
- Supports up to 24-Bit/192 kHz playback
Audio Features
- Audio Shielding
- Premium audio capacitors
- Dedicated audio PCB layers
* A chassis with an HD audio module in the front panel is required to support 7.1 Surround Sound audio output.
Support up to 8666+MT/s (OC), Non-ECC, Un-buffered ,Clocked Unbuffered DIMM (CUDIMM)*
Dual channel memory architecture
DIMM Fit
Supports Intel® Extreme Memory Profile (XMP)
ASUS Enhanced Memory Profile III(AEMPIII)
Maximum Memory
192GB
Graphics
Graphics
1 x DisplayPort
1 x HDMI port
1 x USB 20Gbps port (USB Type-C) supports DisplayPort video output
*Graphics specifications may vary between CPU types
Connector & Ports
HDMI
1 x HDMI
Display Port (s)
1 x DisplayPort
1 x USB 20Gbps port (USB Type-C®) supports DisplayPort video output
USB

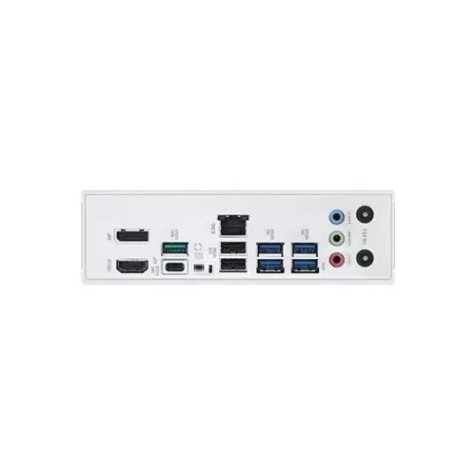

Rear USB (Total 8 ports)
1 x USB 20Gbps port (1 x USB Type-C with DP Alt mode)
1x USB 10Gbps port (1 x Type-A)
4 x USB 5Gbps ports (4 x Type-A)
2 x USB 2.0 ports (2 x Type-A) **
Front USB (Total 7 ports)
1 x USB 5Gbps connector (supports USB Type-C)
1 x USB 5Gbps header supports 2 additional USB 5Gbps ports
2 x USB 2.0 headers support 4 additional USB 2.0 ports**
* USB Type-C power delivery output: max. 5V/3A
** USB_E1 port, USB_E2 port, USB_E3 port and USB_E4 port share the bandwidth.
LAN Port
1 x Intel 2.5Gb Ethernet
TUF LANGuard
Supported Storage
3 x M.2 slots (Key M)
6 x SATA 6Gb/s ports
RAID
Intel Rapid Storage Technology supports PCIe RAID 0/1/5/10, SATA RAID 0/1/5/10, M.2 slot from CPU only supports RAID 0/1/5.
Internal I/O Ports
Fan and cooling related
1 x 4-pin CPU Fan header
1 x 4-pin CPU OPT Fan header
1 x 4-pin AIO Pump header
4 x 4-pin Chassis Fan headers
Power related
1 x 24-pin Main Power connector
1 x 8-pin +12V CPU Power connector
1 x 4-pin +12V CPU Power connector
Storage related
3 x M.2 slots (Key M)
6 x SATA 6Gb/s ports
USB
1 x USB 5Gbps connector (supports USB Type-C)
1 x USB 5Gbps header supports 2 additional USB 5Gbps ports
2 x USB 2.0 headers support 4 additional USB 2.0 ports
Miscellaneous
3 x Addressable Gen2 headers
1 x Aura RGB header
1 x Clear CMOS header
1 x Chassis Intrusion header
1 x COM Port header
1 x Front Panel Audio header (F_AUDIO)
1 x S/PDIF Out header
1 x SPI TPM header (14-1pin)
1 x 10-1 pin Front System Panel header
1 x Thunderbolt (USB4) header
TPM (Trusted Platform Module )
1 x SPI TPM header (14-1pin)
Others
Special Features
ASUS 5X PROTECTION III
- DIGI+ VRM (- Digital power design with DrMOS)
- LANGuard
- Overvoltage Protection
- SafeSlot
- Stainless-Steel Back I/O
ASUS Q-Design
- Q-Antenna
- Q-Dashboard
- Q-DIMM
- Q-LED Core
- Q-Slot
ASUS Thermal Solution
- VRM heatsink design
ASUS EZ DIY
- BIOS FlashBack™ button
- BIOS FlashBack™ LED
- ProCool
- Pre-mounted I/O shield
Aura Sync
- Aura RGB header
- Addressable Gen 2 headers
Warranty Information
Manufacturing Warranty
3 Year Warranty

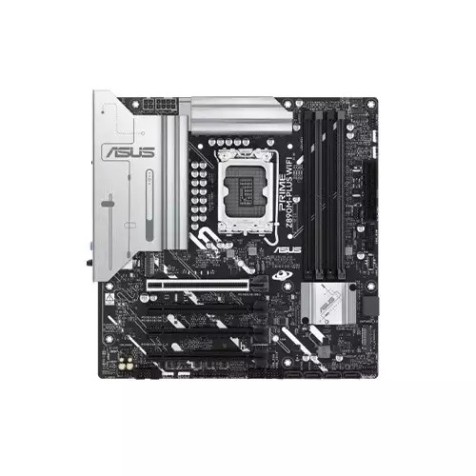

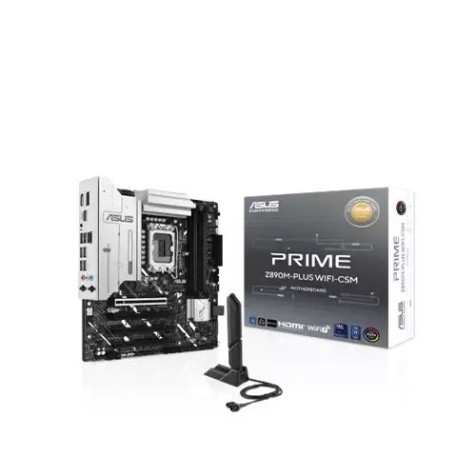

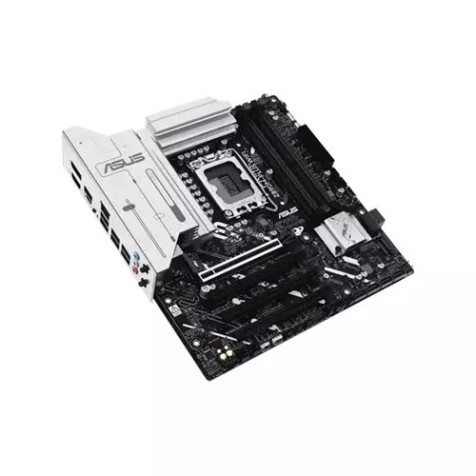

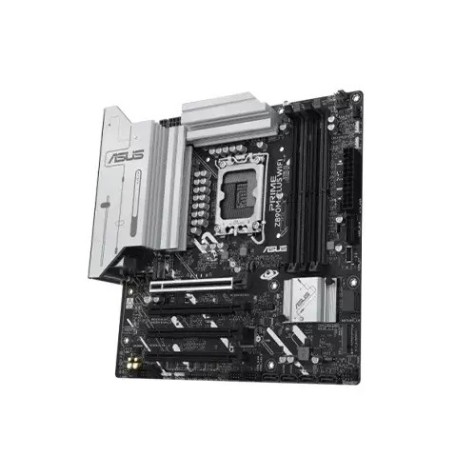

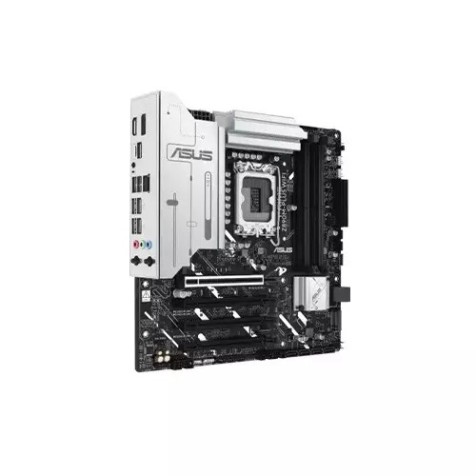

ASUS PRIME Z890M-PLUS WIFI-CSM LGA 1851 mATX Motherboard
The ASUS PRIME Z890M-PLUS WIFI-CSM is a Micro-ATX motherboard designed to be the compact yet powerful heart of next-generation PCs. As a part of ASUS’s Corporate Stable Model (CSM) series, it is engineered for long-term reliability and stability, making it an ideal choice for businesses, system integrators, and users who demand a durable, high-performance platform. This motherboard is built to support the future-facing Intel Core Ultra Processors (Series 2) on the new LGA 1851 socket. This motherboard is packed with features to handle demanding tasks. It supports DDR5 memory, with four DIMM slots allowing for up to 256GB of RAM and overclocked speeds reaching beyond 8800 MT/s, ensuring exceptional performance for both gaming and professional workloads. For storage, it includes a primary PCIe 5.0 x4 M.2 slot for the fastest available SSDs, along with two additional PCIe 4.0 x4 M.2 slots, providing ample high-speed storage options. Connectivity is a major highlight, with integrated Wi-Fi 7 and Bluetooth 5.4 for ultra-fast wireless networking. It also features a Realtek 2.5Gb Ethernet port for reliable, high-speed wired connections. The rear I/O is well-equipped with a versatile USB 20Gbps Type-C port with DisplayPort Alt mode. The PRIME Z890M-PLUS WIFI-CSM incorporates ASUS’s 5X PROTECTION III for enhanced durability and includes several Q-Design features to simplify PC building, such as the M.2 Q-Latch and a pre-mounted I/O shield. Its comprehensive cooling solutions, with VRM and M.2 heatsinks, ensure stable and efficient performance under heavy loads.
Features of ASUS PRIME Z890M-PLUS WIFI-CSM
CPU Support: Designed to unleash the performance of Intel Core Ultra Processors (Series 2).
Memory: Features four DIMM slots supporting up to 192GB of DDR5 RAM. It can achieve overclocked speeds of 8666+ MT/s and supports Intel XMP and ASUS Enhanced Memory Profile III (AEMP III).
Power Design: A robust power solution with 10+1+2+1 power stages (rated for 80A) ensures stable and efficient power delivery, especially for high-core-count CPUs.
Storage: The board provides three M.2 slots: one supporting the ultra-fast PCIe 5.0 x4 standard and two that support PCIe 4.0 x4. It also has six SATA 6Gb/s ports for extensive storage options.
Expansion Slots: It features a PCIe 5.0 x16 slot for a high-end graphics card and several other PCIe 4.0 slots for additional expansion cards.
Networking: This motherboard is equipped with integrated Wi-Fi 7 and Bluetooth 5.4, offering blazing-fast, low-latency wireless connections. It also has a Realtek 2.5Gb Ethernet port for high-speed wired networking.
USB Ports: A versatile set of USB ports is available, including a rear USB 20Gbps Type-C port with DisplayPort Alt mode.
Cooling: It includes VRM and M.2 heatsinks and a comprehensive fan control system to maintain optimal temperatures.
ASUS Q-Design: Features like the M.2 Q-Latch for tool-free SSD installation, a pre-mounted I/O shield, and Q-LEDs for easy diagnostics simplify the building process.
TPM Support: A dedicated SPI TPM header is included, making it compliant with hardware-based security requirements.
Aura Sync: Supports ASUS Aura Sync for customizable RGB lighting.
