Intel Socket LGA1700 for 14th, 13th & 12th Gen Intel Core, Pentium Gold and Celeron Processors
Supports Intel Turbo Boost Technology 2.0 and Intel Turbo Boost Max Technology 3.0**
* Refer to www.asus.com for CPU support list.
** Intel Turbo Boost Max Technology 3.0 support depends on the CPU types.
Chipset
Intel B660 Chipset
Form Factor
microATX
24.4cm x 24.4cm
Audio
Realtek 7.1 Surround Sound High Definition Audio CODEC*
- Supports: Jack-detection, Front Panel Jack-retasking
- Supports up to 24-Bit/192 kHz playback "
* A chassis with an HD audio module in the front panel is required to support 7.1 Surround Sound audio output.
Expansion Slots
PCI
Intel 12th Gen Processors
1 x PCIe 4.0/3.0 x16 slot
Intel B660 Chipset
2 x PCIe 3.0 x1 slots
2 x DisplayPort**
1 x D-Sub port
1 x HDMI port
** Supports max. 4K@60Hz as specified in DisplayPort 1.4.
*** Supports 4K@60Hz as specified in HDMI 2.1.

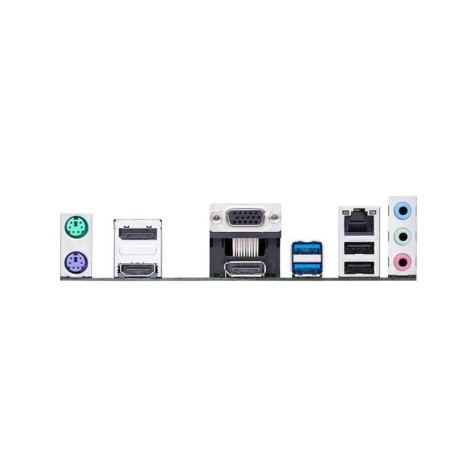

Connector & Ports
HDMI
1 x HDMI
Display Port (s)
2 x DisplayPort
USB
Rear USB (Total 4 ports)
2 x USB 3.2 Gen 1 ports (2 x Type-A)
2 x USB 2.0 ports (2 x Type-A)
Front USB (Total 7 ports)
1 x USB 3.2 Gen 1 connector (suppports USB Type-C)
1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports
2 x USB 2.0 headers support additional 4 USB 2.0 ports
LAN Port
1 x Intel 1Gb Ethernet
ASUS LANGuard
Supported Storage
Supports 2 x M.2 slots and 4 x SATA 6Gb/s ports
Intel 12th Gen Processors
M.2_1 slot (Key M), type 2242/2260/2280
- Intel 12th Gen processors support PCIe 4.0 x4 mode
Intel B660 Chipset**
M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4)
4 x SATA 6Gb/s ports
* Intel Rapid Storage Technology supports SATA RAID 0/1/5/10.
** Intel Rapid Storage Technology supports Intel Optane Memory H Series on PCH attached M.2 slots.
RAID
Yes
Internal I/O Ports
Fan and cooling related
1 x 4-pin CPU Fan header
2 x 4-pin Chassis Fan headers
Power related
1 x 24-pin Main Power connector
1 x 8-pin +12V Power connector
Storage related
2 x M.2 slots (Key M)
4 x SATA 6Gb/s ports
USB
1 x USB 3.2 Gen 1 connector (suppports USB Type-C)
1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports
2 x USB 2.0 headers support additional 4 USB 2.0 ports
Miscellaneous
1 x Clear CMOS header
1 x Chassis Intrude header
2 x COM Port headers
1 x Front Panel Audio header (AAFP)
1 x COM debug header
1 x LPT header
1 x Mono-out header(with Amp IC)
1 x M.2 slot (Key E)
1 x SMBUS header
1 x Speaker header
1 x 10-1 pin System Panel header
TPM (Trusted Platform Module )
Yes
Others
Special Features
ASUS EZ DIY
- Box Headers
Bespoke Motherboard Design & Business Focused Features
- Q-LED Core
- ASUS Self Recovering BIOS
- ASUS Event Log
- ASUS Commercial BIOS kit
- Anti-Moisture
- 24/7 Reliability
- Overcurrent Protection
TPM IC onboard
Warranty Information
Manufacturing Warranty
3 Years

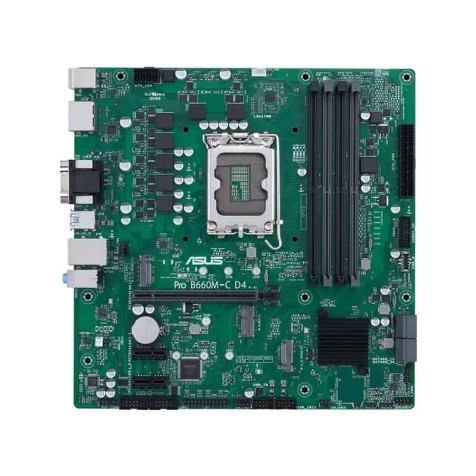

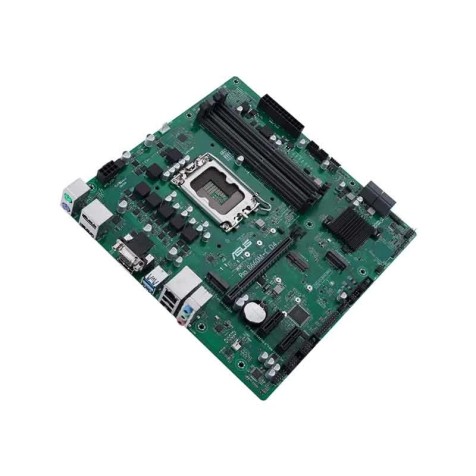

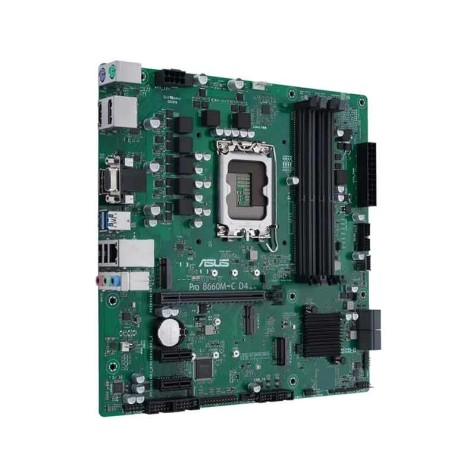

ASUS Pro B660M-C D4-CSM mATX Motherboard
The ASUS Pro B660M-C D4-CSM is a Micro-ATX motherboard from the Corporate Stable Model (CSM) series, specifically engineered to meet the stringent demands of businesses, schools, and enterprise environments. It's built on the Intel B660 chipset and features the LGA 1700 socket, providing a stable and reliable platform for 14th, 13th, and 12th Gen Intel Core processors. This motherboard's focus is on security, manageability, and long-term stability, making it a dependable choice for mission-critical systems. A key benefit of the CSM program is the enhanced product lifecycle support, which includes a stable product supply for up to 36 months and a 6-month end-of-life notice, ensuring businesses can plan for hardware transitions with confidence. The board comes with ASUS Control Center Express (ACCE), a server-grade IT management software that simplifies IT operations and boosts productivity with centralized monitoring and control. For performance, the motherboard supports DDR4 memory with four DIMM slots, allowing for up to 128GB of RAM with overclocked speeds up to 5000MHz. It's equipped with a PCIe 4.0 x16 slot for graphics cards and two M.2 slots that support PCIe 4.0 x4 NVMe SSDs, providing fast storage options. The board also features Intel 1Gb Ethernet with ASUS LANGuard for stable network connectivity and has an onboard TPM module for enhanced security. This combination of robust features and enterprise-focused support makes the Pro B660M-C D4-CSM a highly practical and reliable solution for professional use.
Features of ASUS Pro B660M-C D4-CSM
Stable Supply: A guaranteed product supply for up to 36 months, which is crucial for businesses that need to maintain consistent hardware.
End-of-Life (EOL) Notice: Provides a 6-month EOL notice, allowing businesses ample time to plan for hardware transitions.
IT Management Software: Includes ASUS Control Center Express (ACCE), a server-grade IT management software that simplifies IT operations, centralizes management, and enhances security.
Performance and Components:
CPU Support: Features the LGA 1700 socket and Intel B660 chipset, making it compatible with the latest 12th, 13th, and 14th Generation Intel Core, Pentium Gold, and Celeron processors.
Memory: It has four DDR4 DIMM slots, supporting a maximum of 128GB of RAM with overclocked speeds up to 5000MHz.
Expansion & Storage: Equipped with a PCIe 4.0 x16 slot for graphics cards and two M.2 slots that support PCIe 4.0 x4 NVMe SSDs. It also has four SATA 6Gb/s ports, including one that supports RAID.
TPM (Trusted Platform Module): Has an onboard TPM header, allowing for enhanced security and meeting Windows 11 requirements.
Networking: An Intel 1Gb Ethernet port with ASUS LANGuard provides a stable and secure network connection.
USB Ports: A full range of USB ports on the rear I/O and as internal headers, including USB 3.2 Gen 2.
Display Outputs: It has versatile display connectivity with HDMI, DisplayPort, and a VGA port.
ASUS 5X Protection III: This suite of hardware safeguards includes overvoltage protection, stainless-steel I/O, and SafeSlot Core, ensuring long-term durability.
Q-LED Core: Diagnostic LEDs help with troubleshooting during the boot process, which is essential for minimizing downtime in a business setting.
