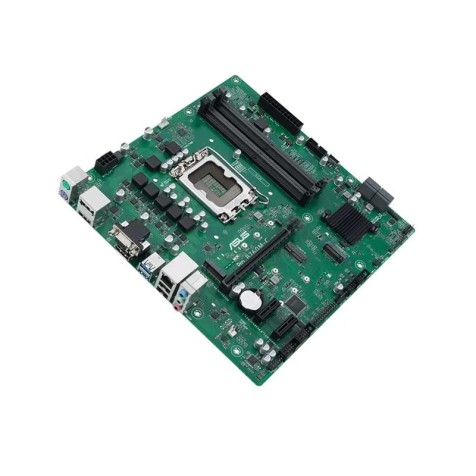

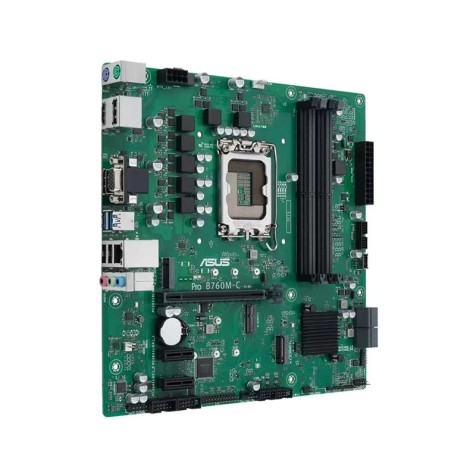

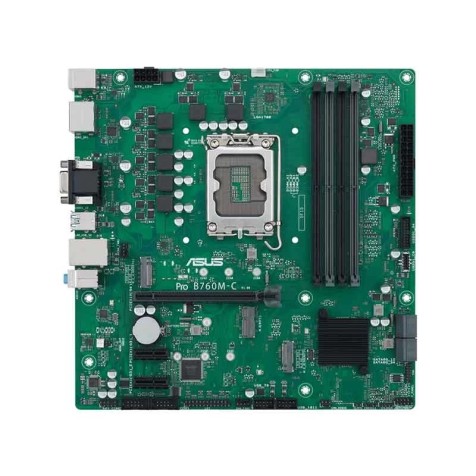

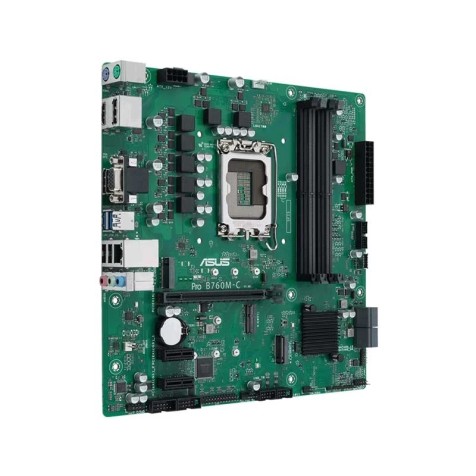

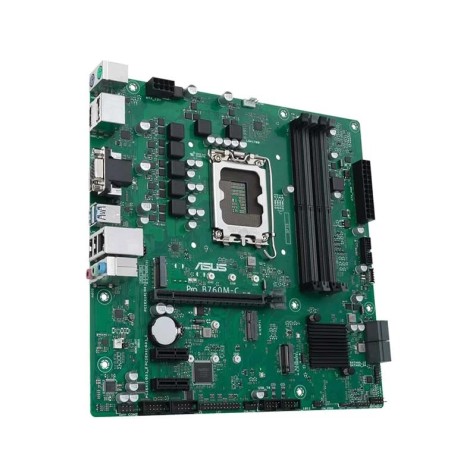

ASUS PRO B760M-C-CSM Micro-ATX Motherboard
The ASUS PRO B760M-C-CSM is a robust and reliable Micro-ATX motherboard designed with a focus on business and professional applications. It is part of ASUS's Corporate Stable Model (CSM) program, which ensures a long-term supply and stable hardware support, making it ideal for large-scale corporate deployments. Built on the Intel B760 chipset, this motherboard supports the latest 14th, 13th, and 12th Gen Intel Core processors via the LGA 1700 socket. A key feature is its support for DDR5 memory, with four DIMM slots allowing for a massive maximum capacity of 192GB and overclocked speeds up to 6200MHz. This is a significant advantage for users running memory-intensive applications. For expansion, it includes one PCIe 4.0 x16 slot for a high-performance graphics card and two PCIe 3.0 x1 slots for additional peripherals. Storage is plentiful with two M.2 slots (both supporting PCIe 4.0 x4) for lightning-fast NVMe SSDs and four SATA 6Gb/s ports. The board also includes business-centric features like an Anti-Moisture Coating, Anti-Sulfur Resistors, and overvoltage protection, ensuring 24/7 reliability in various environments. It also provides a comprehensive set of display outputs including two DisplayPorts, an HDMI port, and a VGA port, catering to diverse monitor setups.
Features of ASUS PRO B760M-C-CSM
- LGA 1700 Socket: Supports Intel 14th, 13th, and 12th Gen Core, Pentium Gold, and Celeron processors.
- DDR5 Memory: Features four DIMM slots for DDR5 RAM, with a maximum capacity of 192GB. It supports overclocked speeds up to 6200MHz, making it suitable for demanding, memory-intensive tasks.
- Intel B760 Chipset: Provides a solid, stable platform with a focus on business-oriented functionality.
- PCIe Slots: Includes one PCIe 4.0 x16 slot for a high-performance graphics card, and two PCIe 3.0 x1 slots for other expansion cards.
- Storage: Offers two M.2 slots (both supporting PCIe 4.0 x4 for high-speed NVMe SSDs) and four SATA 6Gb/s ports for traditional storage drives.
- RAID Support: The board supports Intel Rapid Storage Technology for SATA RAID 0, 1, 5, and 10 configurations, which is great for data redundancy and performance.

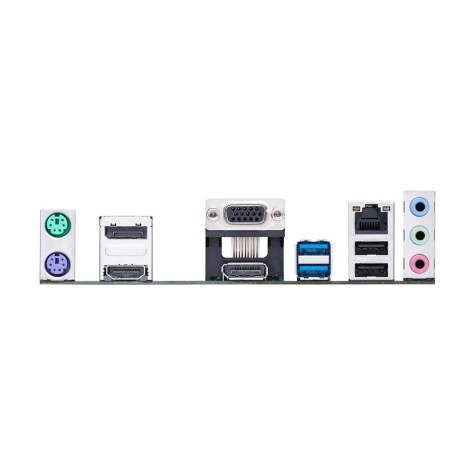

- Display Outputs: A versatile array of video outputs for integrated graphics, including two DisplayPorts, one HDMI port, and one VGA port.
- Networking: Features an Intel 1Gb Ethernet port with ASUS LANGuard protection. An M.2 Key E slot is also available for an optional Wi-Fi/Bluetooth module.
- USB Ports: A combination of USB 3.2 Gen 1 (Type-A and internal header for Type-C) and USB 2.0 ports are available on both the back panel and through internal headers.
- Corporate Stable Model (CSM): Part of ASUS's CSM program, ensuring a stable, long-term supply and advanced IT management software (ASUS Control Center Express - ACCE).
- Hardware Durability: The board includes an Anti-Moisture Coating, Anti-Sulfur Resistors, and Stainless-Steel Back I/O for enhanced durability and reliability in challenging environments.
- Self-Recovering BIOS: A key business feature that automatically restores the latest BIOS update, reducing maintenance frequency and downtime.
- TPM: It includes an SPI TPM header for a discrete TPM module, and it supports firmware TPM (fTPM) via the CPU.
- 24/7 Reliability Test: The motherboard is tested under extreme conditions to ensure it can operate reliably around the clock.
