ATX Form Factor
12 inch x 9.6 inch ( 30.5 cm x 24.4 cm )
Audio
ROG SupremeFX 7.1 Surround Sound High Definition Audio CODEC ALC4082*
- Impedance sense for front and rear headphone outputs
- Supports: Jack-detection, Multi-streaming, Front Panel MIC Jack-retasking
- High quality 120 dB SNR stereo playback output and 110 dB SNR recording input
- Supports up to 32-Bit/384 kHz playback on front panel"
Audio Features
- SupremeFX Shielding Technology
- ESS® ES9219 QUAD DAC
- Gold-plated audio jacks
- Rear optical S/PDIF out port
- Premium audio capacitors
* The LINE OUT port on the rear panel does not support spatial audio. If you wish to use spatial audio, make sure to connect your audio output device to the audio jack on the front panel of your chassis or use a USB interface audio device.
Expansion Slots
PCI
Intel® Core™ Ultra Processors (Series 2)
1 x PCIe 5.0 x16 slot (supports x16 or x8/x4/x4 modes)
Intel® Z890 Chipset
1 x PCIe 4.0 x4 slot
1 x PCIe 4.0 x1 slot
Memory
Type
DDR5
Slots
4x DIMM slots
Supported Memory
Support up to 9200+MT/s (OC), Non-ECC, Un-buffered, Clocked Unbuffered DIMM (CUDIMM)*
Dual channel memory architecture
Supports Intel® Extreme Memory Profile (XMP) memory module
Supports DIMM Flex
NitroPath DRAM Technology
DIMM FIT
ASUS Enhanced Memory Profile III (AEMP III)
Maximum Memory
256GB
Graphics
Graphics
1 x HDMI™ port**
2 x Intel® Thunderbolt™ 4 ports (USB Type-C®) support DisplayPort and Thunderbolt™ video outputs***
Supports max. 8K@60Hz with DSC as specified in HDMI 2.1.
In Thunderbolt™ 4 mode, supports up to 8K@60Hz x1 with DSC or 4K@60Hz x2, maximum total bandwidth up to 23.8Gbps or 16Gbps/16Gbps, for resolution support please check DisplayPort 2.1 specs.
In DP alt mode, Only one USB Type-C® port supports up to UHBR20 at a time.
VGA resolution support depends on processors' or graphic cards' resolution.
While installing the operating system, please ensure that your monitor is connected to the HDMI port on the back I/O panel or to a discrete graphics card.
Connector & Ports
HDMI
1 x HDMI
Display Port (s)
N/A
USB
Rear USB (Total 11 ports)
2 x Thunderbolt™ 4 ports (2 x USB Type-C®)
5 x USB 10Gbps ports (4 x Type-A + 1 x USB Type-C®)
4 x USB 5Gbps ports (4 x Type-A)
Front USB (Total 10 ports)
1 x USB 20Gbps connector (supports USB Type-C® with up to 60W PD/QC4+)**
1 x USB 10Gbps connector (supports USB Type-C®)
2 x USB 5Gbps headers support 4 additional USB 5Gbps ports
2 x USB 2.0 headers support 4 additional USB 2.0 ports
* USB Type-C® power delivery output: max. 5V/3A
** USB Type-C® power delivery output: 5/9/15/20V max. 3A, PPS:3.3–21V max. 3A
LAN Port
1 x Intel 2.5Gb Ethernet
1 x Realtek 5Gb Ethernet
ASUS LANGuard
Supported Storage
Supports up to 6 x M.2 slots and 4 x SATA 6Gb/s ports*
Intel® Core™ Ultra Processors (Series 2) *
M.2_1 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 5.0 x4 mode)
M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode)
M.2_3 slot (Key M), type 2242/2260/2280 (supports PCIe 5.0 x4 mode)**
M.2_4 slot (Key M), type 2242/2260/2280 (supports PCIe 5.0 x4 mode)
Intel® Z890 Chipset
M.2_5 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode)
M.2_6 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode)
4 x SATA 6Gb/s ports
RAID
Intel Rapid Storage Technology supports PCIe RAID 0/1/5/10, SATA RAID 0/1/5/10, M.2 slot from CPU only supports RAID 0/1/5
Internal I/O Ports
Back Panel I/O Ports
2 x Thunderbolt™ 4 USB Type-C® ports
5 x USB 10Gbps ports (4 x Type-A + 1 x USB Type-C®)
4 x USB 5Gbps ports (4 x Type-A)
1 x HDMI™ port
1 x Wi-Fi module
1 x Intel® 2.5Gb Ethernet port
1 x Realtek 5Gb Ethernet port
2 x Gold-plated audio jacks
1 x Optical S/PDIF out port
1 x BIOS FlashBack™ button
1 x Clear CMOS button
Internal I/O Connectors
Fan and Cooling Related
1 x 4-pin CPU Fan header
1 x 4-pin CPU OPT Fan header
1 x 4-pin AIO Pump header
4 x 4-pin Chassis Fan headers
1 x W_PUMP+ headers
Power Related
1 x 24-pin Main Power connector
2 x 8-pin +12V CPU Power connectors
1 x Graphics card high power slot
1 x 12V-2X6 Auxiliary power connector
Storage Related
6 x M.2 slots (Key M)
4 x SATA 6Gb/s ports
USB
1 x USB 20Gbps connector (supports USB Type-C® )
1 x USB 10Gps connector (supports USB Type-C® )
2 x USB 5Gbps headers support 4 additional USB 5Gbps ports
2 x USB 2.0 headers support 4 additional USB 2.0 ports
Miscellaneous
3 x Addressable Gen 2 headers
1 x Alteration PCIe mode switch
1 x FlexKey button
1 x Front Panel Audio header (F_AUDIO)
1 x Start button
1 x 10-1 pin System Panel header
1 x Thermal Sensor header
1 x Thunderbolt™ (USB4®) header*
* The Thunderbolt™ card can only be used when installed to the PCIEX16(G4) slot. Ensure to install your Thunderbolt™ card to the PCIEX16(G4) slot.

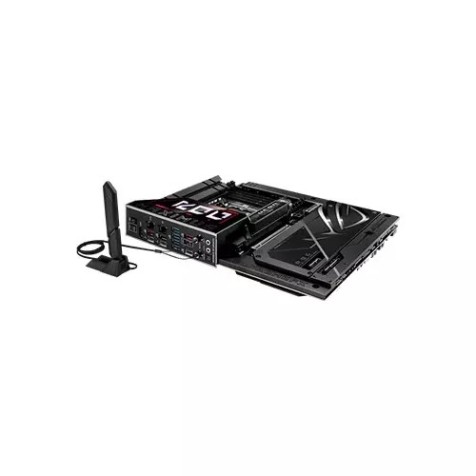

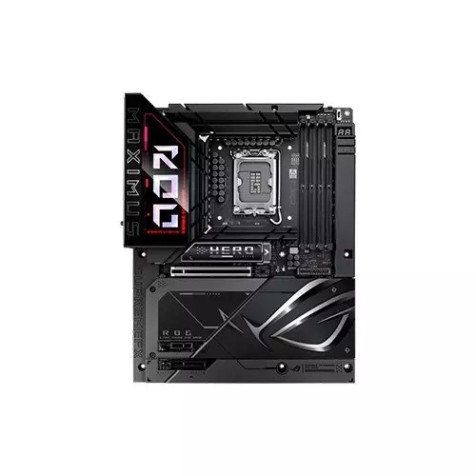

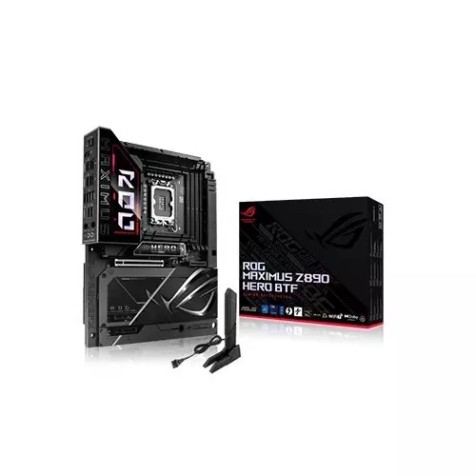

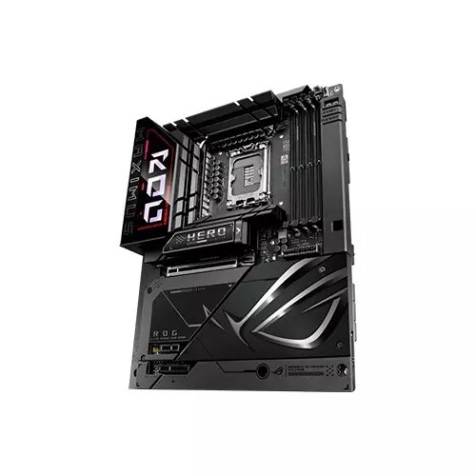

ASUS ROG MAXIMUS Z890 HERO BTF LGA1851 ATX Motherboard
The ASUS ROG MAXIMUS Z890 HERO BTF is a premium ATX motherboard that represents a new era of PC building with its innovative Back-To-the-Future (BTF) design. This revolutionary hidden-connector layout places all major power and data ports on the back of the motherboard, resulting in an incredibly clean, cable-free aesthetic on the front of your build. Beyond its striking design, the Z890 HERO BTF is an elite-tier motherboard built on the Intel Z890 chipset, supporting the latest Intel Core Ultra Processors (Series 2) on the LGA 1851 socket. Engineered for extreme performance, the board features a formidable 20+1+2+2 power stage design, each rated at 110 amps, providing a stable and reliable power delivery system for pushing your CPU to its limits through overclocking. It supports DDR5 memory with four DIMM slots, enabling speeds up to 9200+ MT/s and a maximum capacity of 256GB. To handle the heat generated by top-tier components, it includes a comprehensive cooling system with a massive VRM heatsink and an array of heatsinks for its six M.2 slots. Connectivity is a major highlight, with integrated Wi-Fi 7 and dual Ethernet ports (5Gb and 2.5Gb). The rear I/O panel is loaded with a variety of high-speed ports, including dual Thunderbolt 4 ports (USB Type-C) and multiple USB 20Gbps ports. The board also features two PCIe 5.0 x4 M.2 slots, along with a PCIe 5.0 x16 slot. The ROG MAXIMUS Z890 HERO BTF is the perfect choice for enthusiasts who demand the highest performance and a meticulously clean, showpiece-worthy build.
Features of ASUS ROG MAXIMUS Z890 HERO BTF

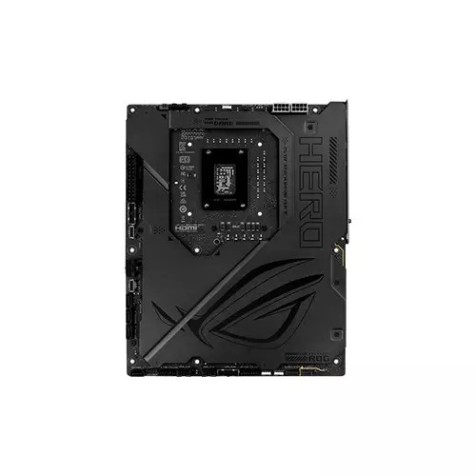

Back-To-the-Future (BTF) Design: This is the most distinctive feature. The BTF design hides all major connectors (24-pin power, 8-pin EPS, SATA, and fan headers) on the back of the motherboard. This creates an incredibly clean, cable-free aesthetic on the front of the build. Note that this requires a compatible BTF-ready chassis.
Processor and Chipset: It is built on the Intel Z890 chipset and features the LGA 1851 socket, providing full support for the latest Intel Core Ultra Processors (Series 2).
Power Design: A formidable 20+1+2+2 power stage design with each stage rated at 110 amps ensures stable and efficient power delivery for aggressive CPU overclocking.
Memory: Supports dual-channel DDR5 memory with four DIMM slots, allowing for a maximum capacity of 256GB and extreme overclocked speeds of 9200+ MT/s.
AI Intelligence: Features ASUS's full suite of AI technologies, including AI Overclocking, AI Cooling II, and AI Networking II for automated system optimization.
Wireless: Integrated Wi-Fi 7 (802.11be) for the fastest wireless speeds and lowest latency.
Wired: Dual Ethernet ports (5Gb and 2.5Gb) provide redundant and high-speed wired connectivity.
USB: The rear I/O is packed with ports, including two Thunderbolt 4 (USB Type-C) ports and multiple USB 20Gbps ports. It also has a front-panel USB 20Gbps header with up to 60W Power Delivery.
PCIe 5.0: Features a PCIe 5.0 x16 slot for the latest high-end graphics cards.
M.2 Slots: Six M.2 slots are available, including two PCIe 5.0 x4 slots for blazing-fast SSDs. All M.2 slots are covered by a large heatsink array for thermal management.
SATA: Four SATA 6Gb/s ports are also available.
Comprehensive Cooling: Includes a massive VRM heatsink, M.2 heatsink array, and a multi-layered PCB for superior heat dissipation.
DIY-Friendly: In addition to the BTF design, it includes features like the PCIe Slot Q-Release, M.2 Q-Latch, and a BIOS FlashBack button.
Audio: The ROG SupremeFX 7.1 Surround Sound audio codec (ALC4080) with a high-end ESS SABRE9018 DAC/AMP delivers pristine audio quality.
Aesthetics: The board's design is enhanced with ASUS Aura Sync RGB lighting and a polished metal finish, making it a visual showpiece.
