AMD Socket AM5 for AMD Ryzen 9000 & 8000 & 7000 Series Desktop Processors
Chipset
AMD B650
Form Factor
ATX Form Factor
12 inch x 9.6 inch ( 30.5 cm x 24.4 cm )
Audio
Realtek 7.1 Surround Sound High Definition Audio CODEC*
- Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking
- Supports up to 24-Bit/192 kHz playback
Audio Features
- Audio Shielding
- Premium audio capacitors
- Dedicated audio PCB layers
- Audio cover
* Due to limitations in HDA bandwidth, 32-Bit/192 kHz is not supported for 7.1 Surround Sound audio.
Expansion Slots
PCI
AMD Ryzen 9000 & 7000 Series Desktop Processors*
1 x PCIe 4.0/3.0 x16 slot(s)
AMD Ryzen 8000 Series Desktop Processors*
1 x PCIe 4.0 x16 slot (supports x8/x4 mode)**
AMD B650 Chipset
1 x PCIe 4.0/3.0 x16 slot (supports x1 mode)
1 x PCIe 4.0/3.0 x1 slots
Memory
Type
DDR5
Slots
4 DIMMs
Supported Memory
8000+ OC)/7800(OC)/7600(OC)/7200(OC)/7000(OC)/6800(OC)/6600(OC)/6400(OC)/6200(OC)/6000(OC)/5800(OC)/5600(OC)/5400(OC)/5200/5000/4800 ECC and Non-ECC, Un-buffered Memory*
Dual Channel Memory Architecture
Supports AMD EXTended Profiles for Overclocking (EXPO™)
OptiMem II
Maximum Memory
192GB
Graphics
Graphics
* Supports max. 8K@60Hz as specified in DisplayPort 1.4.
** Supports 4K@60Hz as specified in HDMI 2.1.
*** VGA resolution support depends on processors' or graphic cards' resolution.
Connector & Ports
HDMI
1x HDMI
Display Port (s)
1 x DisplayPort
USB
Rear USB (Total 8 ports)
2 x USB 10Gbps port(s) (1 x Type-A + 1 x USB Type-C)
3 x USB 5Gbps port(s) (3 x Type-A)
3 x USB 2.0 port(s) (3 x Type-A)
Front USB (Total 7 ports)
1 x USB 20Gbps connector (supports USB Type-C)
1 x USB 5Gbps header(s) support(s) 2 additional USB 5Gbps ports
2 x USB 2.0 header(s) support(s) 4 additional USB 2.0 ports
LAN Port
1 x Realtek 2.5Gb Ethernet
TUF LANGuard
Supported Storage
Total supports 3 x M.2 slots and 4 x SATA 6Gb/s ports
AMD Ryzen 9000 & 7000 Series Desktop Processors
M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 5.0 x4 mode)
M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode)
AMD Ryzen 8000 Series Desktop Processors
M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode)
M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4/x2 mode)**
AMD B650 Chipset
M.2_3 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x4 mode)
4 x SATA 6Gb/s ports
RAID
AMD RAIDXpert2 Technology supports both
PCIe RAID 0/1/10 and SATA RAID 0/1/10.
Internal I/O Ports
Internal I/O Connectors
Fan and Cooling related
1 x 4-pin CPU Fan header(s)
1 x 4-pin CPU OPT Fan header(s)
1 x 4-pin AIO Pump header(s)
4 x 4-pin Chassis Fan header(s)
Power related
1 x 24-pin Main Power connector
1 x 8-pin +12V Power connector
1 x 4-pin +12V Power connector
Storage related
3 x M.2 slots (Key M)
4 x SATA 6Gb/s ports
USB
1 x USB 20Gbps connector (supports USB Type-C)
1 x USB 5Gbps header(s) support(s) 2 additional USB 5Gbps ports
2 x USB 2.0 header(s) support(s) 4 additional USB 2.0 ports
Miscellaneous
3 x Addressable Gen 2 header(s)
1 x Aura RGB header(s)
1 x Clear CMOS header
1 x COM Port header
1 x Front Panel Audio header (AAFP)
20-3 pin System Panel header with Chassis intrude function

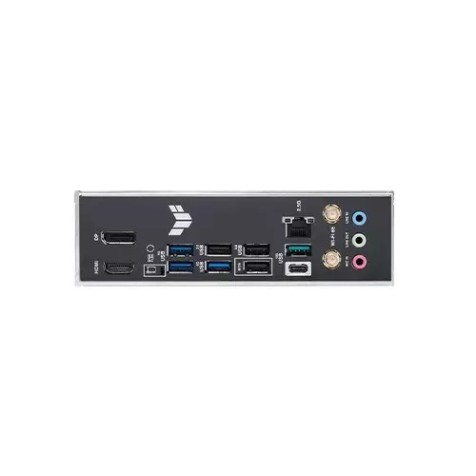

Back Panel I/O Ports
2 x USB 10Gbps port(s) (1 x Type-A + 1 x USB Type-C)
3 x USB 5Gbps port(s) (3 x Type-A)
3 x USB 2.0 port(s) (3 x Type-A)
1 x DisplayPort
1 x HDMI port
1 x Wi-Fi Module
1 x Realtek 2.5Gb Ethernet port
5 x Audio jacks
1 x BIOS FlashBack button
TPM (Trusted Platform Module )
AMD fTPM
Others
Special Features
ASUS TUF PROTECTION
- DIGI+ VRM (- Digital power design with DrMOS)
- Enhanced DRAM Overcurrent Protection
- ESD Guards
- TUF LANGuard
- Overvoltage Protection
- SafeSlot Core+
- Stainless-Steel Back I/O
ASUS Q-Design
- M.2 Q-Latch
- Q-DIMM
- Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green])
- Q-Slot
ASUS Thermal Solution
- M.2 heatsink
- VRM heatsink design
ASUS EZ DIY
- BIOS FlashBack button
- BIOS FlashBack LED
- ProCool
- Pre-mounted I/O shield
- SafeDIMM
Aura Sync
- Aura RGB header(s)
- Addressable Gen 2 header(s)
Warranty Information
Manufacturing Warranty
3 Years

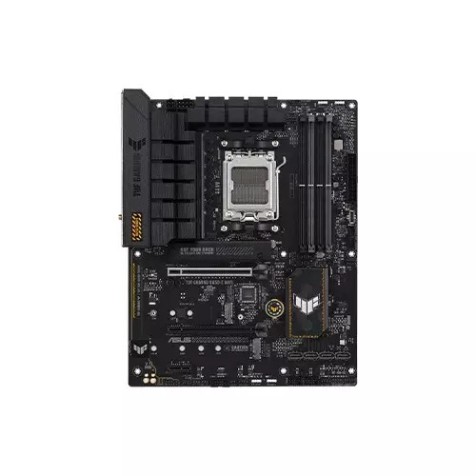

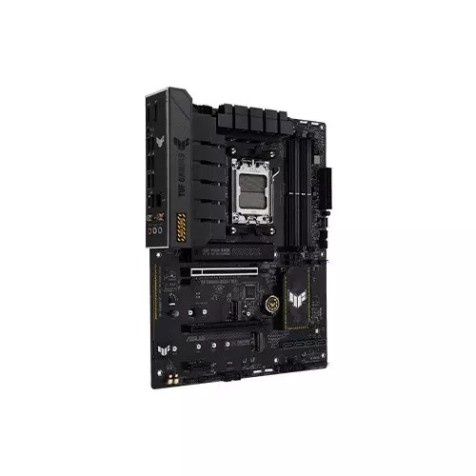

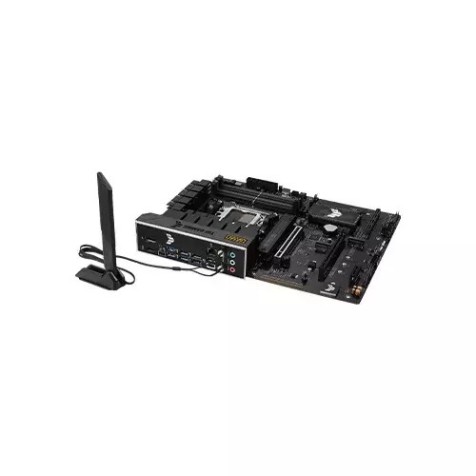

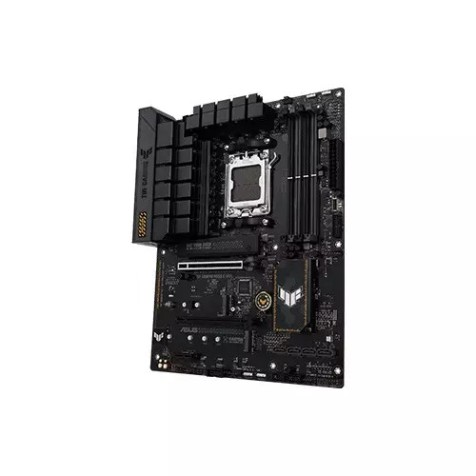

Asus TUF GAMING B650-E WIFI DDR5 AM5 ATX Motherboard
The ASUS TUF GAMING B650-E WIFI is a robust ATX motherboard designed to support AMD's latest Ryzen 7000, 8000, and 9000 Series processors on the AM5 socket. It's part of the TUF Gaming lineup, known for its durable components and reliable performance. This board provides a fantastic platform for high-performance gaming and content creation builds without the premium price of an X670E chipset. A key highlight is its extensive connectivity. It features a PCIe 5.0 M.2 slot, enabling the use of the fastest NVMe SSDs available for ultra-quick boot and load times. The motherboard also includes multiple other M.2 slots and four SATA ports for flexible storage options. For networking, it's equipped with Wi-Fi 6E for stable, low-latency wireless connections and Realtek 2.5Gb Ethernet for speedy wired internet. A wide array of USB ports, including a front-panel USB 20Gbps Type-C header, ensures you can connect all your peripherals. Built for stability and longevity, the B650-E WIFI boasts a robust 8+2+1 power stage design with large VRM heatsinks to keep power delivery cool and efficient. ASUS's TUF Protection suite includes features like a reinforced PCIe slot and overvoltage protection. The board's aesthetic is clean and industrial, with subtle RGB lighting that can be customized with Aura Sync. Overall, it's a feature-rich, durable, and high-performance option for building a powerful AMD-based PC.
Features of Asus TUF GAMING B650-E WIFI
CPU Support: It supports AMD's latest Ryzen 7000, 8000, and 9000 Series desktop processors on the AM5 socket.
Power Design: It features a robust 8+2+1 power stage design with high-quality components and enlarged VRM heatsinks to ensure stable and efficient power delivery to the CPU, even during demanding tasks.
Memory Support: It has four DIMM slots for DDR5 memory, with a maximum capacity of 192GB and support for overclocked speeds up to 8000+ MHz. It also supports AMD EXPO for simplified memory overclocking.
PCIe 5.0: A key feature is the PCIe 5.0 M.2 slot, which provides the fastest possible data transfer speeds for the latest NVMe SSDs.
Storage: In total, it has three M.2 slots and four SATA 6Gb/s ports, allowing for extensive storage configurations. The M.2 slots support NVMe RAID for even greater performance.
Networking: It comes with an integrated Wi-Fi 6E module for high-speed wireless connectivity on the 6GHz band, as well as a Realtek 2.5Gb Ethernet port for reliable and fast wired connections.
USB Connectivity: It offers a wide range of USB ports, including a front-panel USB 20Gbps Type-C header, multiple USB 10Gbps (Type-A and Type-C) ports, and several USB 5Gbps and USB 2.0 ports.
TUF Protection: The motherboard is built with military-grade components and a suite of hardware safeguards known as TUF Protection, which includes SafeSlot Core+ for a reinforced PCIe slot and LANGuard to protect the network connection.
Cooling: It is designed with a comprehensive cooling solution, including VRM and M.2 heatsinks, and multiple fan headers that can be managed through Fan Xpert 4 software.
DIY-Friendly Design: Features like M.2 Q-Latch make it easy to install or remove M.2 SSDs without screws, and Q-LED Core provides a quick diagnostic check for key components during startup.
Aura Sync: It supports Aura Sync RGB lighting, allowing users to customize and synchronize lighting effects across compatible components.
