mATX Form Factor
9.6inch x 9.6 inch ( 24.4 cm x 24.4 cm )
Audio
Realtek 7.1 Surround Sound High Definition Audio CODEC
Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking
Supports up to 24-Bit/192 kHz playback
Expansion Slots
PCI
Intel® CoreTM Ultra Processors(Series 2)*
1 x PCIe 5.0 x16 slot
Intel® B860 Chipset
1 x PCIe 4.0 x4 slot
Memory
Type
DDR5
Slots
4
Supported Memory
4 x DIMM slots, max. 256GB, DDR5
Support up to 8800+MT/s (OC), Non-ECC,Un-buffered ,Clocked Unbuffered DIMM (CUDIMM)
Dual Channel Memory Architecture
DIMM Fit
Supports Intel® Extreme Memory Profile (XMP) memory module
ASUS Enhanced Memory Profile III(AEMPIII)
Maximum Memory
Capacity 256GB
Graphics
Graphics
1 x DisplayPort
1 x HDMI port
1 x USB 20Gbps port (USB Type-C) supports DisplayPort video output
Graphics specifications may vary between CPU types. Please refer to www.intel.com for any updates.
Supports max. 4K@60Hz as specified in DisplayPort 1.4.
Supports 4K@60Hz as specified in HDMI 2.1.
Supports max. 4K@60Hz as specified in DisplayPort 1.4.
Connector & Ports
HDMI
1x HDMI 2.1
Display Port (s)
1x DisplayPort 1.4a
USB
Rear USB (Total 8 ports)
1 x USB 20Gbps port (1 x USB Type-C®)
2 x USB 10Gbps ports (2 x Type-A)
3 x USB 5Gbps ports (3 x Type-A)
2 x USB 2.0 ports (2 x Type-A)
Front USB (Total 5 ports)
1 x USB USB 10Gbps connector (supports USB Type-C®)
1 x USB 5Gbps header supports 2 additional USB 5Gbps ports
1 x USB 2.0 header supports 2 additional USB 2.0 ports
USB Type-C® power delivery output: max. 5V/3A
LAN Port
1 x Realtek 2.5Gb Ethernet
TUF LANGuard
Supported Storage
Supports 3 x M.2 slots and 4 x SATA 6Gb/s ports*
Intel® Core™ Ultra Processors(Series 2)*
M.2_1 slot (Key M), type 2280 (supports PCIe 5.0 x4 mode)
Intel® B860 Chipset
M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode)
M.2_3 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode)
4 x SATA 6Gb/s ports
RAID
SATA RAID 0/1/5/10
Internal I/O Ports
I/O Connectors Fan and Cooling related
1 x 4-pin CPU Fan header
1 x 4-pin CPU OPT Fan header
1 x 4-pin AIO Pump header
3 x 4-pin Chassis Fan headers
Power related
1 x 24-pin Main Power connector
2 x 8-pin +12V Power connectors
Storage related
3 x M.2 slots (Key M)
4 x SATA 6Gb/s ports
USB
1 x USB 10Gbps connector (supports USB Type-C® )
1 x USB 5Gbps header supports 2 additional USB 5Gbps ports
1 x USB 2.0 header supports 2 additional USB 2.0 ports
Miscellaneous
3 x Addressable Gen 2 headers
1 x Clear CMOS header
1 x Chassis Intrusion header
1 x Front panel audio header (F_AUDIO)
1 x 10-1 pin Front System Panel header
1 x Thunderbolt™ (USB4®) header
TPM (Trusted Platform Module )
Yes , SPI TPM header
Others
Special Features
ASUS TUF PROTECTION
- DIGI+ VRM (- Digital power design with DrMOS)
- ESD Guards
- TUF LANGuard
- Overvoltage Protection
- SafeSlot
- Stainless-Steel Back I/O
ASUS Q-Design
- M.2 Q-Latch
- PCIe Slot Q-Release
- Q-Antenna
- Q-Dashboard
- Q-DIMM
- Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green])
ASUS Thermal Solution
- M.2 heatsinks
- VRM heatsink design
ASUS EZ DIY
- CPU Socket lever protector
- ProCool
- Pre-mounted I/O shield
- SafeDIMM
AURA Sync
- Addressable Gen 2 headers
Warranty Information
Manufacturing Warranty
3 Year warranty

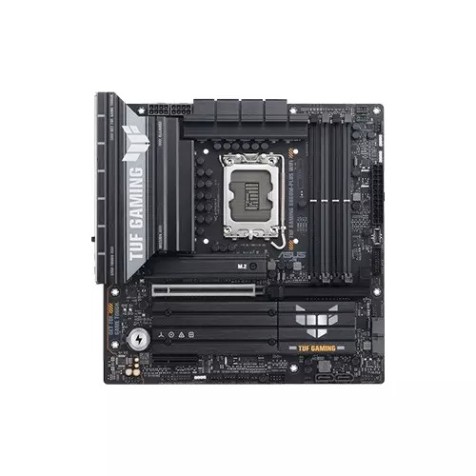

Asus TUF GAMING B860M-PLUS WIFI LGA 1851 Micro-ATX Motherboard
The ASUS TUF GAMING B860M-PLUS WIFI is a Micro-ATX motherboard designed for gamers and enthusiasts who want a compact yet powerful build. It is built to support the latest Intel Core Ultra Processors (Series 2) on the LGA 1851 socket, offering a blend of military-grade durability and high-performance gaming features. This motherboard is equipped to handle demanding workloads and the latest games. It supports DDR5 memory, with speeds reaching up to 8600 MT/s through ASUS Enhanced Memory Profile III (AEMP III). For storage, it provides two M.2 slots, including a PCIe 5.0 x4 slot for lightning-fast NVMe SSDs and a second PCIe 4.0 x4 slot.The board’s robust power solution features a 12+1 power stage design, ensuring stable and reliable power delivery to the CPU. Connectivity is a major highlight, with integrated Wi-Fi 6E that supports the tri-band (2.4/5/6GHz) for low-latency gaming, and a Realtek 2.5Gb Ethernet port for a stable, high-speed wired connection. The rear I/O panel includes a versatile USB 20Gbps Type-C port with DisplayPort Alt mode. True to the TUF GAMING ethos, the motherboard is built with durable components, including military-grade TUF chokes and capacitors. Its comprehensive cooling solution includes large VRM and M.2 heatsinks to maintain optimal temperatures. The board also features Aura Sync RGB lighting and a striking design that makes it a focal point of any build. The SafeDIMM and SafeSlot Core+ features provide added physical protection for components.
Features of Asus TUF GAMING B860M-PLUS WIFI
CPU Support: Designed for the latest Intel Core Ultra Processors (Series 2) with the LGA 1851 socket.
Memory: It features four DIMM slots, supporting a maximum of 256GB of DDR5 RAM. It can achieve overclocked memory speeds of up to 8800+ MT/s and supports Intel Extreme Memory Profile (XMP) and ASUS Enhanced Memory Profile III (AEMP III).
Power Design: A robust 12+1 power stage design with DrMOS and ProCool power connectors ensures stable and efficient power delivery to the CPU.
Storage: The motherboard provides a total of three M.2 slots, with the primary slot supporting the ultra-fast PCIe 5.0 x4 standard. The other two M.2 slots operate at PCIe 4.0 x4. It also includes four SATA 6Gb/s ports and supports Intel Rapid Storage Technology for RAID 0/1/5/10.
Expansion Slots: It has a PCIe 5.0 x16 slot for a high-end graphics card and a PCIe 4.0 x4 slot for additional expansion.
Networking: It's equipped with cutting-edge integrated Wi-Fi 7 (802.11be) and Bluetooth 5.4, along with a Realtek 2.5Gb Ethernet port for ultra-fast, low-latency wired and wireless networking.
USB Ports: The rear I/O panel includes a high-speed USB 20Gbps Type-C port with DisplayPort Alt mode, two USB 10Gbps Type-A ports, four USB 5Gbps ports, and a USB 2.0 port. There are also headers for front-panel USB ports, including a USB 10Gbps Type-C header.
TUF Protection: Built with military-grade components, including TUF chokes and capacitors, for long-term reliability. It also features TUF LANGuard, overvoltage protection, and a stainless-steel back I/O.
Cooling: A comprehensive thermal solution includes enlarged VRM and M.2 heatsinks to keep components cool under heavy loads.
ASUS Q-Design: Features like the M.2 Q-Latch for tool-free SSD installation, PCIe Slot Q-Release, and Q-LEDs for easy diagnostics simplify the PC building and maintenance process.
Aura Sync: Supports ASUS's Aura Sync for customizable and synchronized RGB lighting.
Audio: Equipped with a Realtek 7.1 Surround Sound audio codec, featuring premium capacitors and audio shielding for a high-quality audio experience.
