Intel Core Ultra Processors(Series 2), LGA1851,
Support Intel Core Ultra Processors (Series 2) , LGA1851,
Supports Intel Turbo Boost Technology 2.0 and Intel Turbo Boost Max Technology 3.0,
Chipset
Intel Z890 Chipset
Form Factor
ATX Form Factor
12 inch x 9.6 inch ( 30.5 cm x 24.4 cm )
Audio
Realtek ALC1220P 7.1 Surround Sound High Definition Audio CODEC*
- Impedance sense for front and rear headphone outputs
- Internal audio Amplifier to enhance the highest quality sound for headphone and speakers
- Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking
- High quality 120 dB SNR stereo playback output and 113 dB SNR recording input (Line-in)
- Supports up to 32-Bit/192 kHz playback*
Audio Features
- Audio Shielding
- Rear optical S/PDIF out port
- Premium audio capacitors
- Dedicated audio PCB layers
- Audio cover
- Unique de-pop circuit
* Due to limitations in HDA bandwidth, 32-Bit/192 kHz is not supported for 7.1 Surround Sound audio.
Expansion Slots
PCI
Intel Core Ultra Processors(Series 2)*
1 x PCIe 5.0 x16 slot
Intel Z890 Chipset
1 x PCIe 4.0 x16 slot (supports x4 mode)
1 x PCIe 4.0 x4 slot
2 x PCIe 4.0 x1 slots
Memory
Type
DDR5
Slots
4 x DIMM slots
Supported Memory
Support up to 9066+MT/s (OC), Non-ECC, Un-buffered ,Clocked Unbuffered DIMM (CUDIMM)*
Dual channel memory architecture
DIMM Fit
Supports Intel Extreme Memory Profile (XMP) memory module
ASUS Enhanced Memory Profile III(AEMPIII)
Maximum Memory
192GB
Graphics
Graphics
1 x DisplayPort
1 x HDMI port
2 x Intel Thunderbolt 4 ports (USB Type-C) support DisplayPort and Thunderbolt video outputs
* Graphics specifications may vary between CPU types
Connector & Ports
HDMI
1 x HDMI
Display Port (s)
1 x DisplayPort
2 x Intel Thunderbolt 4 ports (USB Type-C) support DisplayPort and Thunderbolt video outputs
USB

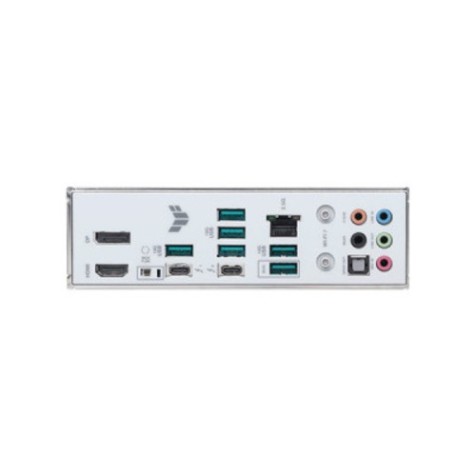

Rear USB (Total 8 ports)
2 x Thunderbolt 4 ports (2 x USB Type-C)
6 x USB 10Gbps ports (6 x Type-A)
Front USB (Total 7 ports)
1 x USB 20Gbps (supports USB Type-C with up to 30W PD/PPS Fast-charge )*
1 x USB 5Gbps header supports 2 additional USB 5Gbps ports
2 x USB 2.0 headers support 4 additional USB 2.0 ports
* USB Type-C power delivery output: 5V/9V max. 3A, 12V max 2.5A, 15V max. 2.0A
LAN Port
1 x Intel 2.5Gb Ethernet
TUF LANGuard
Supported Storage
4 x M.2 slots (Key M)
4 x SATA 6Gb/s ports
RAID
Intel Rapid Storage Technology supports PCIe RAID 0/1/5/10, SATA RAID 0/1/5/10, M.2 slot from CPU only support RAID 0/1/5.
Internal I/O Ports
Fan and Cooling Related
1 x 4-pin CPU Fan header
1 x 4-pin CPU OPT Fan header
1 x 4-pin AIO Pump header
4 x 4-pin Chassis Fan headers
Power Related
1 x 24-pin Main Power connector
2 x 8-pin +12V CPU Power connectors
Storage Related
4 x M.2 slots (Key M)
4 x SATA 6Gb/s ports
USB
1 x USB 20Gbps connector (supports USB Type-C)
1 x USB 5Gbps header supports 2 additional USB 5Gbps ports
2 x USB 2.0 headers support 4 additional USB 2.0 ports
Miscellaneous
3 x Addressable Gen 2 headers
1 x Clear CMOS header
1 x Chassis Intrusion header
1 x COM Port header
1 x Front Panel Audio header (F_AUDIO)
1 x 10-1 pin Front System Panel header
1 x Thermal Sensor header
1 x Thunderbolt (USB4) header
TPM (Trusted Platform Module )
Yes
Others
Special Features
ASUS TUF PROTECTION
- DIGI+ VRM (- Digital power design with DrMOS)
- ESD Guards
- TUF LANGuard
- Overvoltage protection
- SafeSlot
- Stainless-steel back I/O
ASUS Q-Design
- M.2 Q-Latch
- M.2 Q-Release
- M.2 Q-Slide
- Q-Release Slim (with PCIe SafeSlot)
- Q-Antenna
- Q-Dashboard
- Q-DIMM
- Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green])
- Q-Slot
ASUS Thermal Solution
- M.2 heatsink backplate
- M.2 heatsink
- VRM heatsink design
ASUS EZ DIY
- BIOS FlashBack™ button
- BIOS FlashBack™ LED
- CPU Socket lever protector
- ProCool
- Pre-mounted I/O shield
- SafeDIMM
Aura Sync
- Addressable Gen 2 headers
Front Panel USB 20Gbps with PD Fast Charge Support
- Support: up to 30W fast charging and USB Wattage Watcher
- Output: 5V/9V max. 3A, 12V max 2.5A, 15V max. 2.0A
- Compatible with PD3.0
Warranty Information
Manufacturing Warranty
3 Year Warranty

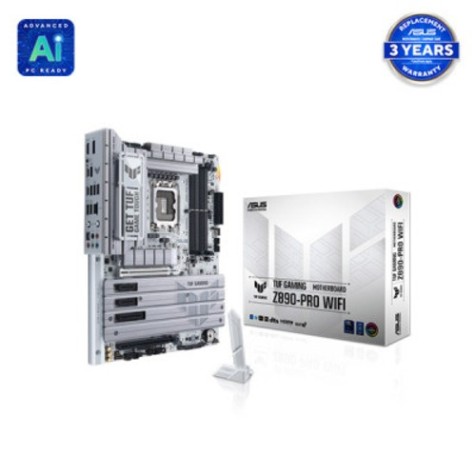

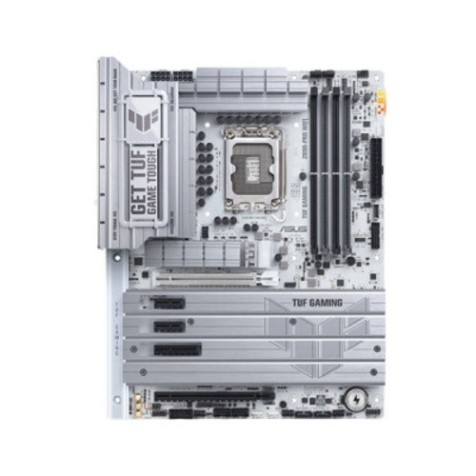

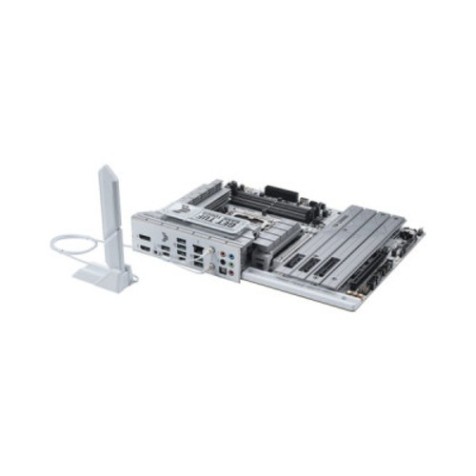

ASUS TUF GAMING Z890-PRO WIFI LGA 1851 ATX Gaming Motherboard
The ASUS TUF GAMING Z890-PRO WIFIis a powerful ATX gaming motherboard designed to be the robust and reliable backbone of your next-generation PC build. Engineered with the Intel Z890 chipset, it supports the latest Intel Core Ultra Processors (Series 2) on the LGA 1851 socket. This board is built for stability and performance, featuring a durable 16+1+2+1 power stage design that ensures clean and efficient power delivery, even for high-core-count CPUs under heavy loads. Connectivity is a major strength, with integrated Wi-Fi 7 for low-latency wireless gaming and a 2.5Gb Ethernet port for ultra-fast wired connections. It offers a comprehensive suite of ports, including dual Thunderbolt 4 ports (USB Type-C) on the rear I/O, a front USB 20Gbps header with fast charging, and a variety of other high-speed USB ports to connect all your peripherals. Storage is equally impressive, with support for four M.2 SSDs, one of which is a blazing-fast PCIe 5.0 x4 slot, and four SATA 6Gb/s ports for traditional drives. For cooling, the motherboard features enlarged VRM heatsinks, a multi-layered PCB, and AI Cooling II to intelligently manage fan speeds and maintain optimal temperatures. It also includes several DIY-friendly features like M.2 Q-Latch and a BIOS FlashBack button to simplify the building and upgrading process. The TUF GAMING Z890-PRO WIFI is the perfect blend of high-end performance, extensive connectivity, and military-grade durability for a future-proof gaming machine.
Features of ASUS TUF GAMING Z890-PRO WIFI
Socket and Chipset: Built on the Intel Z890 chipset, it supports the latest Intel Core Ultra Processors (Series 2) with the LGA 1851 socket.
Power Design: A robust 16+1+2+1 DrMOS power stage design with 80A power stages ensures reliable and efficient power delivery for overclocking and demanding workloads.
Memory: It has four DIMM slots that support dual-channel DDR5 memory, with a maximum capacity of 192GB and overclocked speeds up to 9066+ MT/s. It also supports Intel's XMP and ASUS's AEMP III for easy memory optimization.
AI Intelligence: The motherboard incorporates ASUS's AI features, including AI Overclocking, AI Cooling II, and AI Networking II, which help to automatically optimize performance, thermals, and network connectivity.
PCIe 5.0: It includes one PCIe 5.0 x16 slot for the latest high-performance graphics cards, ensuring future compatibility.
M.2 Slots: Four M.2 slots for high-speed NVMe SSDs, with one supporting the lightning-fast PCIe 5.0 standard (up to 128 Gbps). All slots support NVMe RAID configurations.
SATA: Four SATA 6Gb/s ports are also available for traditional hard drives and SSDs.
Wireless: Features the latest Wi-Fi 7 (802.11be) for ultra-fast wireless connections and Bluetooth v5.4.
Wired: An integrated Intel 2.5Gb Ethernet port with TUF LANGuard provides a stable and high-speed wired connection.
USB: The board has a comprehensive set of USB ports, including two Thunderbolt 4 (USB Type-C) ports on the rear I/O, a front USB 20Gbps (USB Type-C) header with up to 30W PD/PPS fast charging, and multiple 10Gbps and 5Gbps ports.
DIY-Friendly: ASUS has included several features to make building and upgrading easier, such as the M.2 Q-Latch for toolless SSD installation, PCIe Slot Q-Release, and a BIOS FlashBack button for updating the BIOS without a CPU.
Audio: A high-quality Realtek ALC1220P 7.1 Surround Sound audio codec provides an immersive audio experience with features like audio shielding and premium capacitors.
Aesthetics: The motherboard features a sleek design with Aura Sync for customizable RGB lighting.
