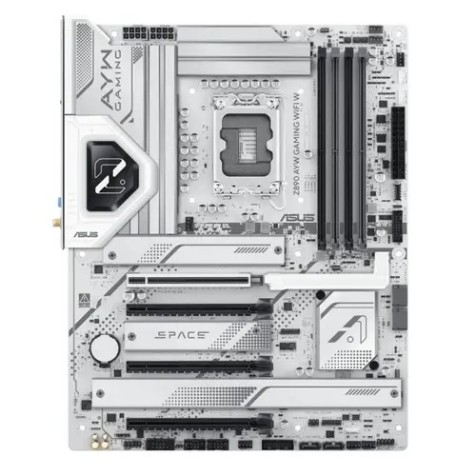

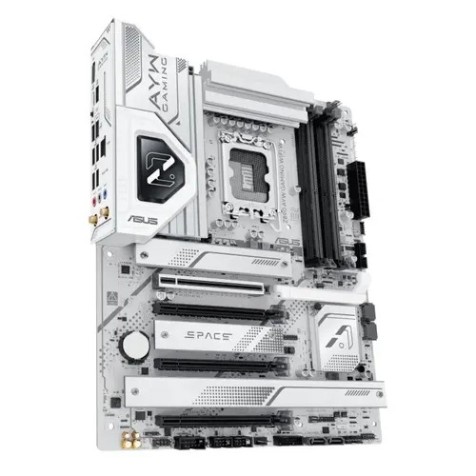

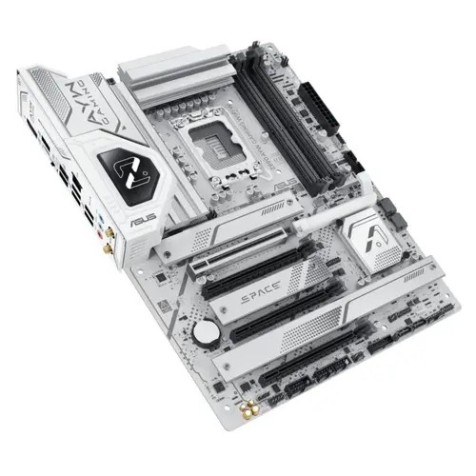

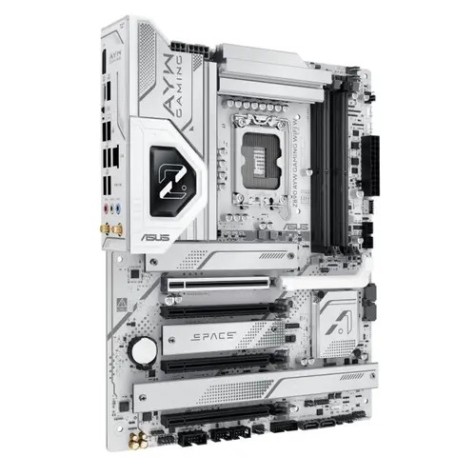

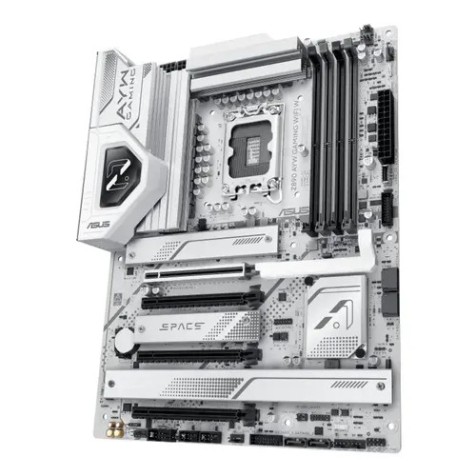

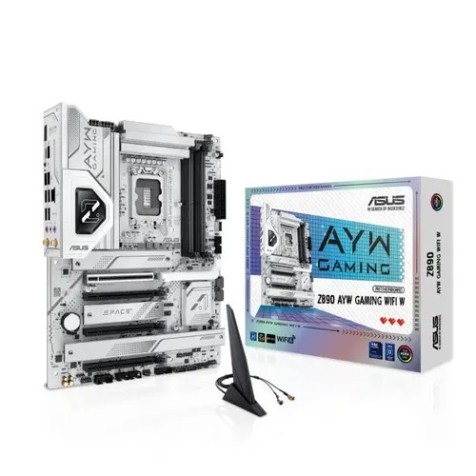

ASUS Z890 AYW GAMING WIFI W LGA 1851 ATX Motherboard

ASUS Z890 AYW GAMING WIFI W LGA 1851 ATX Motherboard

The ASUS Z890 AYW GAMING WIFI W is an ATX motherboard designed to serve as a powerful and aesthetically pleasing foundation for next-generation gaming PCs. It is built on the advanced Intel Z890 chipset and is specifically engineered to support the latest Intel Core Ultra Processors (Series 2) on the new LGA 1851 socket. The "W" in the model name signifies its distinctive white color scheme, offering a clean and modern look for builders aiming for a white-themed PC. This motherboard is packed with cutting-edge technology to deliver top-tier performance. It supports DDR5 memory, with four DIMM slots allowing for up to 192GB of RAM and overclocked speeds reaching beyond 8666 MT/s. For storage, it provides a primary PCIe 5.0 x4 M.2 slot for the fastest available SSDs, along with two additional PCIe 4.0 x4 M.2 slots and four SATA 6Gb/s ports for versatile storage configurations. Connectivity is a major highlight, with integrated Wi-Fi 7 and Bluetooth 5.4 for ultra-fast, low-latency wireless networking. It also features a Realtek 2.5Gb Ethernet port. The rear I/O is well-equipped with a versatile USB 20Gbps Type-C port with DisplayPort Alt mode, and numerous other high-speed USB ports. The Z890 AYW GAMING WIFI W features a comprehensive cooling solution with large VRM and M.2 heatsinks, ensuring stable performance under heavy loads. The board's aesthetics are centered around its all-white PCB, heatsinks, and accents. It also supports Aura Sync RGB lighting, allowing users to customize and synchronize lighting effects across compatible components. The board includes user-friendly features like M.2 Q-Latch and a pre-mounted I/O shield to simplify the building process.

Features of ASUS Z890 AYW GAMING WIFI W

• CPU Support: Engineered to support the latest Intel Core Ultra Processors (Series 2) with the new LGA 1851 socket.
• Memory: It features four DIMM slots, supporting a maximum of 192GB of DDR5 RAM. It can achieve overclocked memory speeds of up to 8666+ MT/s and supports Intel XMP.
• Power Design: A robust power solution with 10+1+2+1 power stages (rated for 80A) ensures stable and efficient power delivery to the CPU.
• Storage: The motherboard offers three M.2 slots. The primary M.2 slot supports the ultra-fast PCIe 5.0 x4 standard, while the other two are PCIe 4.0 x4. It also includes six SATA 6Gb/s ports for extensive storage options.
• Expansion Slots: It has a PCIe 5.0 x16 slot for a high-end graphics card, a PCIe 4.0 x16 slot (operates at x4 mode), and one PCIe 4.0 x1 slot.

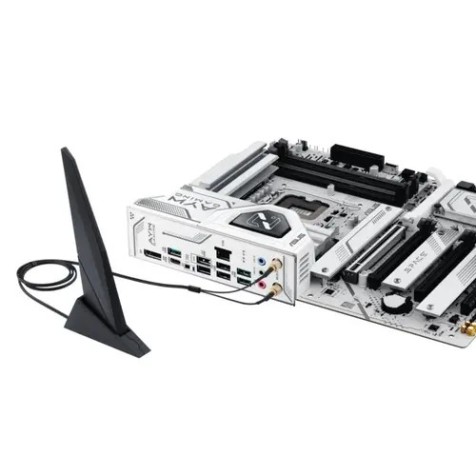

• Networking: It is equipped with integrated Wi-Fi 7 (802.11be) and Bluetooth 5.4, offering blazing-fast, low-latency wireless connections. It also has a Realtek 2.5Gb Ethernet port for high-speed wired networking.

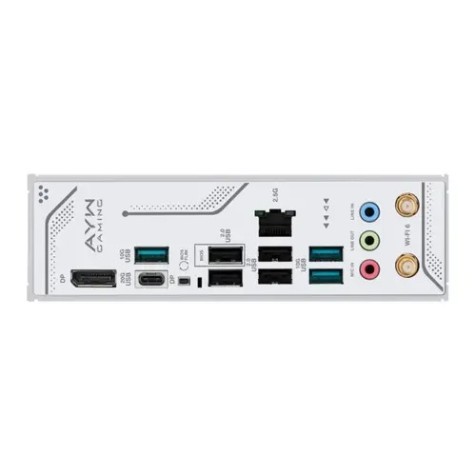

• USB Ports: The rear I/O panel includes a versatile USB 20Gbps Type-C port with DisplayPort Alt mode, as well as multiple USB 10Gbps Type-A and USB 5Gbps ports.
• Aesthetics: The "W" in the model name indicates its all-white color scheme, including a white PCB, heatsinks, and accents, making it perfect for white-themed PC builds.
• Cooling: A comprehensive thermal solution includes large VRM and M.2 heatsinks to maintain optimal temperatures under load.
• ASUS Q-Design: Features like the M.2 Q-Latch for tool-free SSD installation, a pre-mounted I/O shield, and Q-LEDs for easy diagnostics simplify the building process.
• Aura Sync: Supports ASUS Aura Sync for customizable and synchronized RGB lighting.
• TPM: Includes a dedicated SPI TPM header for hardware-based security.
