Support Intel Core Ultra Processors (Series 2)
Supports Intel Turbo Boost Technology 2.0 and Intel Turbo Boost Max Technology 3.0
Chipset
Intel Z890 Chipset
Form Factor
ATX Form Factor
12 inch x 9.6 inch ( 30.5 cm x 24.4 cm )
Audio
ROG SupremeFX 7.1 Surround Sound High Definition Audio CODEC ALC4080
- Impedance sense for front and rear headphone outputs
- Supports: Jack-detection, Multi-streaming, Front Panel MIC Jack-retasking
- High quality 120 dB SNR stereo playback output and 110 dB SNR recording input
- Supports up to 32-Bit/384 kHz playback on front panel
Audio Features
- SupremeFX Shielding Technology
- Savitech SV3H712 AMP
- Rear optical S/PDIF out port
- Premium audio capacitors
- Audio cover
Support up to 9066+MT/s (OC), Non-ECC, Un-buffered ,Clocked Unbuffered DIMM (CUDIMM)*
Dual channel memory architecture
Supports Intel® Extreme Memory Profile (XMP) memory module
Supports DIMM Flex
Supports DIMM FIT
ASUS Enhanced Memory Profile III (AEMPIII)
Maximum Memory
256GB
Graphics
Graphics
1 x DisplayPort
1 x HDMI port
2 x Intel Thunderbolt 4 support DisplayPort and Thunderbolt video outputs
* Supports max. 8K@60Hz as specified in DisplayPort 1.4.
** Supports 4K@60Hz as specified in HDMI 2.1.
*** In Thunderbolt™ 4 mode, supports up to 8K@60Hz x1 with DSC or 4K@60Hz x 2, maximum total bandwidth up to 23.8Gbps or 16Gbps/16Gbps, for resolution support please check DisplayPort 2.1 specs. In DP alt mode, supports up to UHBR20.
Connector & Ports
HDMI
1 x HDMI
Display Port (s)
1 x DisplayPort
2 x Intel Thunderbolt 4 support DisplayPort and Thunderbolt™ video outputs
USB
Rear USB (Total 10 ports)
2 x Thunderbolt 4 ports (2 x USB Type-C®)
6 x USB 10Gbps ports (5 x Type-A + 1 x USB Type-C®with up to 30W PD/PPS Fast-charge)
2 x USB 5Gbps ports (2 x Type-A)
Front USB (Total 7 ports)
1 x USB 20Gbps connector (supports USB Type-C)
1 x USB 5Gbps header supports 2 additional USB 5Gbps ports
2 x USB 2.0 headers support 4 additional USB 2.0 ports
USB Type-C power delivery output: max. 5V/3A
USB Type-C power delivery output: 5V/9V max. 3A, 12V max 2.5A, 15V max. 2.0A
LAN Port
1 x Intel 2.5Gb Ethernet
ASUS LANGuard
Supported Storage
Total Supports 5 x M.2 slots and 4 x SATA 6Gb/s ports
Intel® Core™ Ultra Processors (Series 2)*
M.2_1 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 5.0 x4 mode)
M.2_2 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode)
Intel® Z890 Chipset
M.2_3 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode)
M.2_4 slot (Key M), type 2280/22110 (supports PCIe 4.0 x4 mode)
M.2_5 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 & SATA modes)
4 x SATA 6Gb/s ports
RAID
Intel Rapid Storage Technology supports PCIe RAID 0/1/5/10, SATA RAID 0/1/5/10, M.2 slot from CPU only supports RAID 0/1/5.
Internal I/O Ports

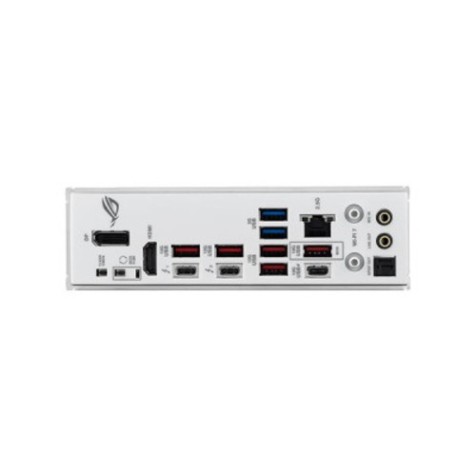

Back Panel I/O Ports
2 x Thunderbolt 4 ports (2 x USB Type-C®)
6 x USB 10Gbps ports (5 x Type-A + 1 x USB Type-C®with up to 30W PD/PPD Fast-charge)
2 x USB 5Gbps ports (2 x Type-A)
1 x DisplayPort
1 x HDMI™ port
1 x Wi-Fi module
1 x Intel® 2.5Gb Ethernet port
2 x Audio jacks
1 x Optical S/PDIF out port
1 x BIOS FlashBack™ button
1 x Clear CMOS button
Internal I/O Connectors
Fan and Cooling Related
1 x 4-pin CPU Fan header
1 x 4-pin CPU OPT Fan header
1 x 4-pin AIO Pump header
5 x 4-pin Chassis Fan headers
Power Related
1 x 24-pin Main Power connector
2 x 8-pin +12V CPU Power connectors
Storage Related
5 x M.2 slots (Key M)
4 x SATA 6Gb/s ports
USB
1 x USB 20Gbps connector (supports USB Type-C® )
1 x USB 5Gbps header supports 2 additional USB 5Gbps ports
2 x USB 2.0 headers support 4 additional USB 2.0 ports
Miscellaneous
3 x Addressable Gen 2 headers
1 x Chassis Intrusion header
1 x CPU Over voltage jumper
1 x Front Panel Audio header (F_AUDIO)
1 x Start button
1 x 10-1 pin Front System Panel header
1 x Thermal Sensor header
1 x Thunderbolt™ (USB4®) header
TPM (Trusted Platform Module )
Yes
Others
Special Features
Extreme Engine Digi+
- 5K Black metallic capacitors
ASUS Q-Design
- M.2 Q-Latch
- M.2 Q-Release
- M.2 Q-Slide
- PCIe Slot Q-Release Slim (with PCIe SafeSlot)
- Q-Antenna
- Q-Dashboard
- Q-DIMM- Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green])
- Q-SlotASUS
Thermal Solution
- M.2 heatsink backplate
- M.2 heatsink
ASUS EZ DIY
- BIOS FlashBack™ button
- BIOS FlashBack™ LED
- Clear CMOS button
- CPU Socket lever protector
- ProCool II
- Pre-mounted I/O shield
- SafeSlot
- SafeDIMM
Aura Sync
- Addressable Gen 2 headers
Warranty Information
Manufacturing Warranty
3 Years

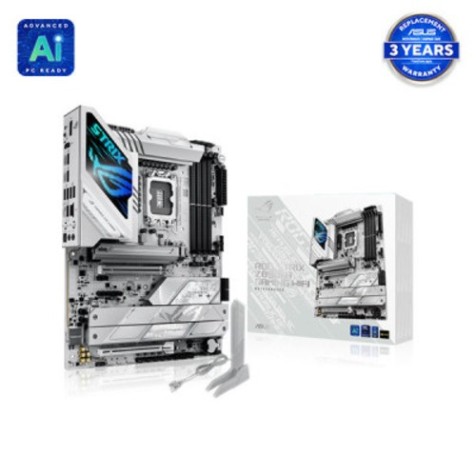

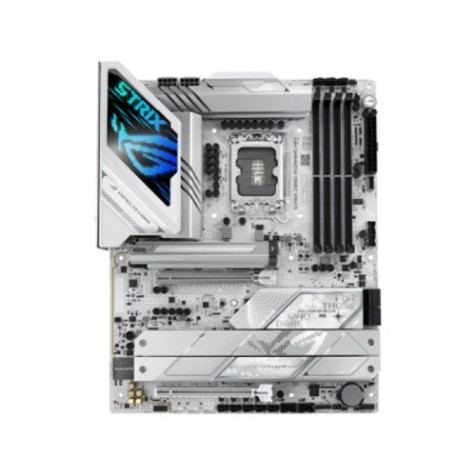

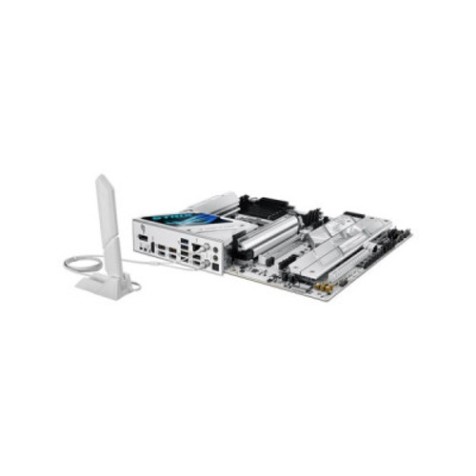

ASUS ROG STRIX Z890-A GAMING WIFI LGA 1851 ATX Motherboard
The ASUS ROG STRIX Z890-A GAMING WIFIis a high-performance ATX motherboard designed to be a stylish and powerful foundation for your next gaming PC. This board, with its striking white aesthetic, is a standout in the ROG lineup. It is built around the Intel Z890 chipset and features the new LGA 1851 socket, providing full support for the latest Intel Core Ultra Processors (Series 2). The Z890-A is engineered to handle intense workloads and gaming sessions with ease. It features a robust power solution with a 16+1+2+2 power stage design (rated at 80 amps each), ensuring stable power delivery to the CPU for optimal performance and overclocking stability. For memory, it supports DDR5, with four DIMM slots allowing for a massive 256GB of RAM at speeds of 9066+ MT/s. The board is also equipped with comprehensive cooling, including multiple M.2 heatsinks and a large VRM heatsink array, to maintain low temperatures. Connectivity is a key strength, with integrated Wi-Fi 7 and a Realtek 5Gb Ethernet port for fast and reliable networking. Storage options are plentiful, with four M.2 slots (one PCIe 5.0 x4) and four SATA 6Gb/s ports. The rear I/O panel is packed with ports, including two USB 20Gbps (Type-C) and a variety of other high-speed USB options. The board also features DIY-friendly design elements like the M.2 Q-Latch and a pre-mounted I/O shield, making installation a breeze. The ROG STRIX Z890-A is the perfect blend of high-end performance, extensive features, and a clean, visually appealing design.
Features of ASUS ROG STRIX Z890-A GAMING WIFI
Processor and Chipset: It is built on the Intel Z890 chipset with the LGA 1851 socket, supporting the latest Intel Core Ultra Processors (Series 2).
Memory: Four DDR5 DIMM slots support up to 256GB of dual-channel RAM with overclocked speeds of 9066+ MT/s. It includes ASUS's AEMP III and DIMM Flex technologies for enhanced memory performance and stability.
Power Solution: A robust 16+1+2+2 power stage design, with each stage rated at 80 amps, ensures stable power delivery for demanding workloads and overclocking.
Cooling: Features an extensive cooling system with a VRM heatsink array, an M.2 heatsink array for all four M.2 slots, and a multi-layered PCB for efficient heat dissipation.
AI Cooling II: This technology intelligently manages fan speeds to maintain optimal temperatures while minimizing noise.
M.2 Slots: It has a total of five M.2 slots, including one PCIe 5.0 x4 slot for next-gen NVMe SSDs and four PCIe 4.0 x4 slots. One of the PCIe 4.0 slots also supports SATA mode.
PCIe Slots: One PCIe 5.0 x16 SafeSlot for the latest graphics cards and an additional PCIe 4.0 x16 slot.
SATA: Four SATA 6Gb/s ports are available for traditional storage.
Wireless: Features integrated Wi-Fi 7 (802.11be) with a 2x2 antenna setup for high-speed, low-latency wireless networking.
Wired: A Realtek 5Gb Ethernet port provides a fast and stable wired connection.
USB: The board has a comprehensive array of USB ports, including two rear Thunderbolt 4 (USB Type-C) ports and a front-panel USB 20Gbps (Type-C) header with fast charging capabilities.
M.2 Q-Latch: Allows for toolless installation and removal of M.2 SSDs.
Pre-mounted I/O Shield: Simplifies the installation process.
BIOS FlashBack™ button: Lets you update the BIOS without a CPU or memory installed.
Audio Codec: Features the ROG SupremeFX 7.1 Surround Sound audio codec (ALC4080) with a Savitech SV3H712 amp, providing a high-quality audio experience for gaming and entertainment.
